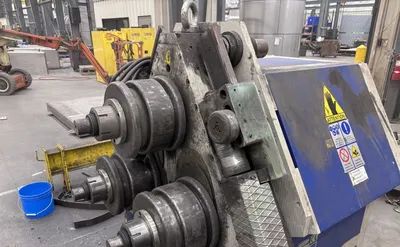

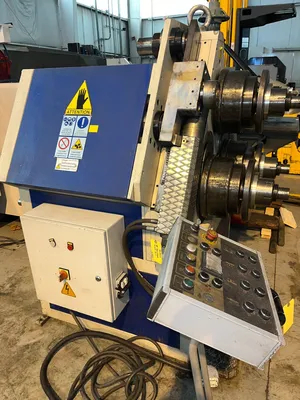

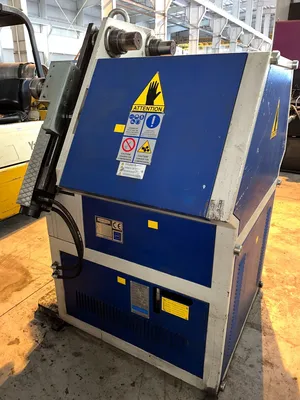

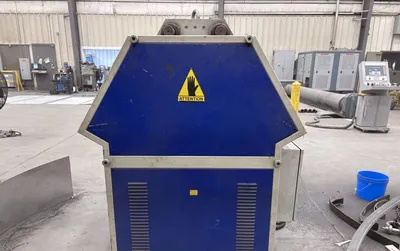

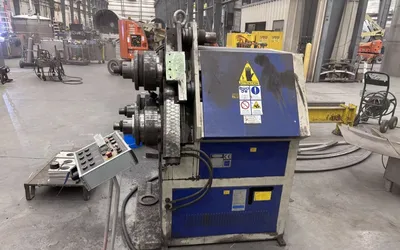

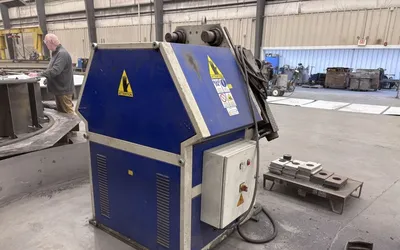

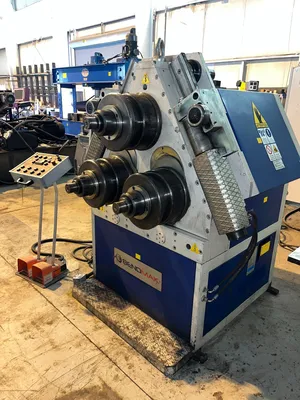

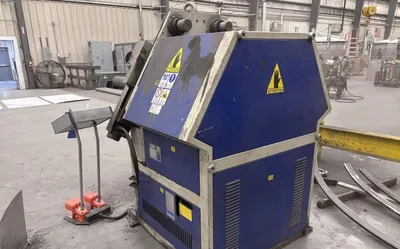

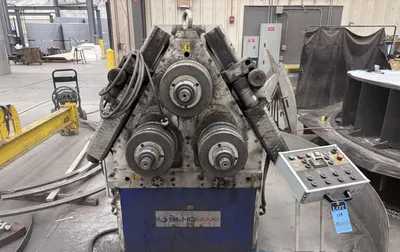

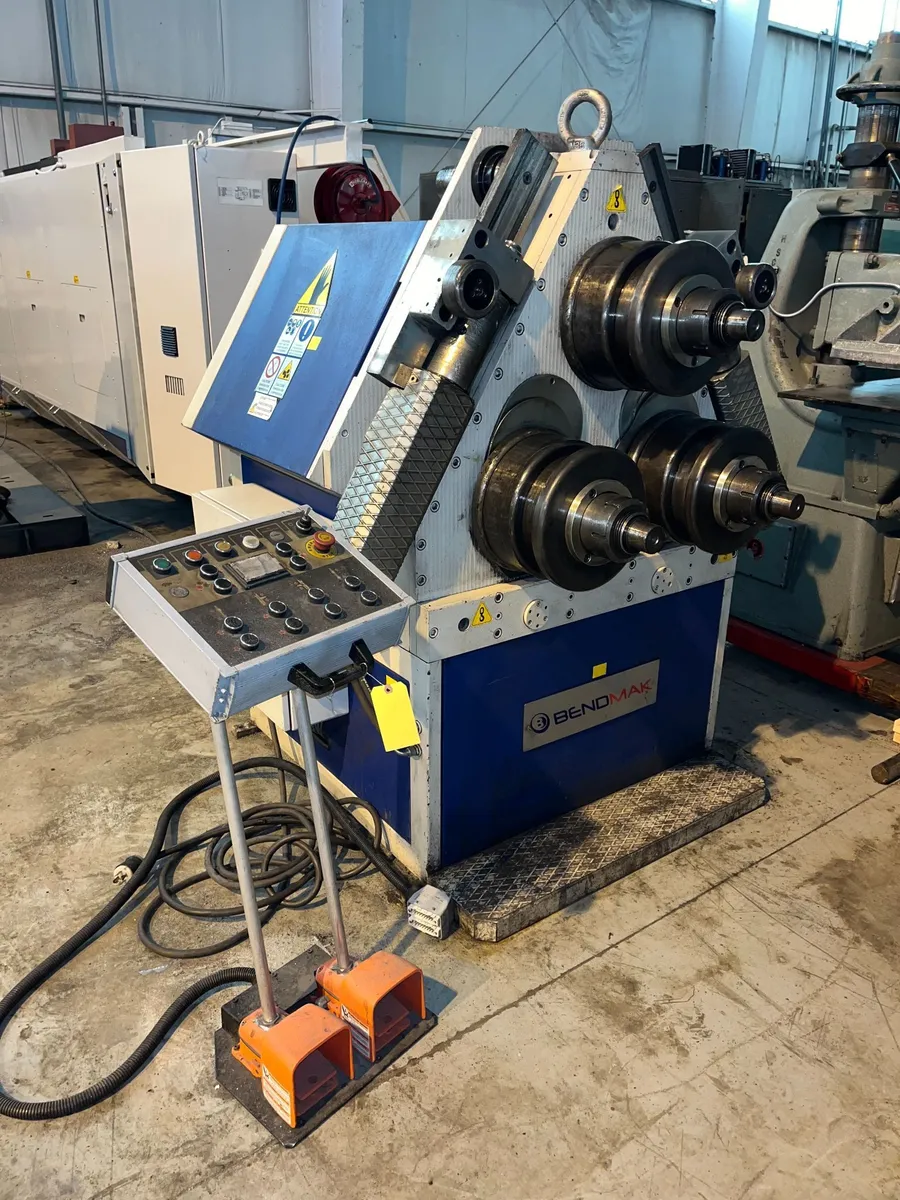

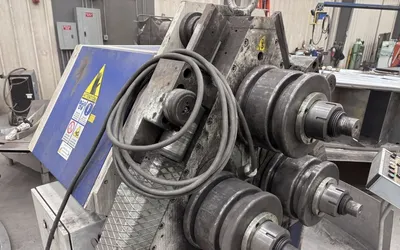

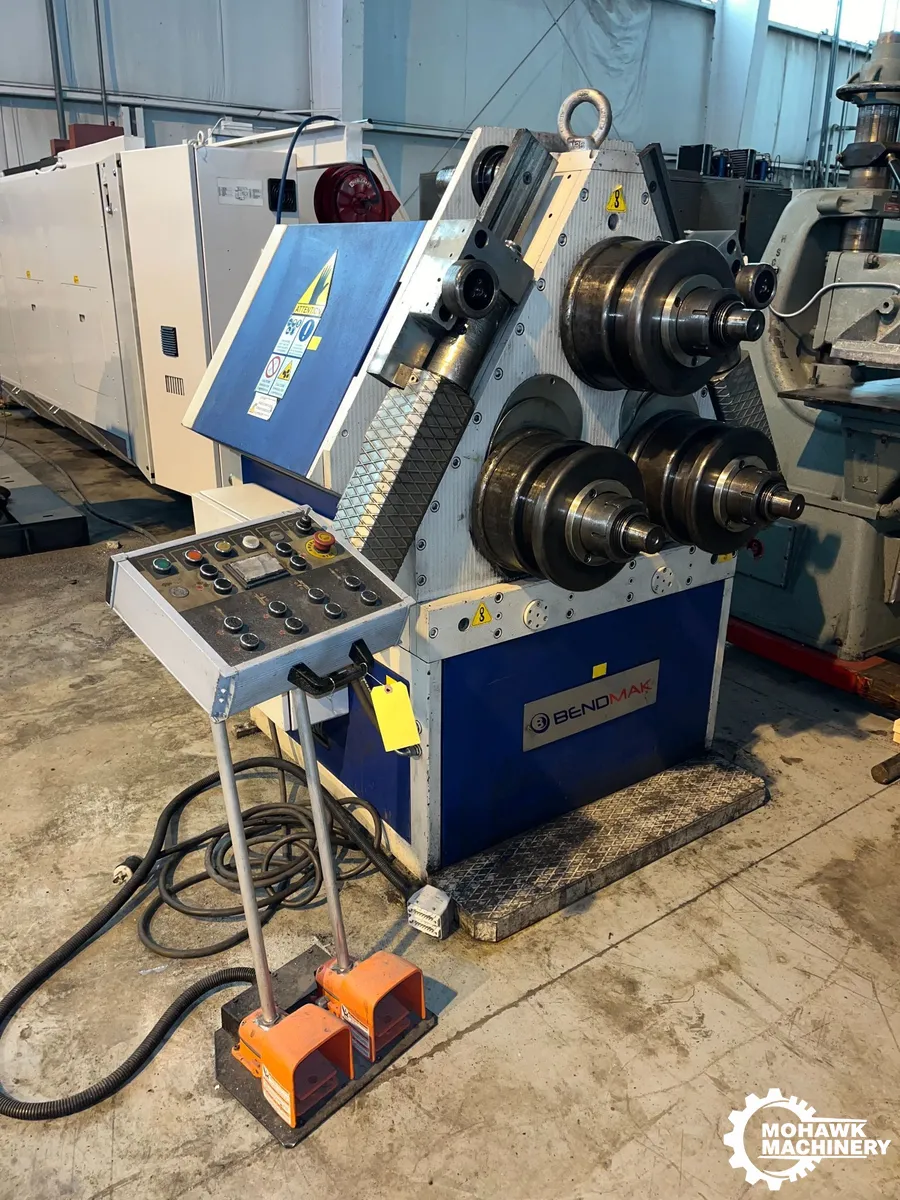

4” x 4” x 3/8” BENDMAK “PRO 100” HORIZONTAL/VERTICAL HYDRAULIC ANGLE BENDING ROLL

4" x 4" x 3/8" BENDMAK HORIZONTAL/VERTICAL
ANGLE AND PROFILE BENDING
New 2012, Serial No PRO100117, Model PRO 100

EQUIPPED WITH:
All Three Rolls Driven

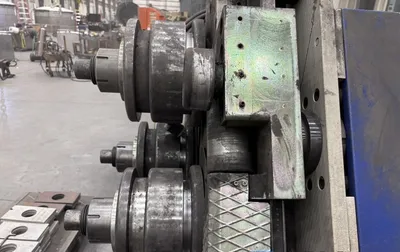

Hydraulically Adjustable Side Guide Rolls
Hydraulic Motor Planetary Gearbox And Gears
(2) Lower Rolls Hydraulically Adjustable
Vertical Or Horizontal Rolling Operation

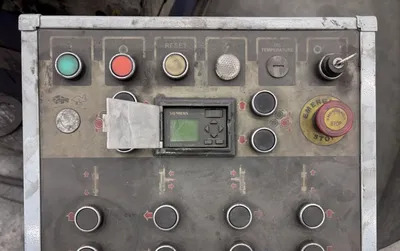

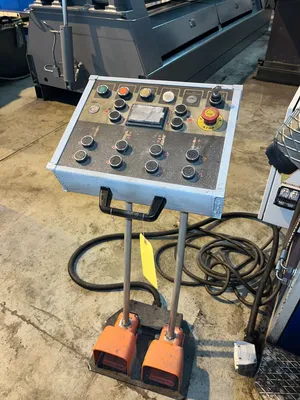

Movable Type Operator's Console
(1) Set Of Angle Rolls

CATALOG SPECIFICATIONS:
Angle Leg In, 63" Minimum 4" x 4" x 3/8"
Angle Leg In, 47” Minimum 3” x 3” x 5/16”
Angle Leg In, 32” Minimum 2” x 2” x 1/4”
Angle Leg Out, 55” Minimum 4" x 4" x 3/8"
Angle Leg Out, 40” Minimum 3-1/2” x 3-1/2” x 5/16”
Angle Leg Out, 28” Minimum 2” x 2” x 1/4”
Flat Bending Hard, 63" Minimum 4" x 1"
Flat Bending Hard, 24” Minimum 4” x 13/16”
Flat Bending Hard, 16” Minimum 1-1/2” x 3/8”
Flat Bending Easy, 40" Minimum 7-1/2" x 1-3/8"
Flat Bending Easy, 24” Minimum 4” x 1-9/16”
Flat Bending Easy, 16” Minimum 2” x 3/8”
Square Bar, 40" Minimum 2-3/8"
Square Bar, 16” Minimum 1”
Pipe Schedule 40, 63” Minimum 4”
Pipe Schedule 40, 16” Minimum 2"
Round Bar, 32” Minimum 2-3/4”
Round Bar, 16” Minimum 1-1/2"
Round Tubing, 118” Minimum 5-1/2” x 0.118”
Round Tubing, 24” Minimum 2" x 0.79”
Square Tubing, 157” Minimum 4” x 0.196”
Square Tubing, 20” Minimum 2" x 0.100”
Rectangular Tubing, 157” Minimum 5-1/2” x 1-1/2” x 0.125”
I-Beam Hard, S5 x 14.75”"
Rolling Speed 18 FPM
Roll Diameters 12.4"
Shaft Diameters 3.94"
Motor, Horsepower 15 HP
Weight, Approximately 4940 LBS

F.O.B. OUR WAREOUSE
