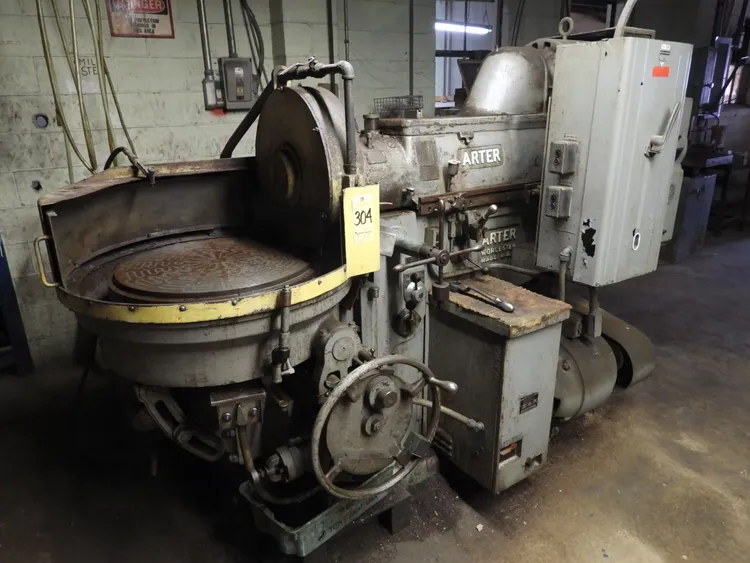

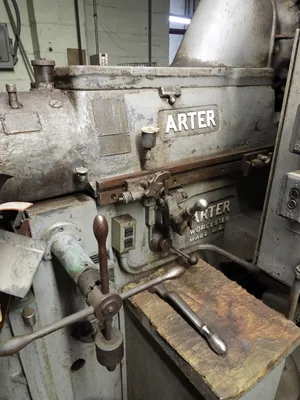

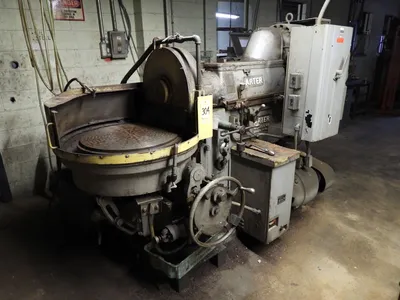

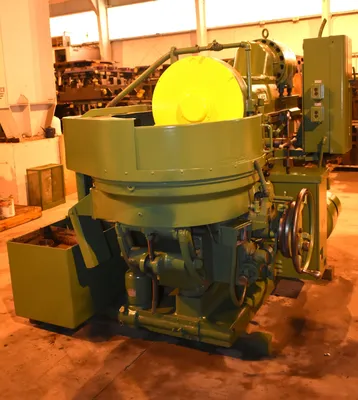

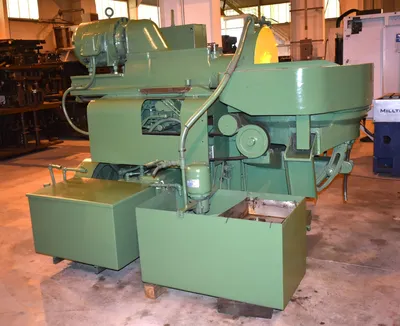

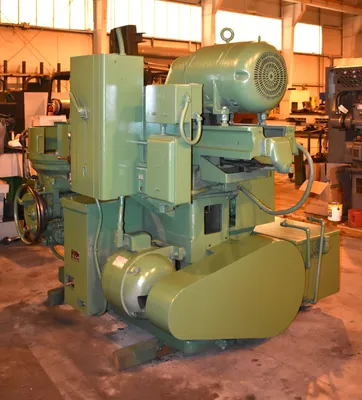

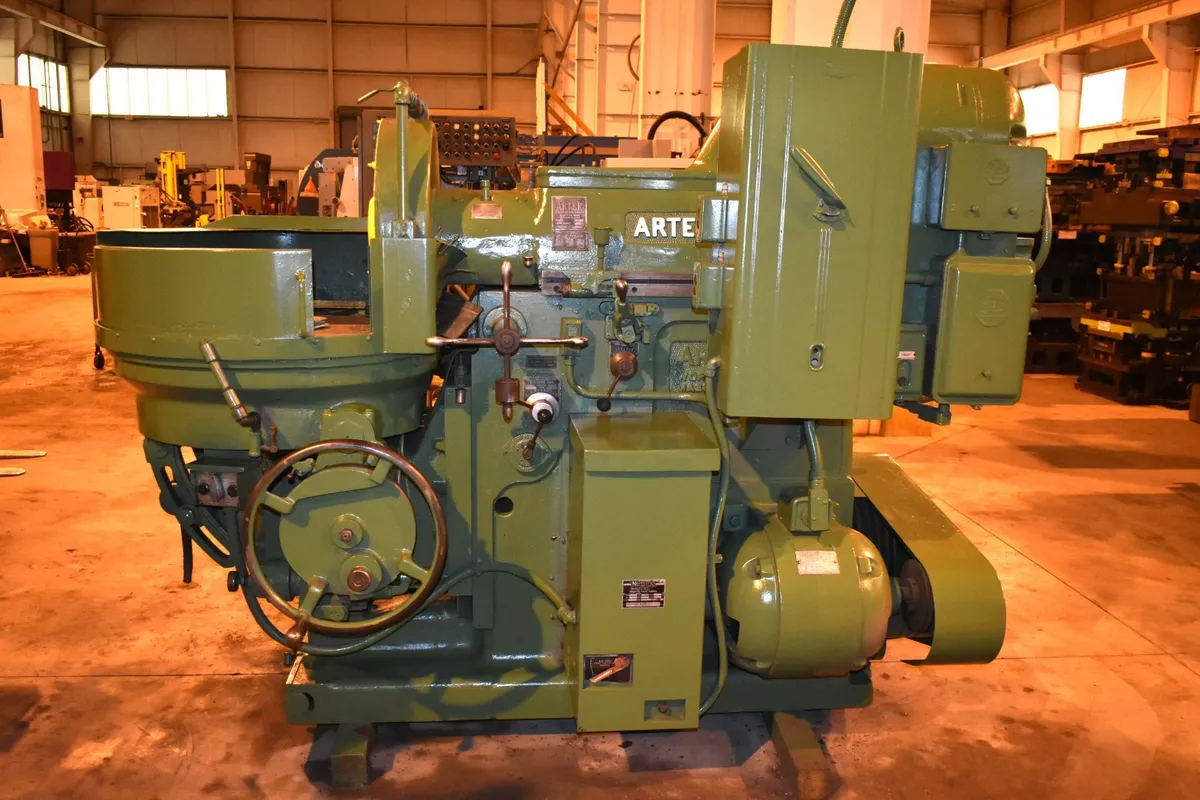

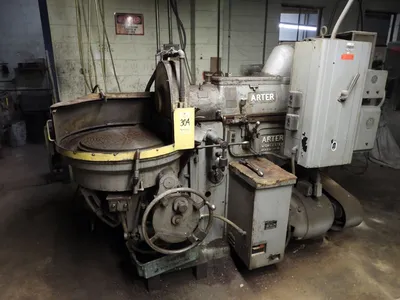

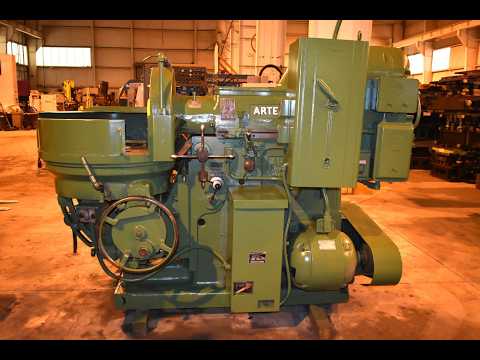

24” ARTER “B-24” HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER

24" ARTER HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Serial No , Model B24

EQUIPPED WITH:
Horizontal-Spindle Machine Design

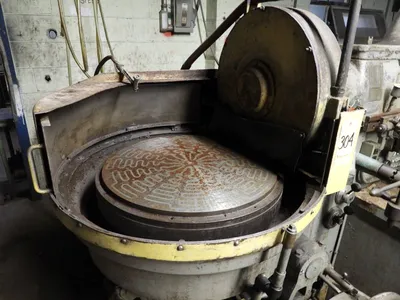

25" Diameter Electro-Magnetic Chuck
w/Rectifier & Neutrol
Ram-Mounted Grinding Motor Drive

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 25"
Swing With-in Coolant Guards 30"
Grinding Height Capacity w/Full Wheel 8"
Grinding Wheel Diameter, Standard 20"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 12"
Convex Table Angle Degrees, Maximum 10-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Grinding Wheel Speeds, Maximum 950 RPM
Spindle Motor, Horsepower/RPM 10 HP/1750 RPM
Hydraulic Motor, Horsepower/RPM 7.5 HP/1150 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 8'0" x 7'3"
Weight, Approximately 9500 LBS

F.O.B. ON WAY IN
