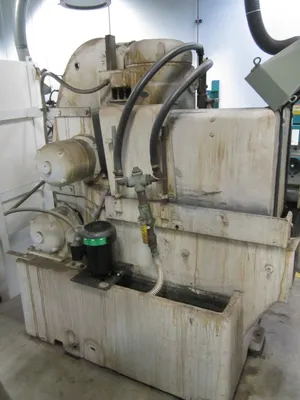

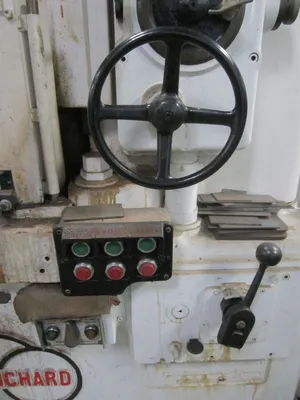

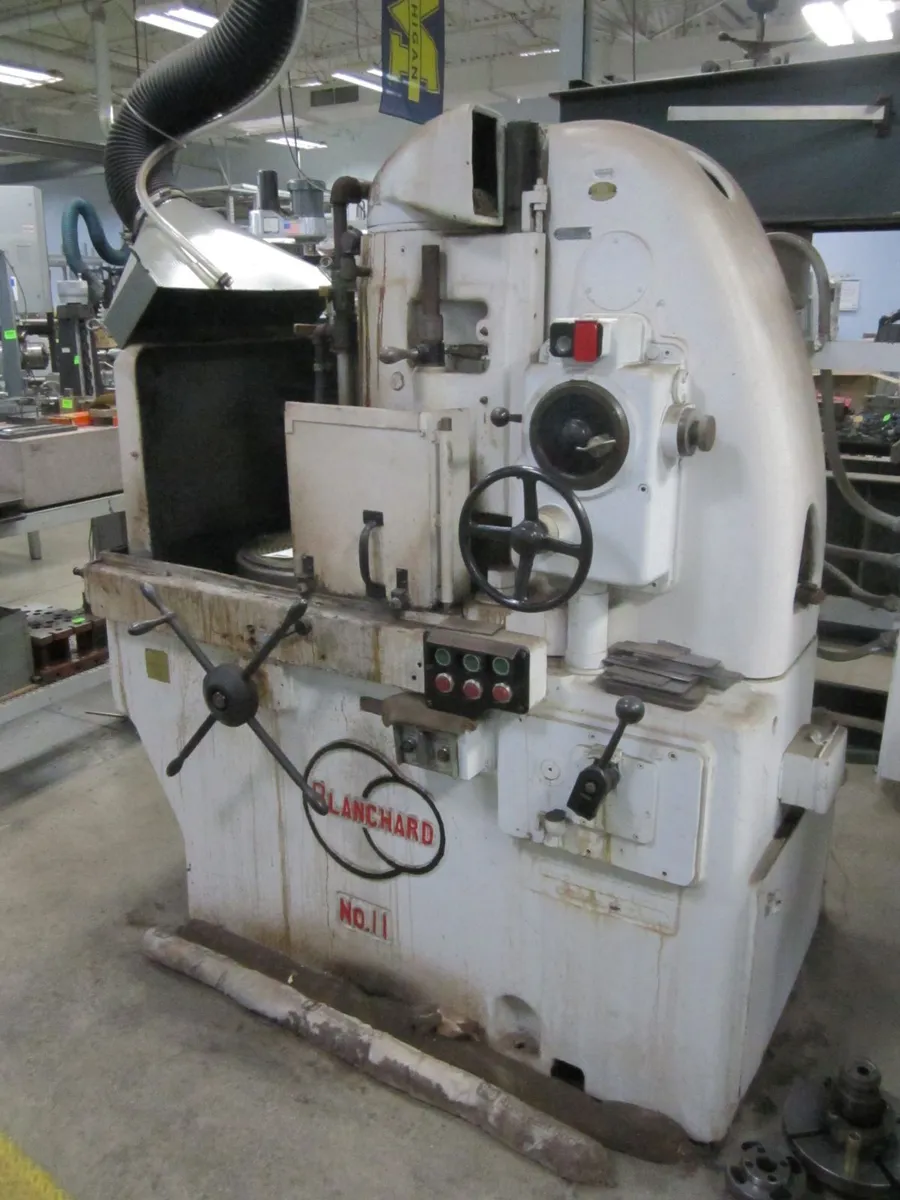

16" BLANCHARD "11-16" VERTICAL-SPINDLE ROTARY SURFACE GRINDER

16" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 53567, Model 11-16

EQUIPPED WITH:
Vertical-Spindle Machine Design
16" Diameter Magnetic Chuck w/Neutrol
Cylindrical Grinding Wheel
Percentage Load Meter
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 16"
Swing Between Coolant-Guards 20"
Height Under Grinding Wheel, Maximum 8"
Grinding Wheel Diameter, Standard 11"
Grinding Wheel Width, Standard 5"
Grinding Wheel Hole Diameter 9"
Grinding Wheel Speed, Maximum 1200 RPM
(4) Chuck Speeds, Range 15 to 64 RPM
Power Down Feeds, Range .003 to .070 IPM
Spindle Motor, Horsepower/RPM 15 HP/1155 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'3" x 3'6"
Overall Height 6'9"
Weight, Approximately 5475 LBS

F.O.B. OUR WAREHOUSE
