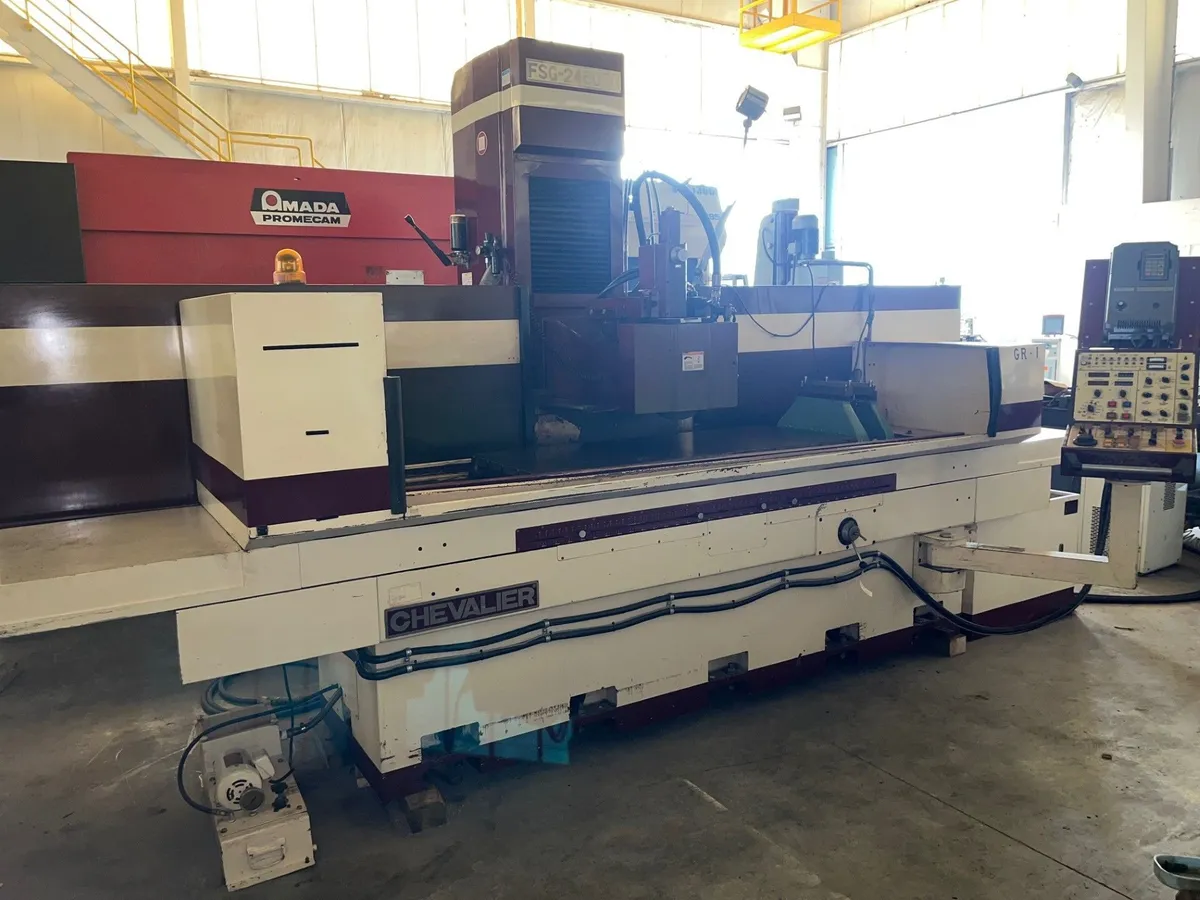

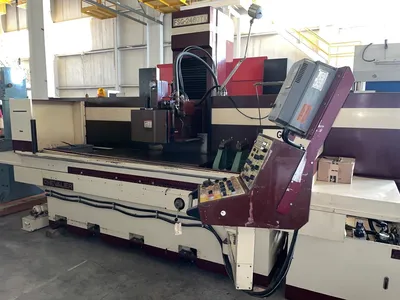

24" x 60" CHEVALIER "FSG-2460TX" COLUMN-TYPE PRECISION AUTOMATIC 3-AXIS HORIZONTAL-SPINDLE SURFACE GRINDER

24" x 60" CHEVALIER COLUMN TYPE PRECISION AUTOMATIC HYDRAULIC-FEED 3-AXIS HORIZONTAL SPINDLE SURFACE GRINDER
Serial No J4819002, Model FSG-2460TX

EQUIPPED WITH:

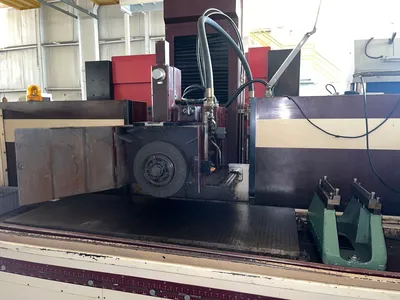

Programmable Over-The-Wheel Dresser Attachment
24" x 60" Electro-Magnetic Chuck
Automatic Incremental Power Down Feed
Automatic Lubrication System

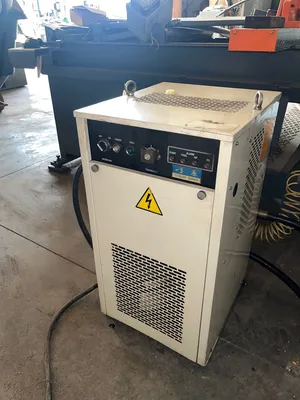

Coolant System w/Paper Filter

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 24" x 60"
Grinding Width Capacity, Maximum 24"
Grinding Length Capacity, Maximum 60"
Table Load Capacity, Maximum 3960 LBS
Height Table to Spindle Center, Maximum 33.46"
Longitudinal Table Travel, Maximum 60"
Crossfeed Table Travel, Maximum 24"
Grinding Wheel Diameter, Maximum 16"
Grinding Wheel Width, Maximum 3"
Grinding Wheel Hole Diameter 5"
Table Longitudinal Feeds, Range 16 to 82 FPM
Incremental Downfeed Automatic, Range .0001" to .002"
Cross Movement Automatic Increment, Range .125" to 2"
Spindle Motor Horsepower 15 HP
Hydraulic Motor Horsepower 5 HP
Floor Space Required, L x W 255" x 134"
Overall Height 108"
Weight Approximately 18000 LBS
F.O.B. OUR WAREHOUSE
