6.5” SUNNEN “MBB-1660” PRECISION HORIZONTAL HONE - Tooling
Have one to sell?
ConditionUsed
1 available
$4,950.00 USD

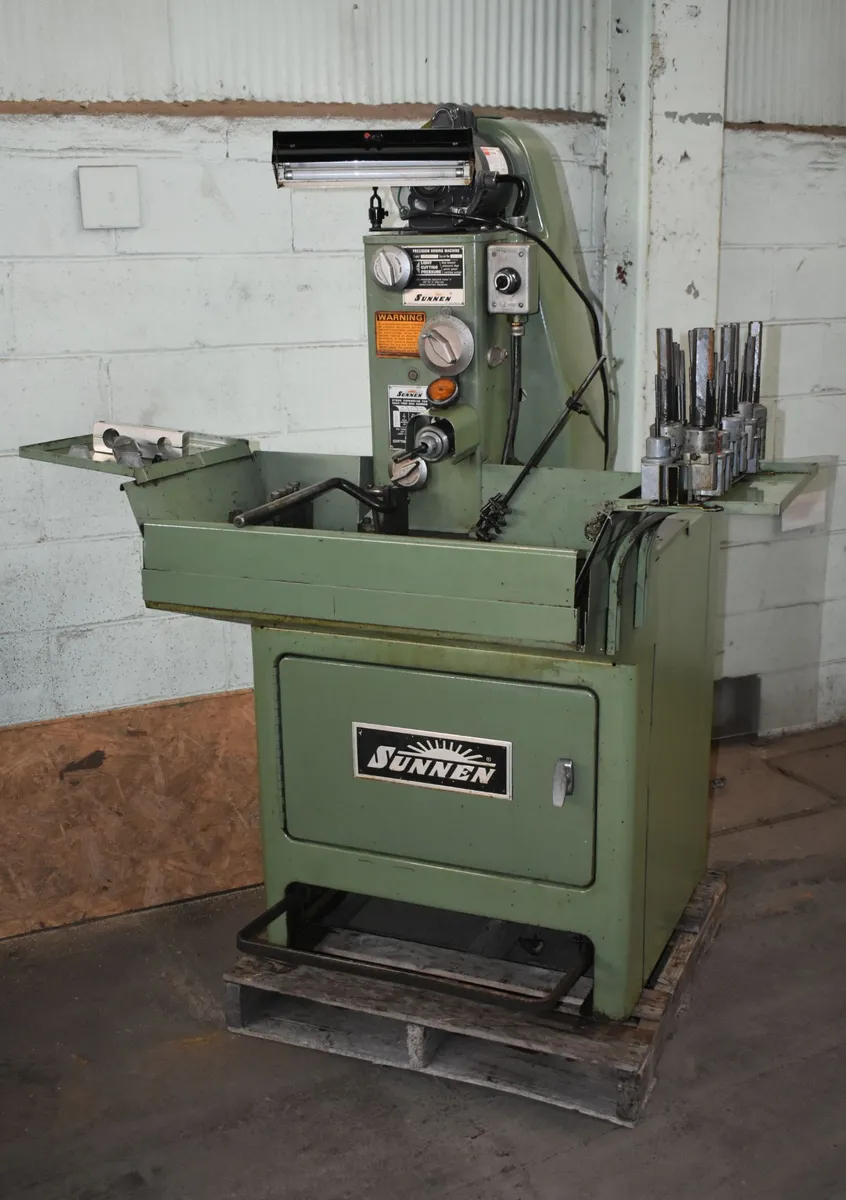

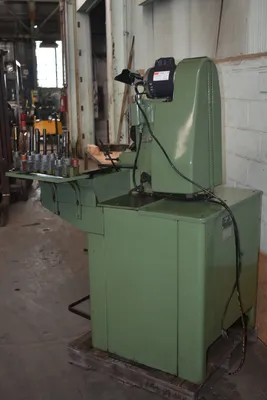

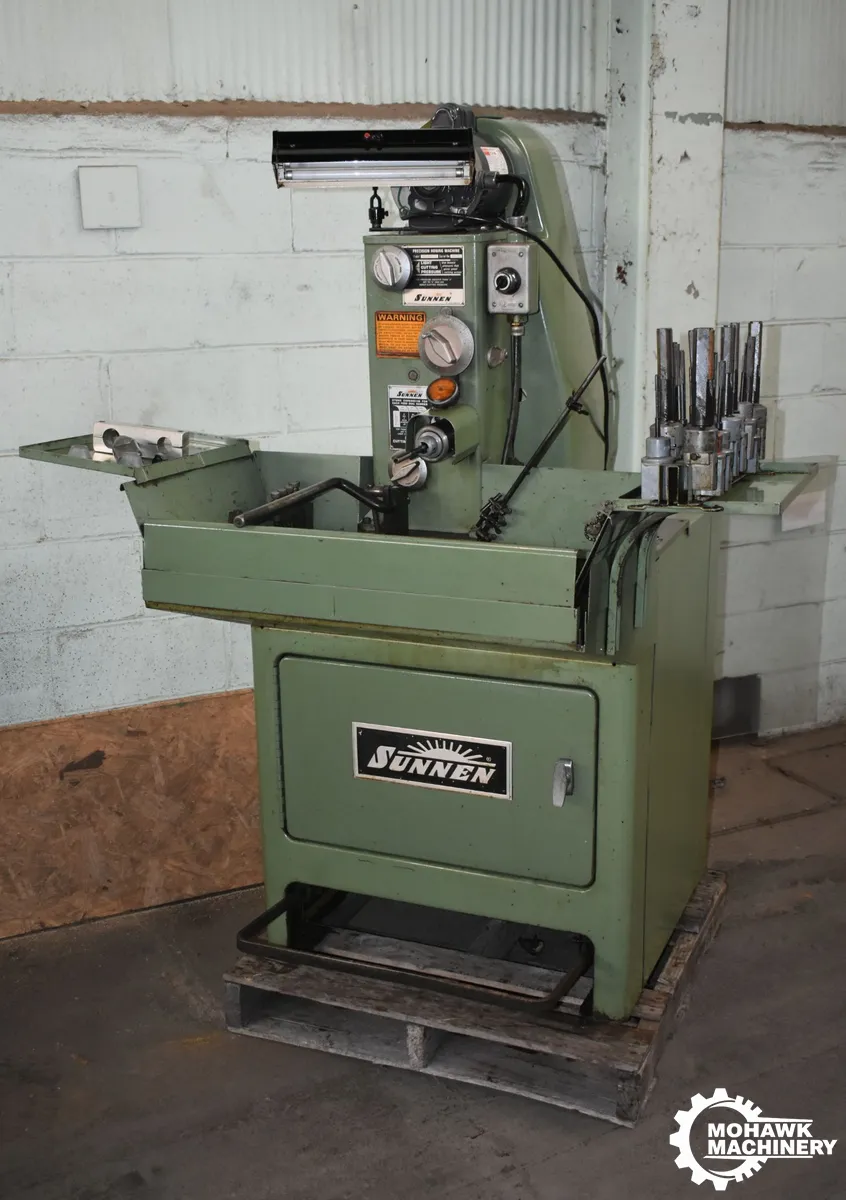

6.5” SUNNEN “MBB-1660” PRECISION HORIZONTAL HONE - 16 Honing Tools
MBB1660 SUNNEN HORIZONTAL HYDRAULIC HONE
Serial No 89456, Model MBB1660
EQUIPPED WITH:
Self Energizing Band Type Spindle Brake

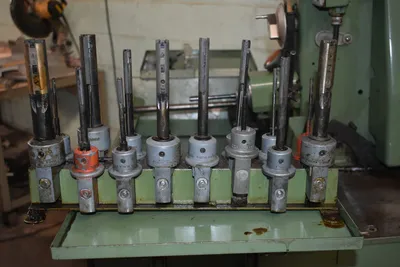

16 Honing Tools
CATALOGUE SPECIFICATIONS:
Diameter Capacity, Minimum .060"
Diameter Capacity, Maximum 6.5"
Work Length, Maximum 16"
(12) Spindle Speeds, Range 200 to 2500 RPM
Spindle Drive Motor, Horsepower 0.5 HP
Floor Space Required, W x D 2'6" x 5'
Overall Height 5'3"
Weight, Approximately 630 LBS
F.O.B. OUR WAREHOUSE
6.5” SUNNEN “MBB-1660” PRECISION HORIZONTAL HONE - 16 Honing Tools
Imperial
| Mandrel Dia. (min) | 0.06" |
| Mandrel Dia. (max) | 6.5" |
| Stroke (min) | 0.125" |
| Stroke (max) | 1.33' |
| Horz/Vert | 'Horz' |
| Dimensions | 30” x 60” x 63” |
| Weight | 630 LBS |
MBB1660 SUNNEN HORIZONTAL HYDRAULIC HONE
Serial No 89456, Model MBB1660
EQUIPPED WITH:
Self Energizing Band Type Spindle Brake
16 Honing Tools
CATALOGUE SPECIFICATIONS:
Diameter Capacity, Minimum .060"
Diameter Capacity, Maximum 6.5"
Work Length, Maximum 16"
(12) Spindle Speeds, Range 200 to 2500 RPM
Spindle Drive Motor, Horsepower 0.5 HP
Floor Space Required, W x D 2'6" x 5'
Overall Height 5'3"
Weight, Approximately 630 LBS
F.O.B. OUR WAREHOUSE
