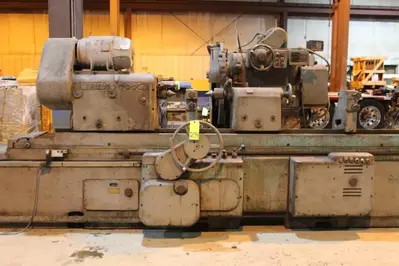

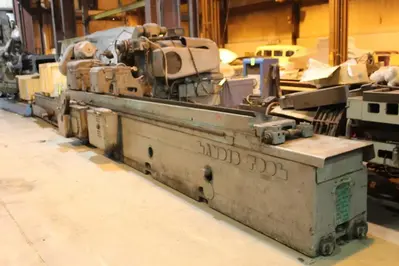

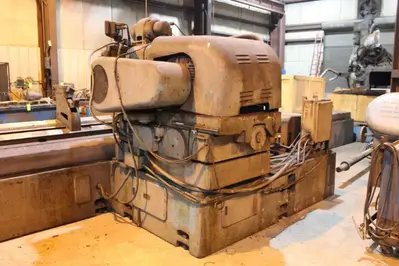

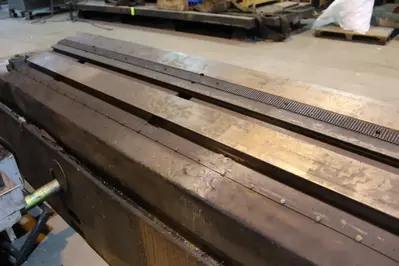

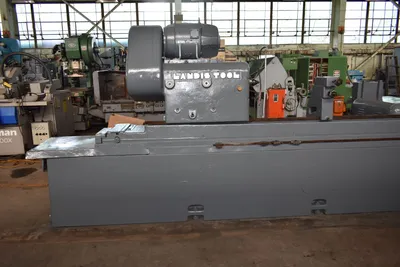

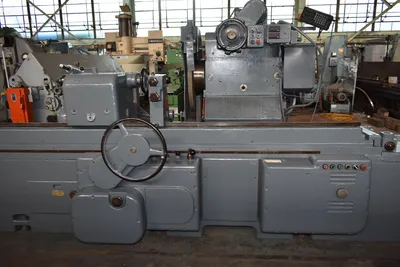

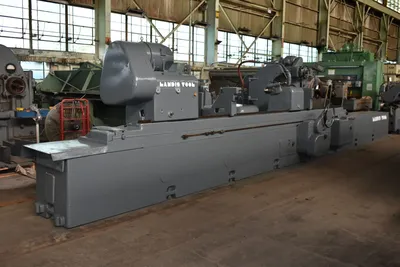

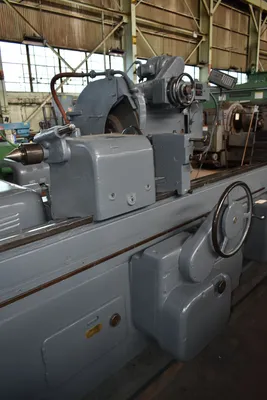

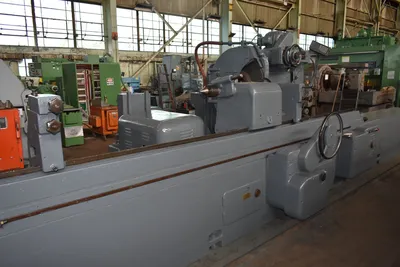

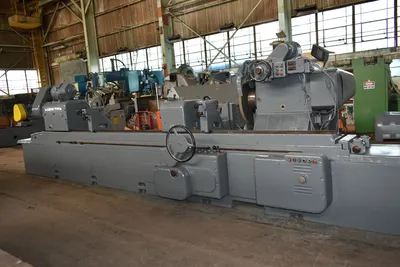

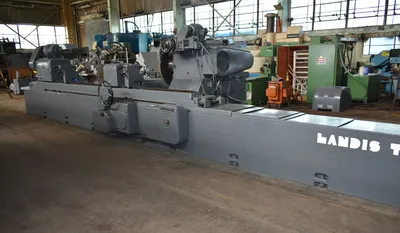

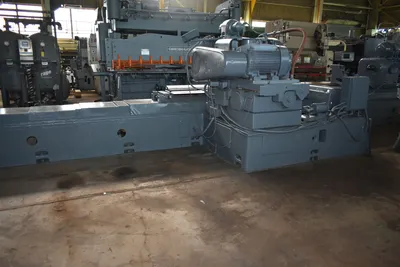

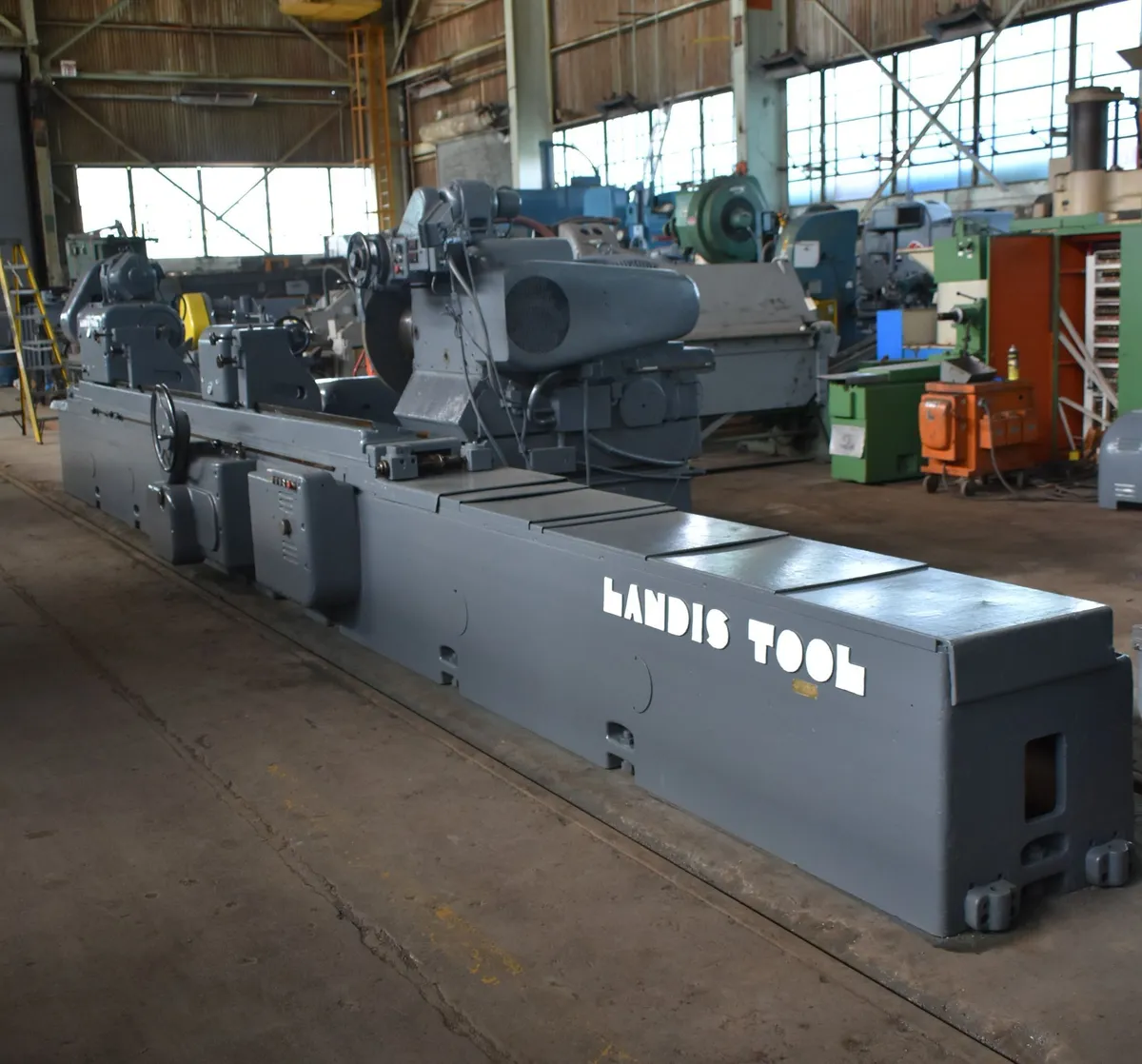

30" x 168” LANDIS “TYPE F” HEAVY-DUTY PLAIN HYDRAULIC CYLINDRICAL GRINDER

30" x 168" LANDIS HEAVY-DUTY PLAIN HYDRAULIC
CYLINDRICAL GRINDER
Serial No 525-7, Model F,

EQUIPPED WITH:

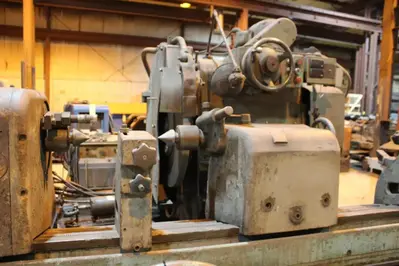

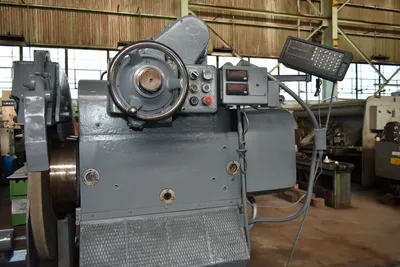

Tailstock Mounted Grinding Wheel Dresser
(2) Follow Style Steady Rests

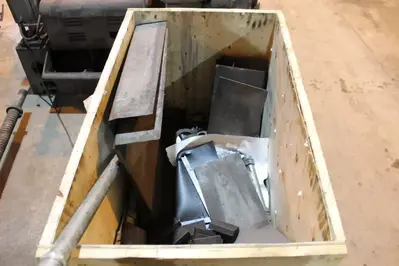

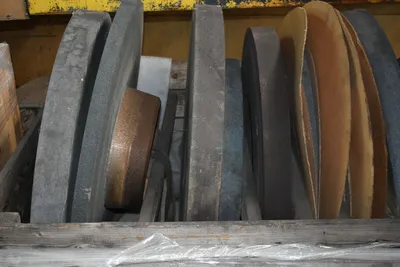

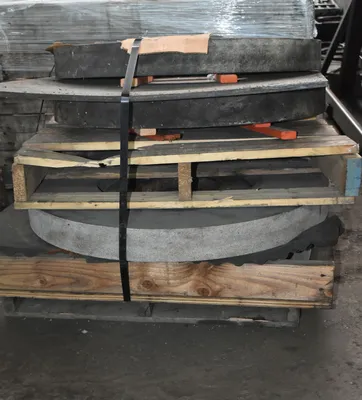

(4) Wheel Hubs - Extra Grinding Wheels
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 31.5"
Grinding Diameter, Maximum 30"
Distance Between Centers, Nominal 168"
Weight Capacity Between Centers, Maximum 10000 LBS

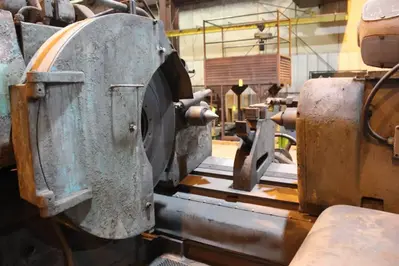

Grinding Wheel Diameter, Standard 30"
Grinding Wheel Width, Standard 3"
Grinding Wheel Hole Diameter 12"
Table Swivel Graduated 7-DEGREES 50-MINUTES
Workhead and Tailstock Center Tapers #20 JARNO
Workhead Spindle Speeds, Range 25 to 100 RPM
Table Longitudinal Feeds, Infinite 3 to 90 IPM
Grinding Wheel Motor, Horsepower HP/
Electrical System 230-460/3/60
Floor Space Required, L x D 40’ x 8'10"
Weight, Approximately 50000 LBS

F.O.B. OUR WAREHOUSE
