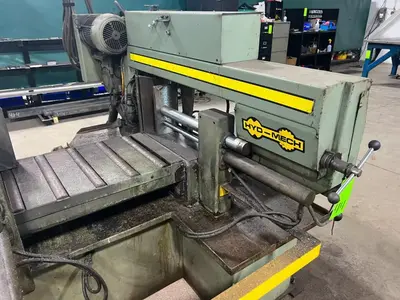

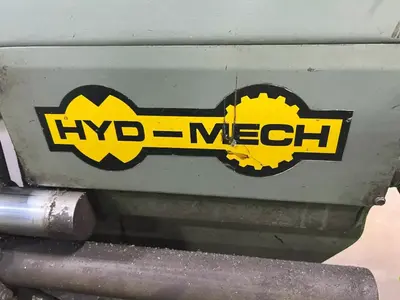

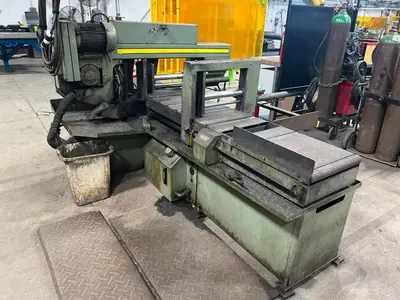

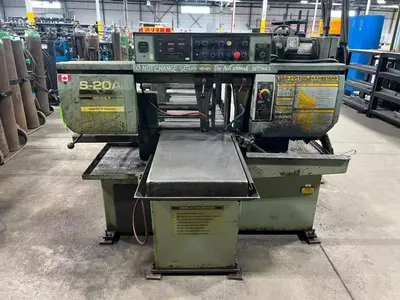

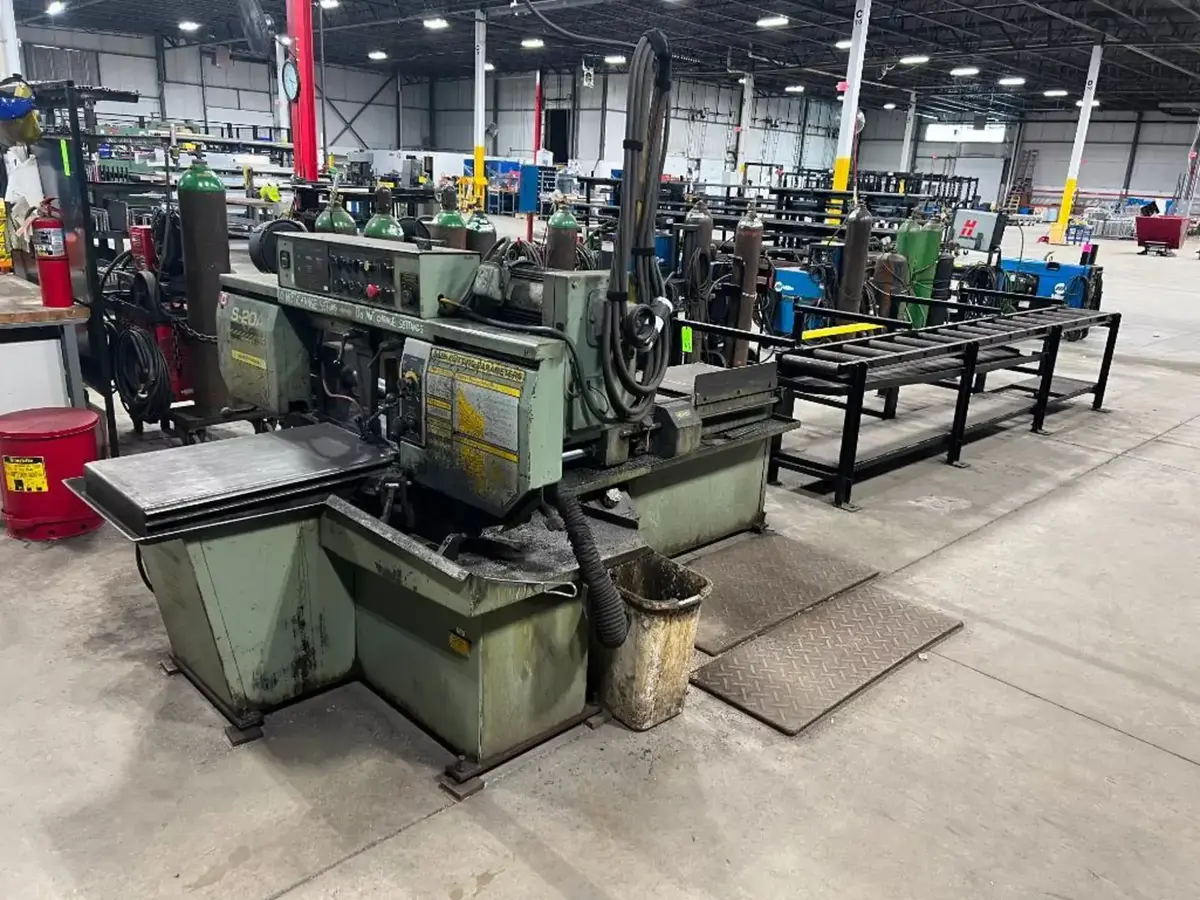

13” x 18” HYD-MEC “S-20A” SERIES II AUTOMATIC HORIZONTAL PIVOT BAND SAW

18" x 13" HYD-MECH "S—20A" SERIES II AUTOMATIC
HORIZONTAL PIVOT BAND SAW

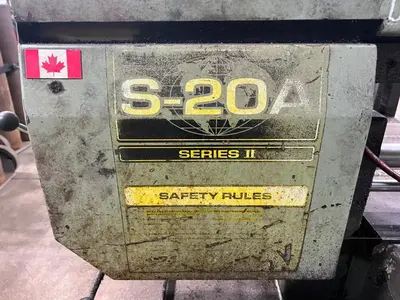

Serial No 80997291, Model S-20A, SERIES II

EQUIPPED WITH:
Hydraulic Overhead Bundling Attachment
Automatic Scissor Style w/Swing Head Mitering

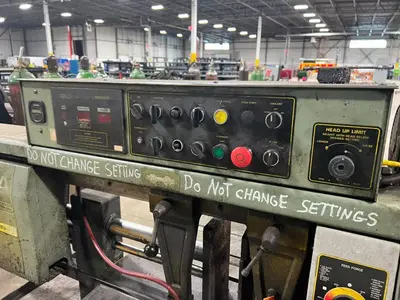

Hyd-Mech PLC Programmable Control
Automatic Multi-Indexing Up To 27" In A Single Stroke
Hydraulic Down Feed

CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 20"
Flat Stock Capacity, 90-Degrees 13" X 18"
Flat Stock Capacity, 45-Degrees 13” x 10.75”
Flat Stock Capacity, 30-Degrees 13” x 7.75”
Round Stock Capacity, 90-Degrees 13”
Round Stock Capacity, 45-Degrees 12”
Round Stock Capacity, 30-Degrees 8.5”
Workload, Maximum 5000 LBS
Band Length 14’10"
Band Width 1"
Band Speeds, Variable 75 to 330 SFPM
Shuttle Stroke, Range 0 to 27"
Blade Motor, Horsepower 3 HP
Hydraulic Motor, Horsepower 2 HP
Overall Dimensions, L x W 93" x 86"
Overall Height 52"
Weight, Approximately 3800 LBS

F.O.B. ON WAY IN
