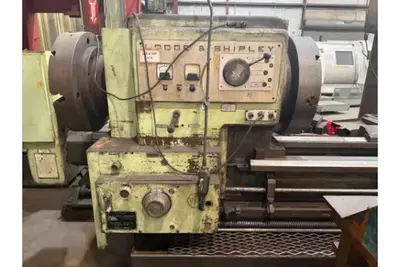

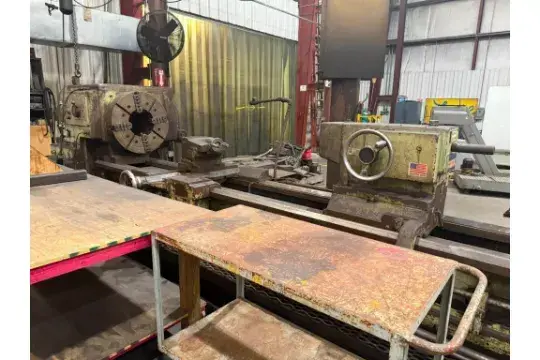

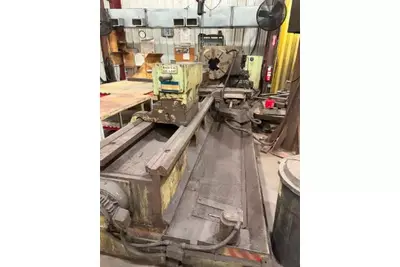

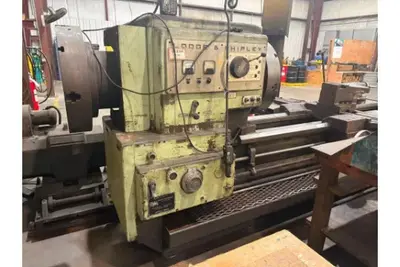

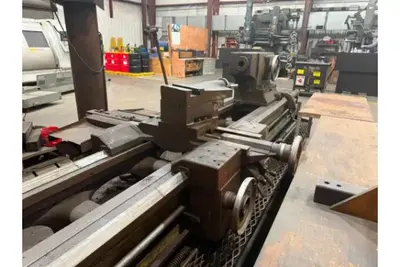

32.5" X 120" LODGE & SHIPLEY "2XE3220WHD" SUPERTURN HOLLOW-SPINDLE EXTRA HEAVY-DUTY OIL-COUNTRY ENGINE LATHE
Have one to sell?
$74,500.00 USD
ConditionUsed
1 available
32.5" X 120" LODGE & SHIPLEY “2XE3220WHD” SUPERTURN HOLLOW-SPINDLE EXTRA HEAVY-DUTY OIL-COUNTRY ENGINE LATHE - 12-1/2” Hole, Taper Attachment, Dual Front & Rear 4-Jaw Chucks, Heavy-Duty Tailstock
32"/32.5" x 120' LODGE & SHIPLEY "SUPERTURN 3220" HOLLOW-SPINDLE
EXTRA HEAVY OIL-OUNTRY ENGINE LATHE w/DUAL-CHUCKS & TAPER ATTACHMENT

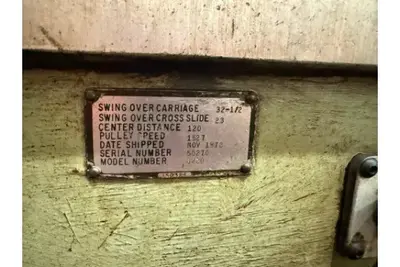

Serial No 50270, Model 2XE3220WHD,
Series "SUPERTURN"
EQUIPPED WITH:

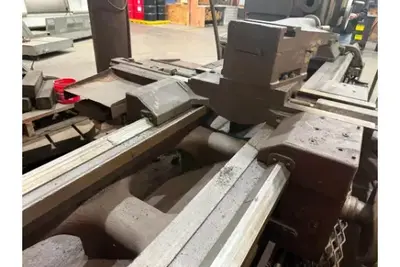

12-1/2" Hole Thru Spindle - Taper Attachment

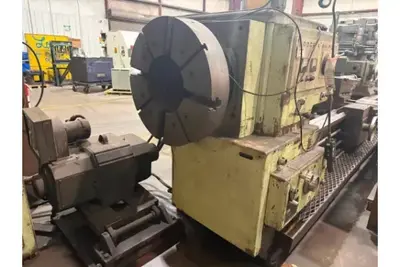

Dual Front & Rear 4-Jaw Chucks
Two-Speed Dead Center Tailstock w/Drilling Attachment
50 HP Vari-Speed Drive
4-Way Power Rapid Traverse
Chip Pan With Built-In Coolant Pump
CATALOG SPECIFICATIONS:
Hole Thru Spindle 7"
Swing Over Bed Ways, Rated 32"
Swing Over Bed Ways, Actual 32.5"
Swing Over Cross-Slide 23"
Distance Between Centers 120"
Cross-Slide Cross-Feed Travel 20.625"
Top-Slide Cross-Feed Travel 7.25"
Tailstock, Spindle Diameter 6"
Tailstock, Spindle Travel 11"
Tailstock, Spindle Taper 6 MT
Spindle Speeds, Range 6 to 650 RPM
(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower 50 HP
Overall Dimensions, L x D 252" x 135"
Overall Height 67"
Weight, Approximately 24,500 LBS
F.O.B. ON WAY IN
