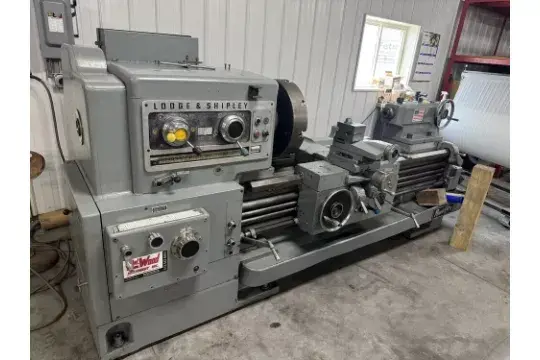

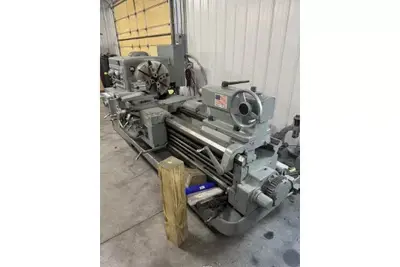

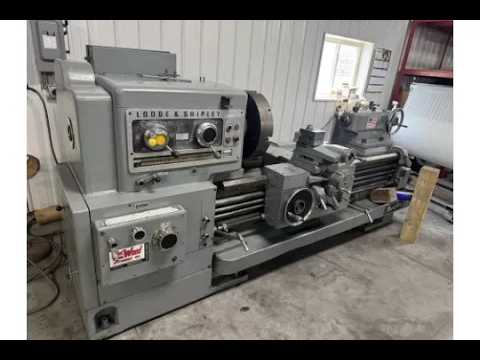

26.5" x 48" LODGE & SHIPLEY "POWERTURN 2516" ENGINE LATHE w/TAPER

25"/26.5" x 48" LODGE & SHIPLEY "POWERTURN" ENGINE LATHE
Serial No 48306, Model 2516, Series "POWERTURN"

EQUIPPED WITH:
Taper Attachment
21" 4-Jaw Chuck - Power Rapid Traverse

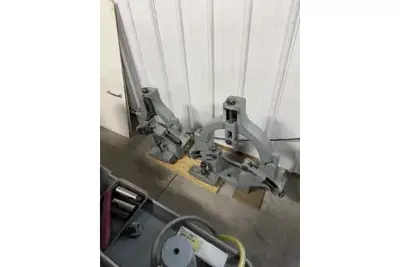

(2) Steady Rests - Tool Post

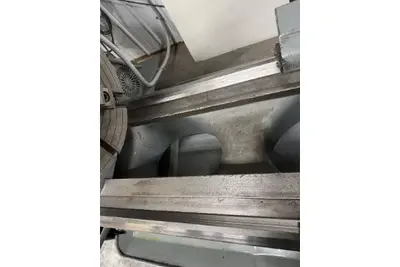

Replaceable Hardened & Ground Bed & Cross-Slide Ways
Quick Change Gear Box and Threading Dial
Forward & Reverse Capabilities
Full Length Coolant-Chip Pan and Coolant System

CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.5"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 26.5"
Swing Over Carriage Wings 26.5"
Swing Over Cross-Slide 20"
Distance Between Centers 48"
Cross-Slide Cross-Feed Travel 18.5"
Top-Slide Cross-Feed Travel 5.25"
Tailstock, Spindle Diameter 4"
Tailstock, Spindle Travel 11"
Tailstock, Spindle Taper #5 MT
(24) Spindle Speeds Range, Forward 18 to 1000 RPM
(16) Spindle Speeds Range, Reverse 18 to 250 RPM
(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower 30 HP
Electrical System 230-460/3/60
Floor Space Required, L x D 12'2" x 5'7"
Weight, Approximately 12000 LBS

F.O.B. OUR WAREHOUSE
