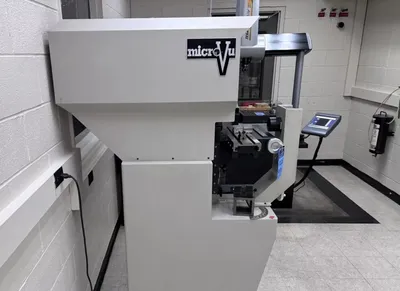

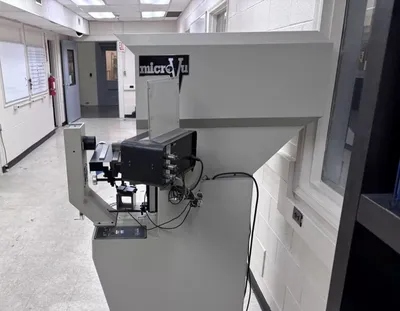

14" MICRO-VU “S14F” FLOOR-TYPE OPTICAL COMPARATOR

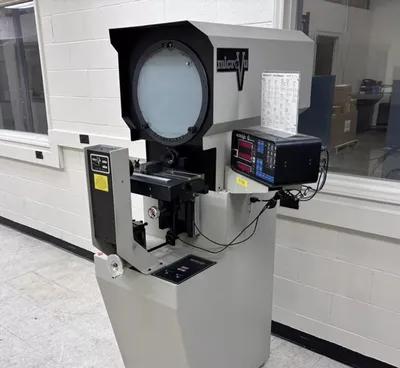

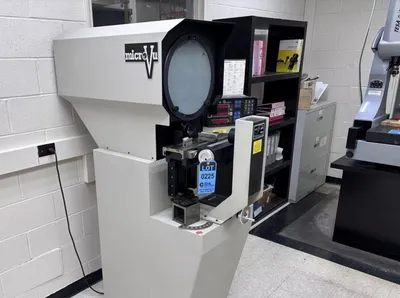

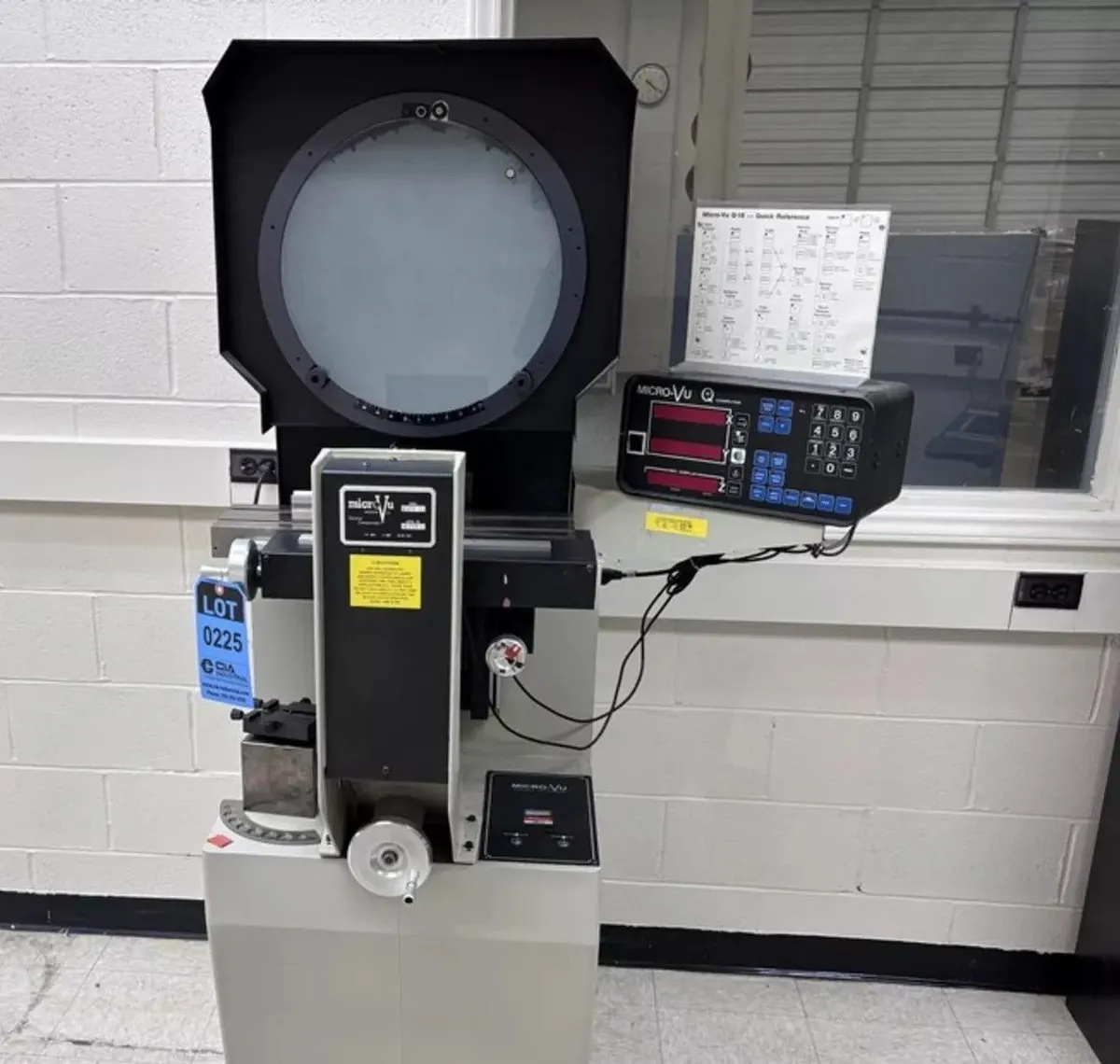

14” MICRO-VU FLOOR STANDING OPTICAL COMPARATOR

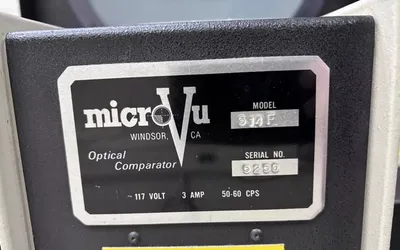

Serial No 5250, Model S14F

EQUIPPED WIYH;

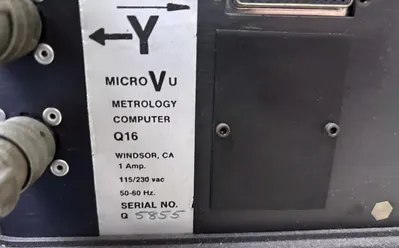

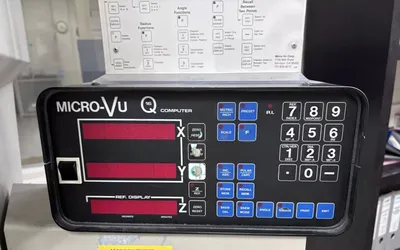

Micro-Vu Q16 Computer w/3-Axis Digital
Readout (Computer Serial No 5855)
Thru-The Lens Surface Illumination

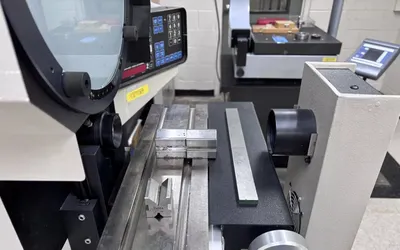

Work Support Blocks
10X Lense

CATALOG SPECIFICATIONS:

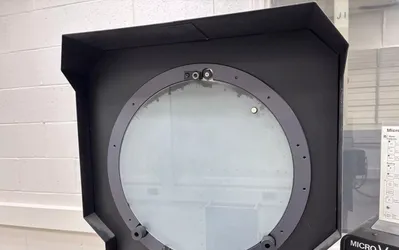

Screen Diameter 14” 355MM

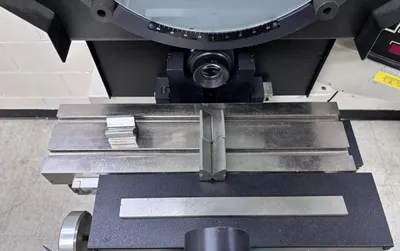

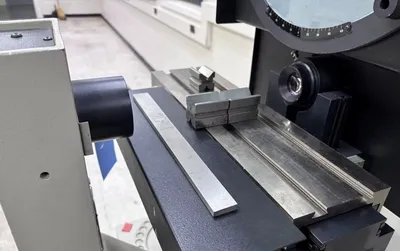

Workstage Surface Dimensions, L x W 18” x 5”
Workstage Surface Dimensions, L x W 450MM x 125MM
X-Axis Horizontal Stage Travel 12” 300MM
Y-Axis Vertical Stage Travel 6” 150MM
Z-Axis Focus Travel 3” 75MM
Load Capacity 20 LBS 9KG
Overall Dimensions, L x W 38" x 43"
Overall Dimensions, L x W 950MM x 1075MM
Overall Height 71" 1775MM
Weight Approximately 325LBS 146KG

F.O.B. OUR WAREHOUSE
