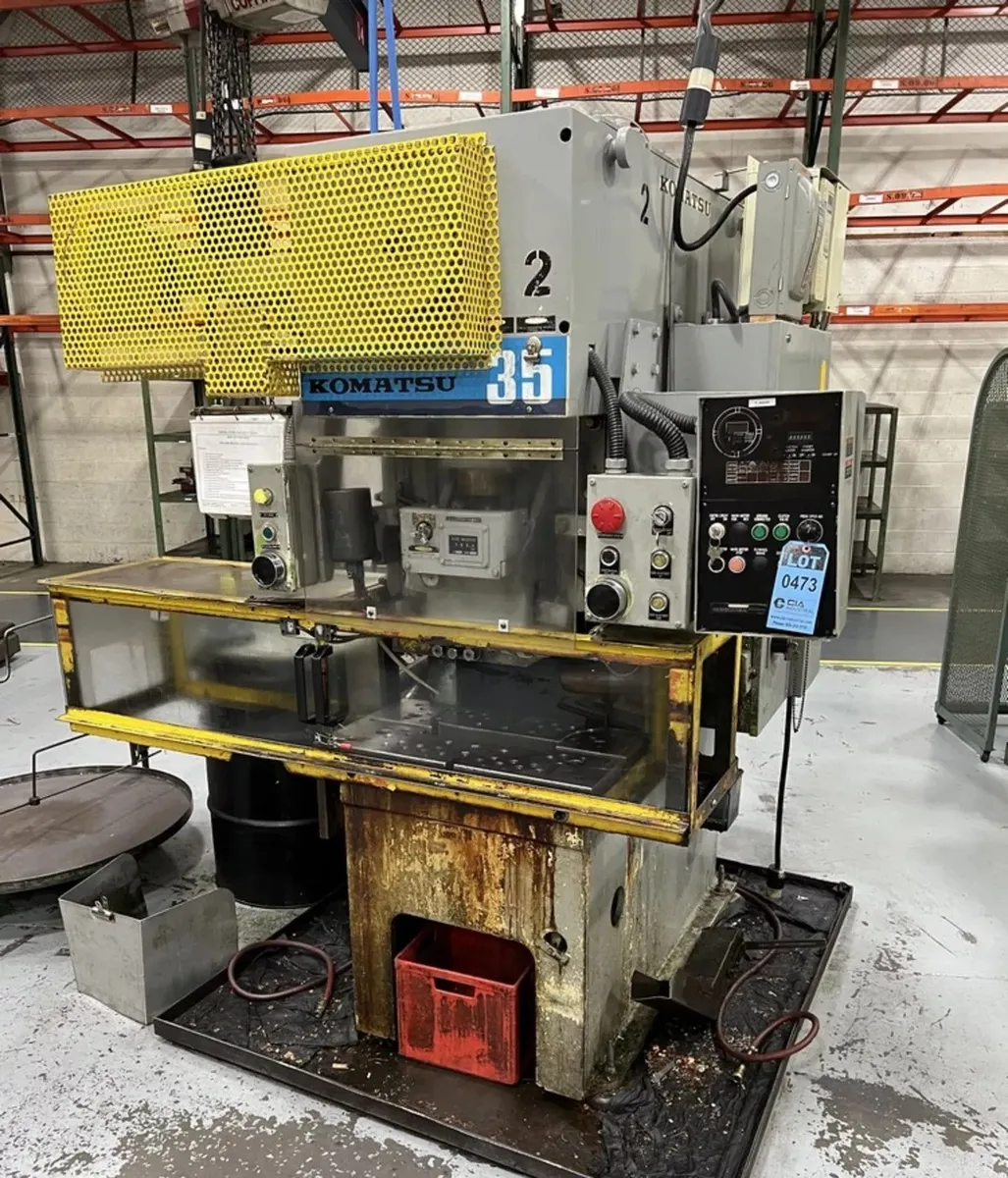

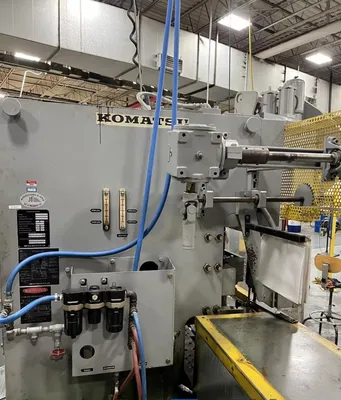

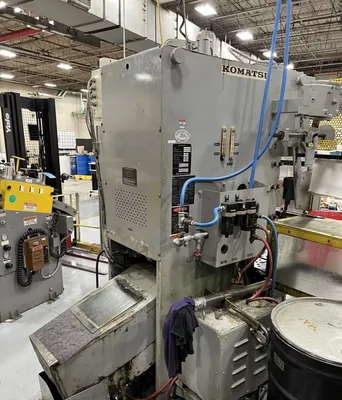

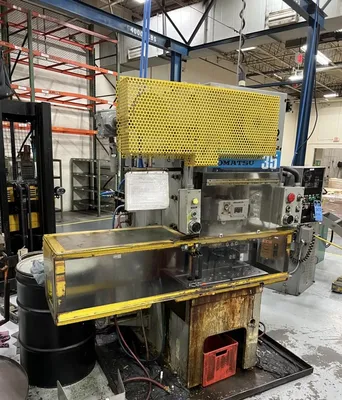

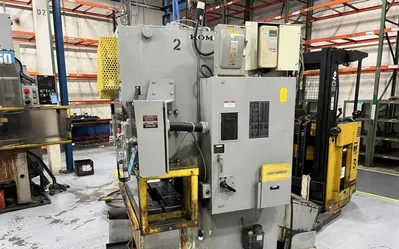

38.5 TON KOMATSU "OBS 35-3" OPEN BACK VARIABLE-SPEED MECHANICAL GAP FRAME PRESS

38.5 TON KOMATSU OPEN BACK GAP-FRAME PRESS
Serial No 13001, Model OBS 35-3

EQUIPPED WITH:
Air Clutch & Brake
Stroke Position Indicator

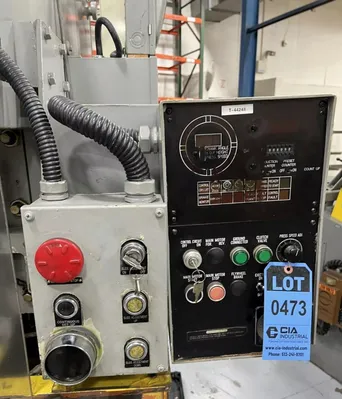

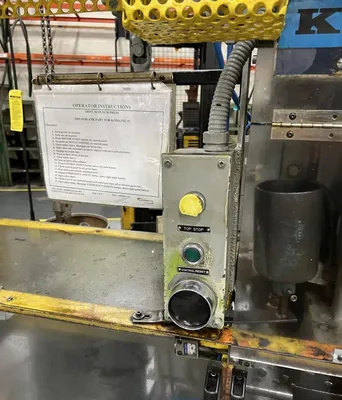

Palm Button Controls

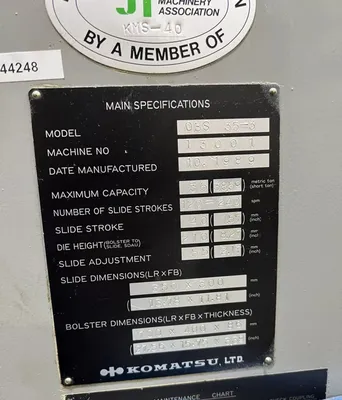

CATALOG SPECIFICATIONS:
Tonnage Capacity, Short Tons (USA) 38.5 TON
Tonnage Capacity, Metric 35 TON
Stroke Length 1.57" 40MM
Die Height, (SDAU) 11.81" 300MM

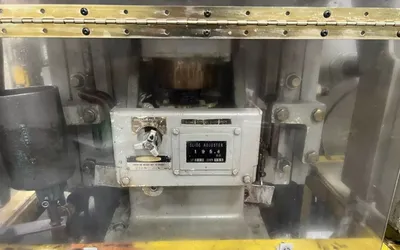

Slide Adjustment 2.17" 55MM
Slide Area, L-R x F-B 13.78" x 11.81"
Slide Area, L-R x F-B 350MM x 300MM

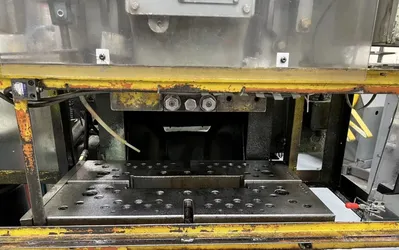

Bolster Area, L-R x F-B 27.56" x 15.75"
Bolster Area, L-R x F-B 700MM X 500MM
Bolster Thickness 3.39" 86MM
Strokes per Minute, Variable 120 to 240 SPM
Width Of Opening In Back 17.4"
Motor Horsepower 5 HP
Weight, Approximately LBS

FOB ON WAY IN
