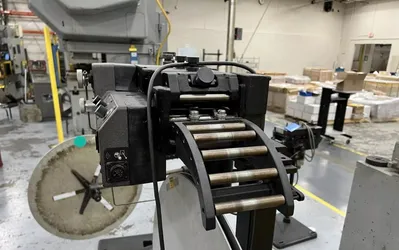

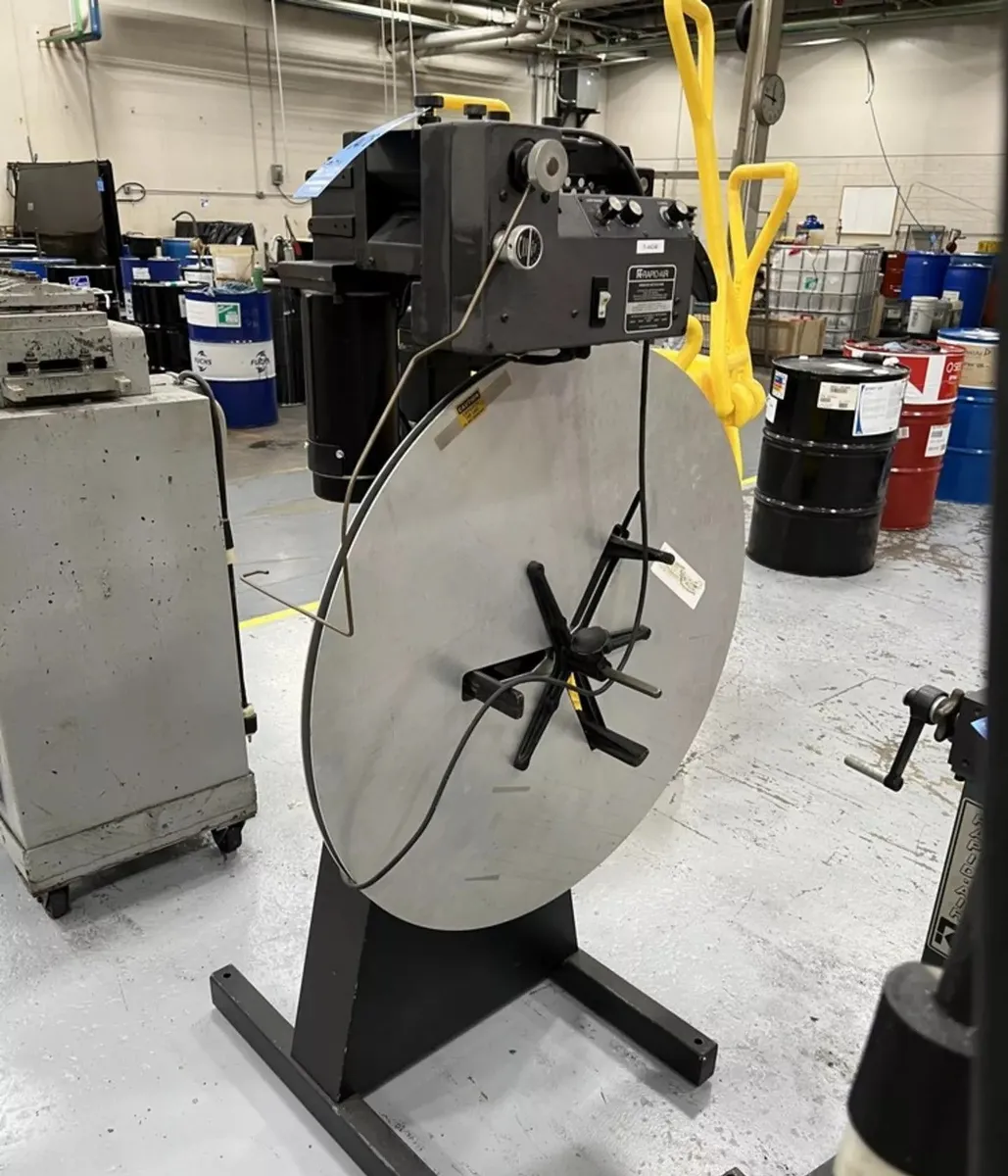

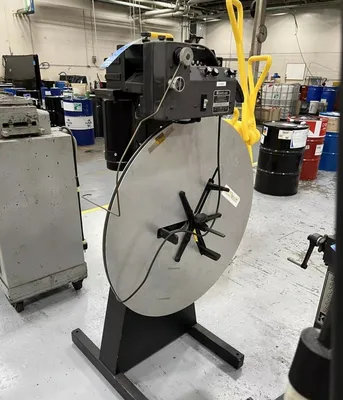

150 LB x 4" RAPID-AIR COMBINATION "R36NA" COIL REEL & "SB4PE" MOTORIZED STRAIGHTENER

150 LB x 4" RAPID-AIR SINGLE-END COIL REEL & STRAIGHTENER

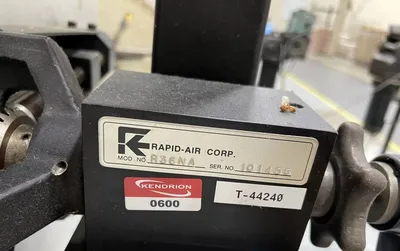

Reel Serial No 10146, Reel Model R36NA
Straightener Serial No 112551, Straightener Model SB4PE

EQUIPPED WITH:

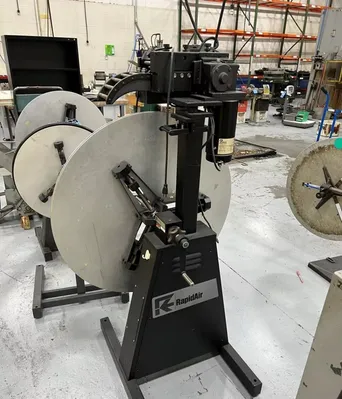

Rapid-Air "R36NA" Single-End Reel w/Adjustable Center

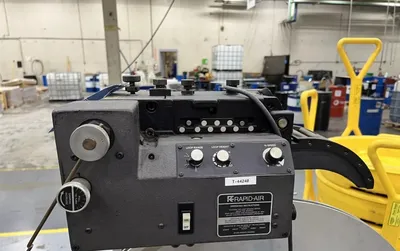

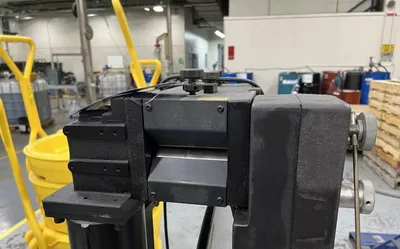

Rapid-Air "SB4PE" Motorized Straightener w/Vari-Speed,
Adjustable Loop Height & Loop Range - Cascade Rolls

CATALOG SPECIFICATIONS:
Reel Coil Weight Capacity, Maximum 150 LBS
Reel Coil Width Capacity, Maximum 4"
Reel Coil OD, Maximum 36"
Straightener Coil Width, Maximum 4"
Straightener Effective Straightening Range .003" to .050"
Straightener Speed Variable to 700 IPM
Straightener Motor Horsepower 1/2 HP

F.O.B. OUR WAREHOUSE
