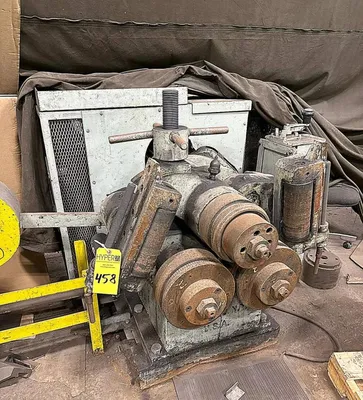

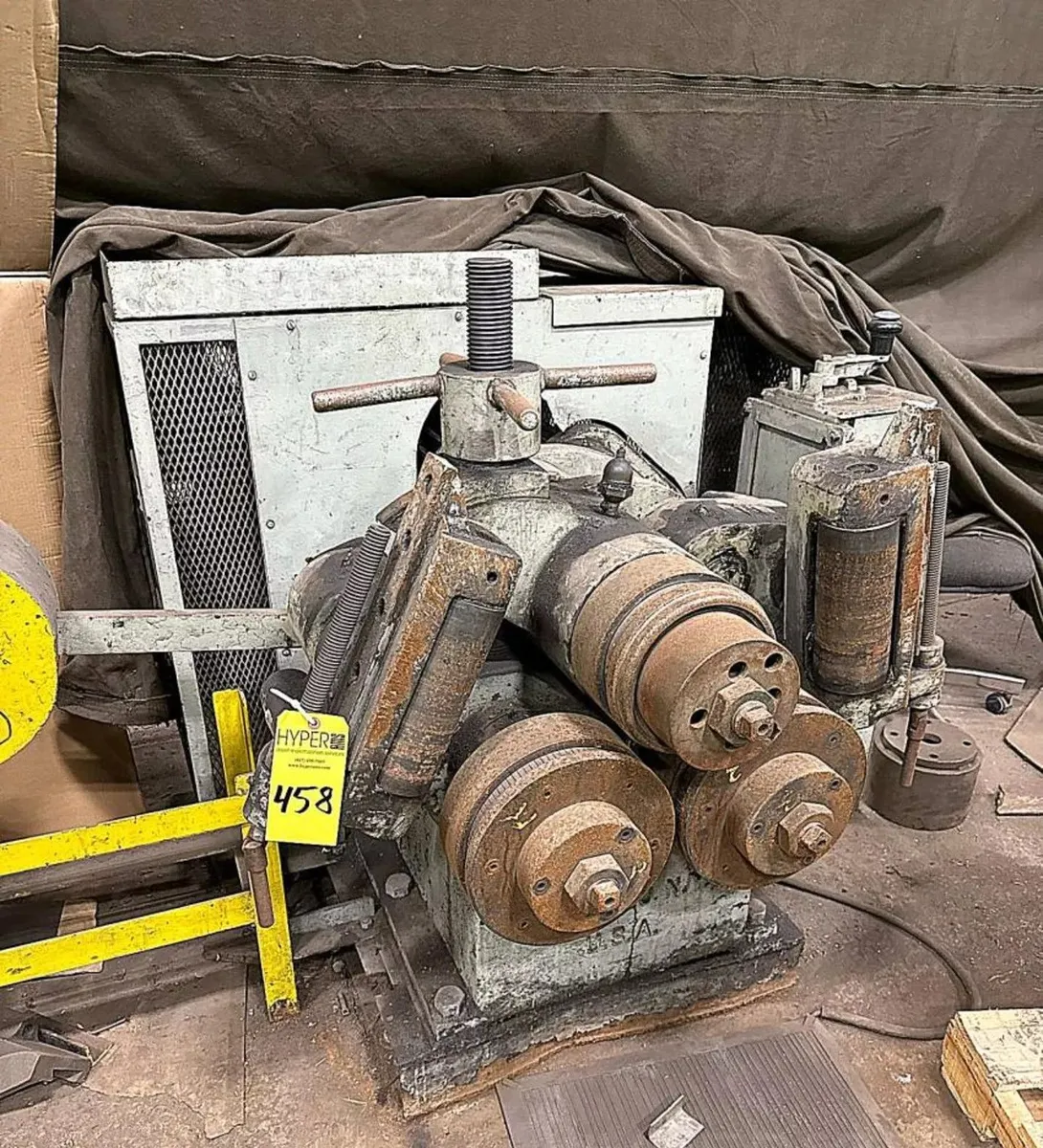

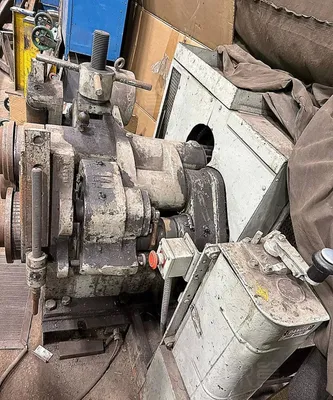

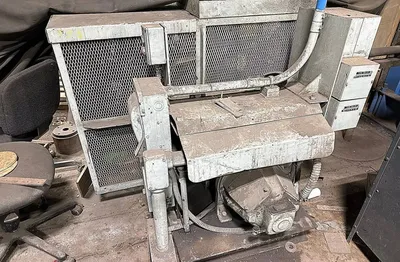

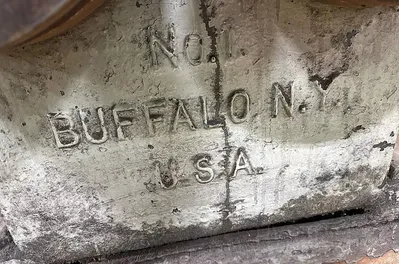

3” x 3” x 3/8” BUFFALO “1” VERTICAL ANGLE BENDING ROLL

3” X 3” X 3/8” BUFFALO VERTICAL ANGLE BENDING ROLL
Model 1

EQUIPPED WITH:
Set Of Rolls

CATALOG SPECIFICATIONS:
Bending Capacity at Minimum Diameter:
Leg-In Angles, Angle Sides 2.5" x 2.5"
Leg-In angles, Angle Thickness 3/8"
Leg-Out Angles, Angle Sides 3" x 3"
Leg-Out Angles, Angle Thickness 3/8"
Flat On Flat 6" x 1"
Flat On Edge 3" x 5/8"
Flange-In Channels 5" @ 9#
Flange-Out Channels 5" @ 11.5#
Beam On Flange 5" @ 12.25#
Beam On Web 4" @ 9.5#
Solid Round Bars 2"
Solid Square Bars 1.75"
Standard Pipe 2"
Angle Rolls, Diameter 11.375"
Upper-Shaft, Diameter 4.75"
Bottom-Shaft, Diameter 4"
Roll Speed, Maximum 13.5 RPM
Speed Feet Per Minute, Maximum 40 FPM
Main Motor, Horsepower 10 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 7'2 x 5'6
Overall Height 5'
Weight, Approximately 5400 LBS

F.O.B. ON WAY IN
