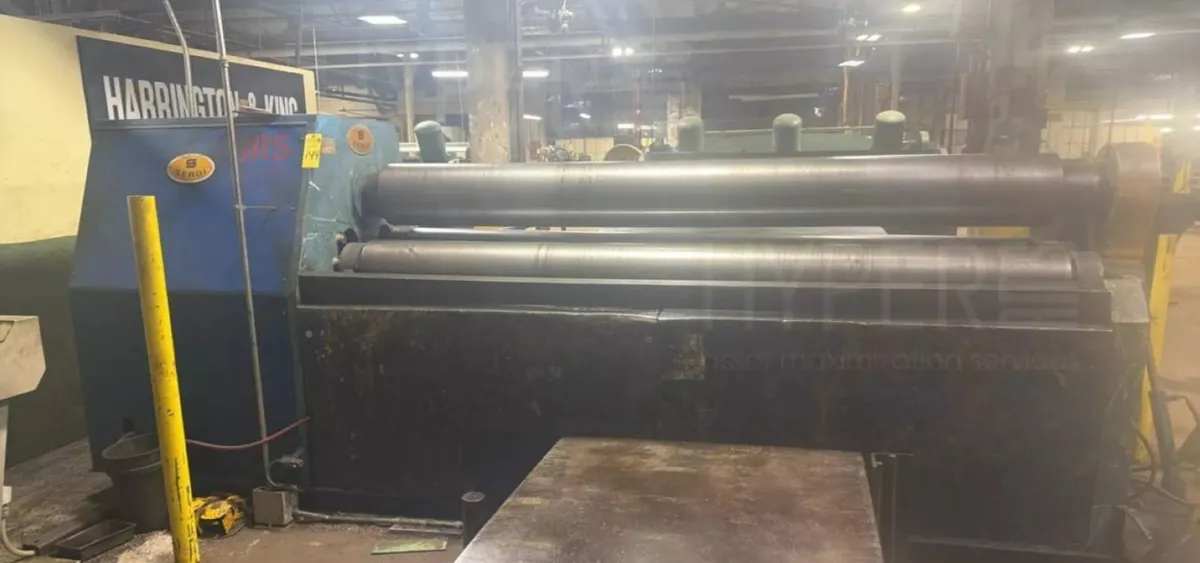

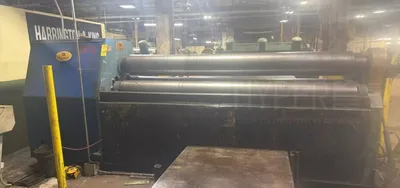

10' x 1/2" SERGI "C.I. 3050X10/12" HYDRAULIC 3-ROLL DOUBLE PINCH PLATE BENDING ROLL

10’ x 1/2” SERGI FULLY-HYDRAULIC DOUBLE-PINCH PLATE BENDING ROLL

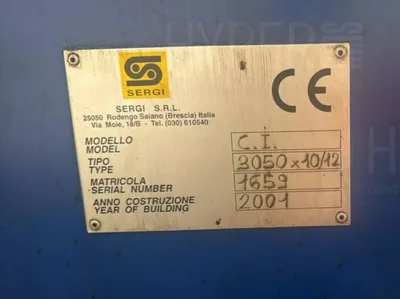

New 2002, Serial No 1659, Model C.I., Series 3050x10/12

EQUIPPED WITH:

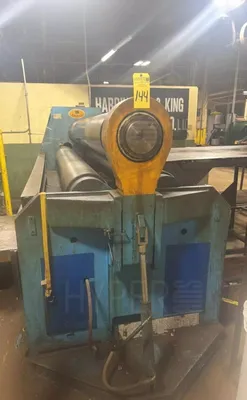

Hydraulic Drop End
Double Pre-Bending Capabilities
(3) Driven Rolls - Dual Rotation Speeds (Fast/Slow)
Side Roll Inclination For Conical Bending

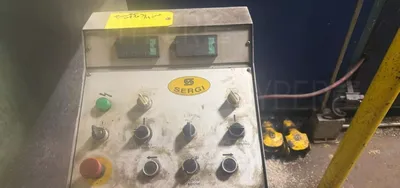

Mobil Control Panel w/Digital Readouts For Side
Roll Position

CATALOG SPECIFICATIONS:
Plate Bending Capacity 10’ x 1/2”
Plate Bending Capacity 3050MM x 12MM
Pre-Bending Capacity Rated 10’ x 3/8”
Pre-Bending Capacity Rated 3050MM x 10MM
Top-Roll Diameter 11” 280MM
Bottom-Rolls Diameter 10.25” 260MM
Motor Horsepower 15 HP 11KW
Floor Space Required 5250MM X 1850MM
Weight Approximately 21200 LBS 9600 KG

F.O.B. ON WAY IN
