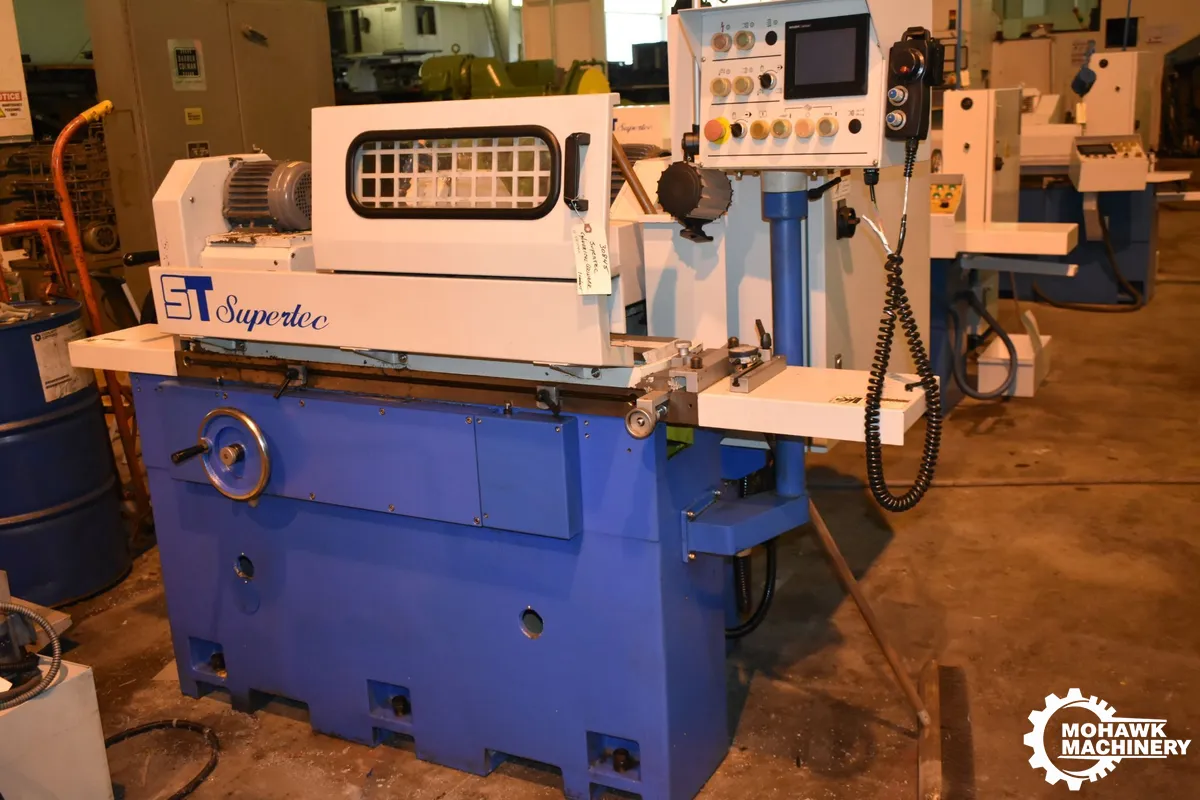

8” x 20” SUPERTEC “G20P-50NC” PRECISION CYLINDRICAL GRINDER - 2015
Have one to sell?
ConditionUsed
1 available
$24,500.00 USD
8” x 20” SUPERTEC “G20P-50NC”PRECISION CYLINDRICAL GRINDER - Mitsubishi “GOT1000” PLC Control w/Hand Held Pendant - Wheel Dresser - Coolant System - 2015

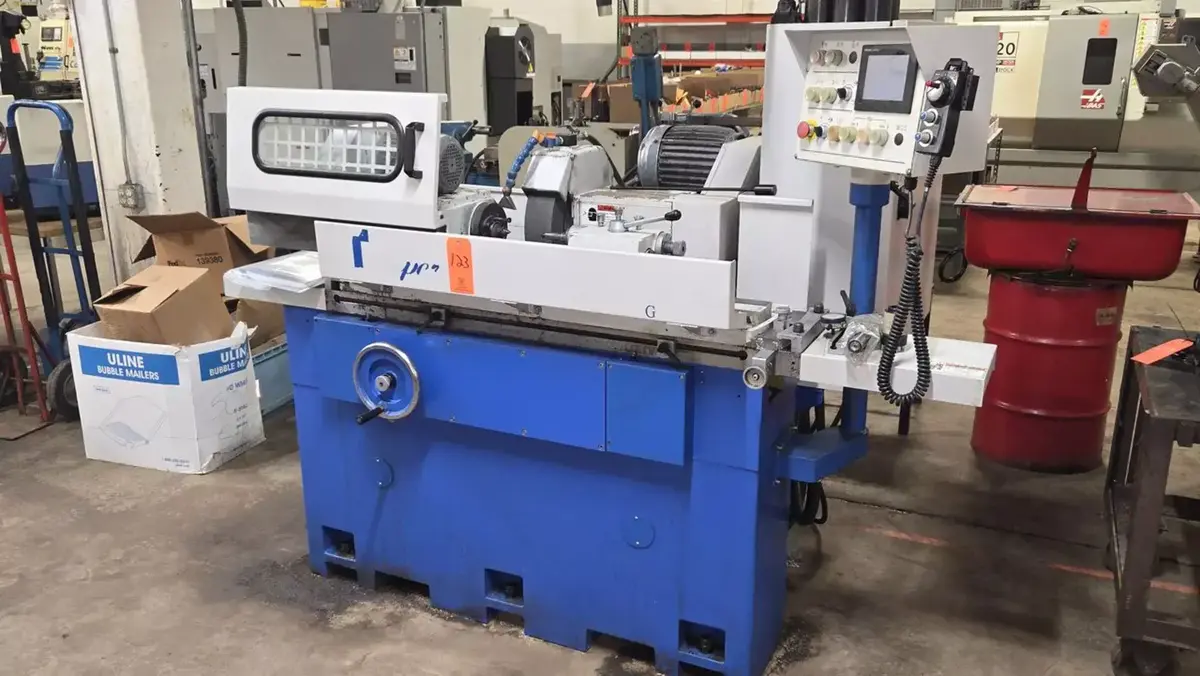

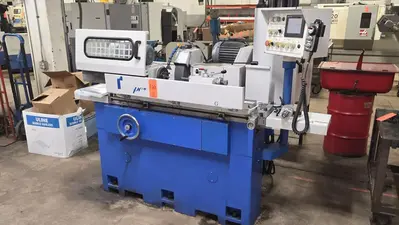

8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER

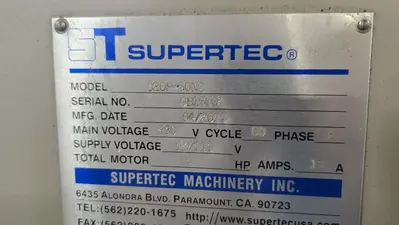

New 2015, Serial No. GB15002, Model G20P-50NC
EQUIPPED WITH:

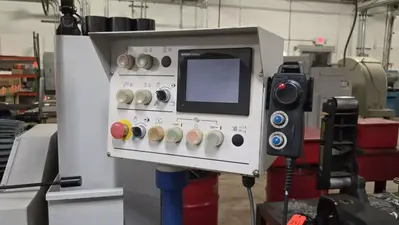

Mitsubishi “GOT1000” PLC Control w/Hand Held Pendant

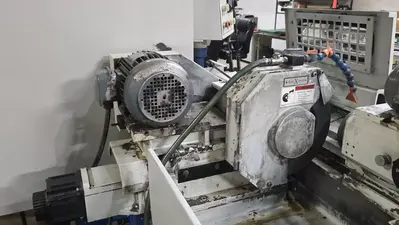

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System

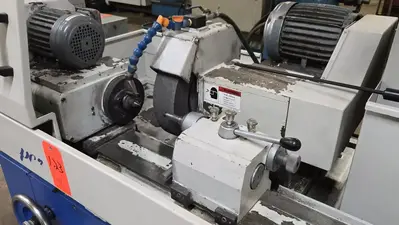

Table Mounted Swiveling Grinding Wheel Dresser
Mitutoyo Gauging

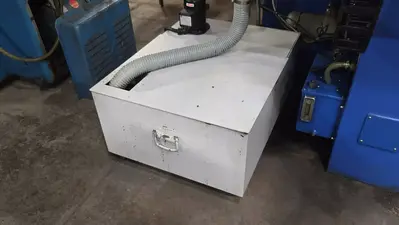

Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 8"
Grinding Diameter, Maximum 8"
Distance Between Centers, Maximum 20"
Weight Capacity Between Centers 308 LBS
Grinding Wheelhead X-Axis, Travel 6”
Longitudinal Table Z-Axis,Travel 24”
Grinding Wheel, Standard Diameter 14"
Grinding Wheel, Width 1.5"
Grinding Wheel, Hole Diameter 5"
Grinding Wheel Speeds 1620 & 1960 RPM
Workhead Spindle Speeds 198 to 570 RPM
Wheelhead Rapid Feedrate, Maximum 236 IPM
Longitudinal Rapid Feedrate, Maximum 316 IPM
Table Swivel Angle Range +/- 7-DEGREES
Workhead Swivel Angle, Range +/- 45-DEGREES
Workhead & Tailstock Spindle Taper 3 MT
Wheelhead Motor, Horsepower 5 HP
Workhead Motor, Horsepower 1 HP
Tailstock Quill Travel 1"
Hydraulic Motor, Horsepower .5 HP
Overall Dimensions, L x W 82” x 47”
Weight, Approximately 4400 LBS
F.O.B OUR WAREHOUSE
8” x 20” SUPERTEC “G20P-50NC”PRECISION CYLINDRICAL GRINDER - Mitsubishi “GOT1000” PLC Control w/Hand Held Pendant - Wheel Dresser - Coolant System - 2015
Imperial
| Swing | 8" |
| Centers | 20" |
| Power | 5 hp |
| Workhead Power | 1 hp |
| Workhead Speed | 600 RPM |
| Grinding Wheel Dia. | 14" |
| Max Weight Between Centers | 308 lb |
| Plunge (Yes/No) | 'Yes' |
| Control | CNC (Mitsubishi PLC Control) |
| Dimensions | 82” x 47” |
| Weight | 4400 LBS |
8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER
New 2015, Serial No. GB15002, Model G20P-50NC
EQUIPPED WITH:
Mitsubishi “GOT1000” PLC Control w/Hand Held Pendant
Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System
Table Mounted Swiveling Grinding Wheel Dresser
Mitutoyo Gauging
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 8"
Grinding Diameter, Maximum 8"
Distance Between Centers, Maximum 20"
Weight Capacity Between Centers 308 LBS
Grinding Wheelhead X-Axis, Travel 6”
Longitudinal Table Z-Axis,Travel 24”
Grinding Wheel, Standard Diameter 14"
Grinding Wheel, Width 1.5"
Grinding Wheel, Hole Diameter 5"
Grinding Wheel Speeds 1620 & 1960 RPM
Workhead Spindle Speeds 198 to 570 RPM
Wheelhead Rapid Feedrate, Maximum 236 IPM
Longitudinal Rapid Feedrate, Maximum 316 IPM
Table Swivel Angle Range +/- 7-DEGREES
Workhead Swivel Angle, Range +/- 45-DEGREES
Workhead & Tailstock Spindle Taper 3 MT
Wheelhead Motor, Horsepower 5 HP
Workhead Motor, Horsepower 1 HP
Tailstock Quill Travel 1"
Hydraulic Motor, Horsepower .5 HP
Overall Dimensions, L x W 82” x 47”
Weight, Approximately 4400 LBS
F.O.B OUR WAREHOUSE
