8” x 20” SUPERTEC “G20P-50NC” PRECISION CYLINDRICAL GRINDER - 2007

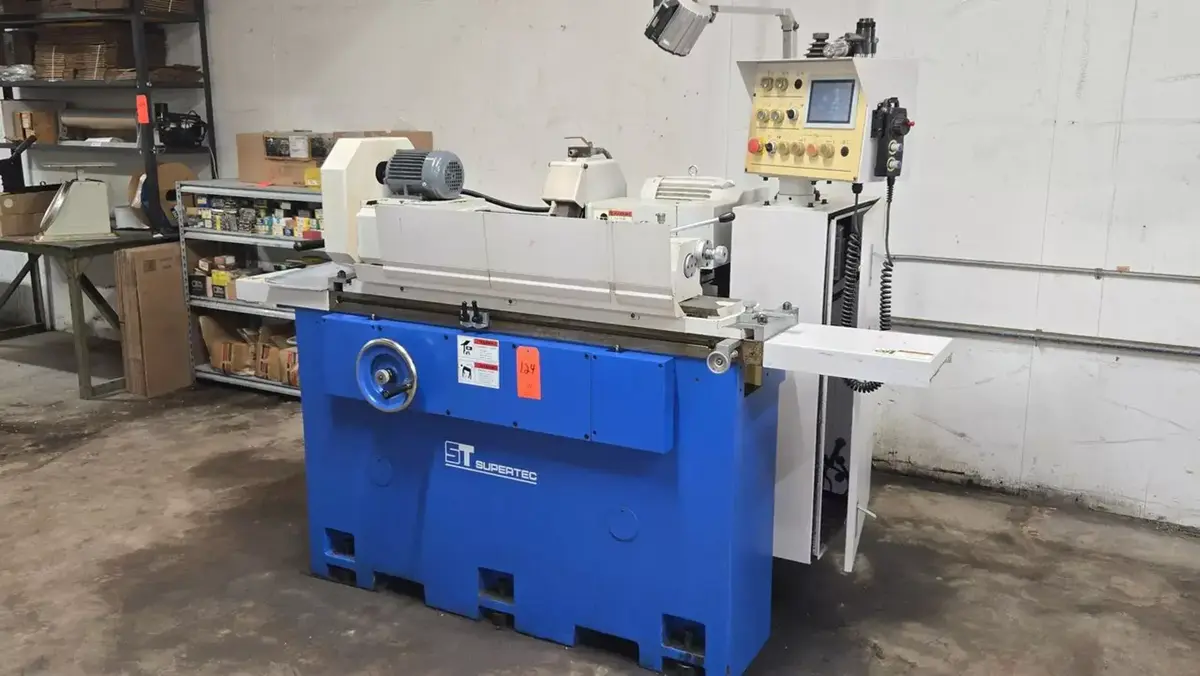

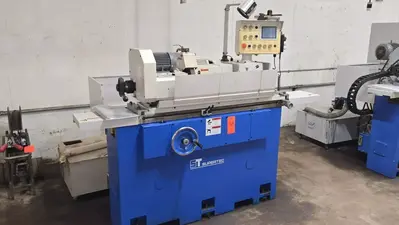

8" X 20" SUPERTEC PRECISION PLUNGE TYPE CYLINDRICAL GRINDER

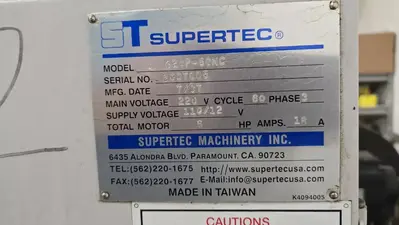

New 2007, Serial No. GB07005, Model G20P-50NC

EQUIPPED WITH:

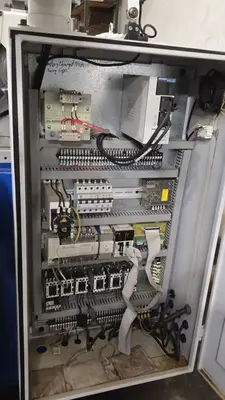

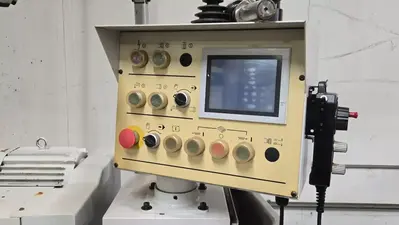

Mitsubishi PLC Control

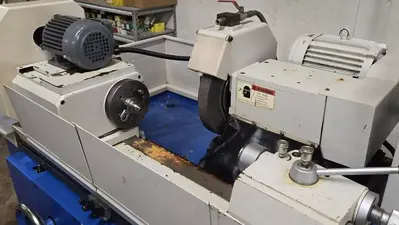

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System

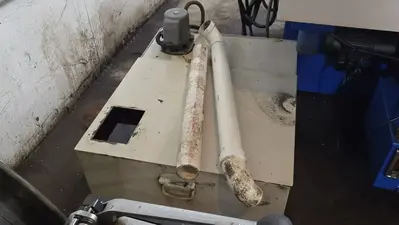

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 8"
Grinding Diameter, Maximum 8"
Distance Between Centers, Maximum 20"
Weight Capacity Between Centers 176 LBS
Grinding Wheelhead X-Axis, Travel 6”
Longitudinal Table Z-Axis,Travel 24”
Grinding Wheel, Standard Diameter 14"
Grinding Wheel, Width 1.5"
Grinding Wheel, Hole Diameter 5"
Grinding Wheel Speeds 1940 RPM
Workhead Spindle Speeds 10 to 600 RPM
Wheelhead Rapid Feedrate, Maximum 236 IPM
Longitudinal Rapid Feedrate, Maximum 316 IPM
Table Swivel Angle Range +/- 7 DEGREES
Workhead Swivel Angle, Range 90-DEGREES
Workhead & Tailstock Spindle Taper 3 MT
Wheelhead Motor, Horsepower 5 HP
Workhead Motor, Horsepower 1 HP
Hydraulic Motor, Horsepower .5 HP
Overall Dimensions, L x W 82” x 47”
Weight, Approximately 4400 LBS

F.O.B ON WAY IN
