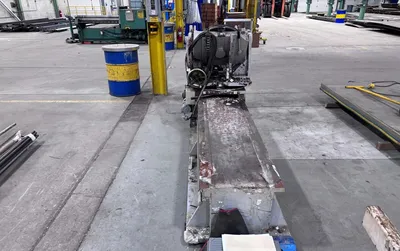

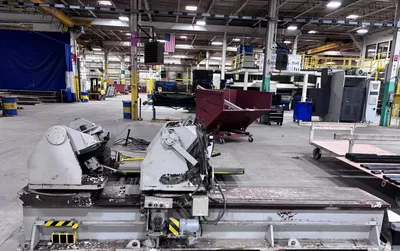

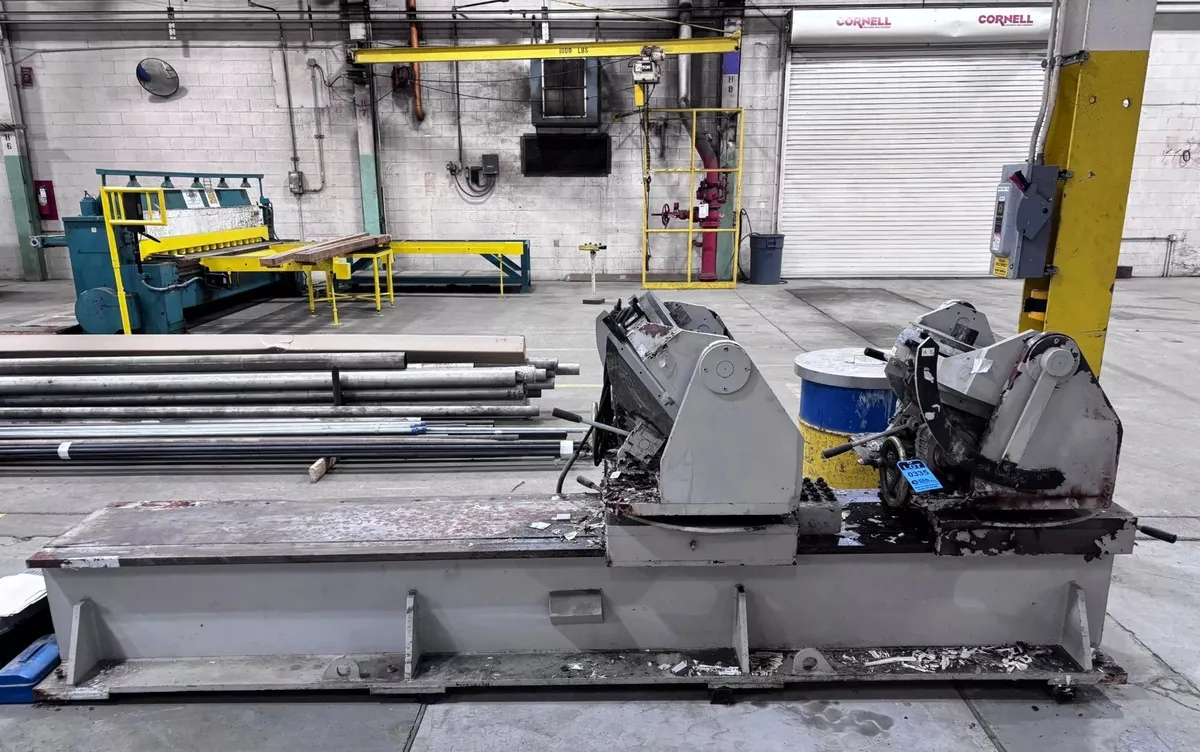

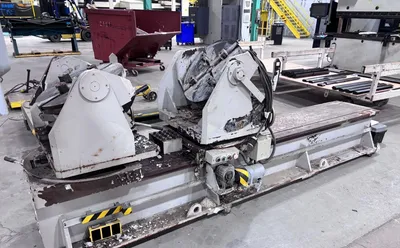

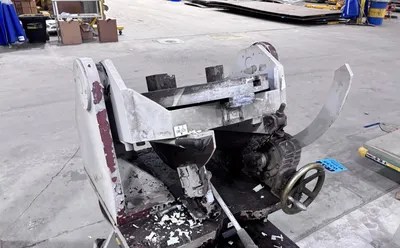

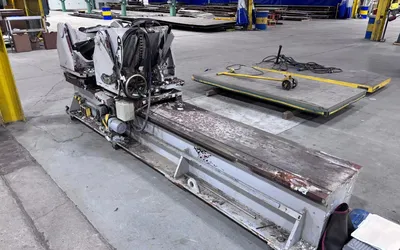

14” X 120” TAK-PME MOTORIZED PIPE FITTING WELDING POSITIONER MANIPULATOR

14” x 120” TAK-PME MOTORIZED PIPE FITTING
WELDING POSITIONER MANIPULATOR

EQUIPPED WITH:

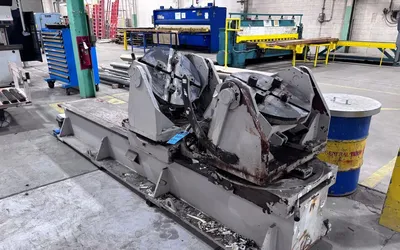

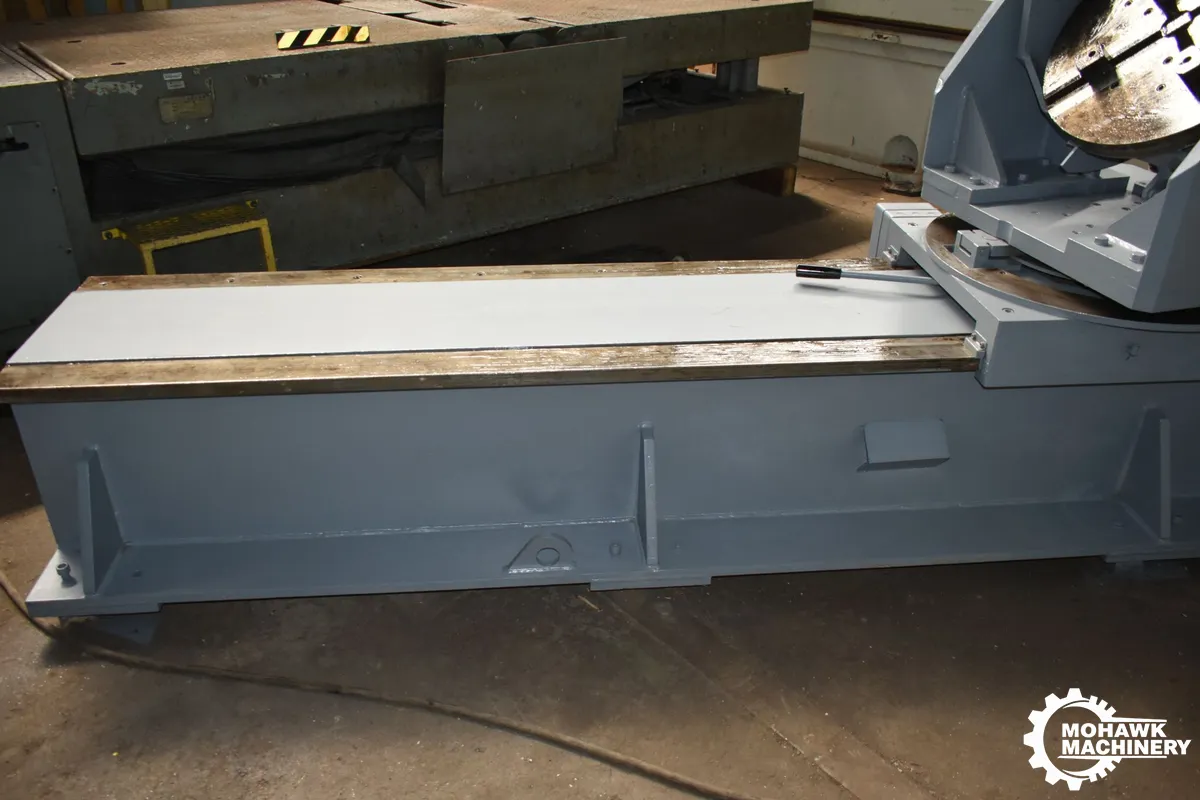

Carrriage Type Base
Dual Swiveling Mounting Plates

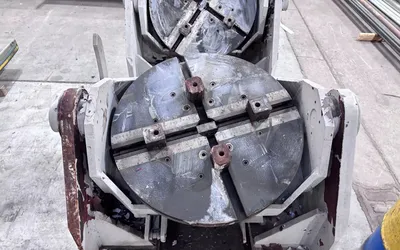

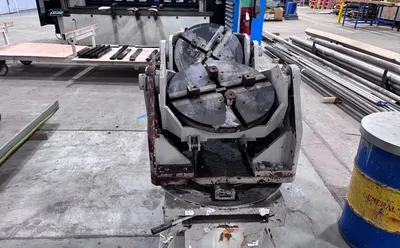

(1) Sliding 4-Jaw Mounting Plate

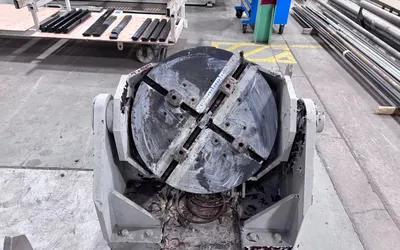

(1) Fixed 4-Jaw Mounting Plate
Two-Axis Rotating Fixtures

CATALOG SPECIFICATIONS:
Pipe Diameter, Range 2-1/2” to 14”
Pipe Length, Range 24” to 120”

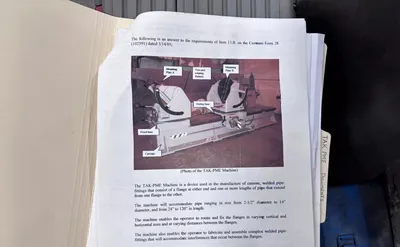

NOTE: This Machine Is Used To Manufacture Custom
Welded Pipe Fittings That Consist Of A Flange At
Either End And One Or More Lengths Of Pipe That
Extend From One Flange To The Other. Flanges Can
Be Fixed In Varying Vertical And Horizontal Axes
And At Varying Distances Between Flanges. Machine
Can Be Used To Fabricate And Assemble Complex Welded
Pipe Fittings That Will Accomodate Interferences
That Occur Between The Flanges.

F.O.B. ON WAY IN
