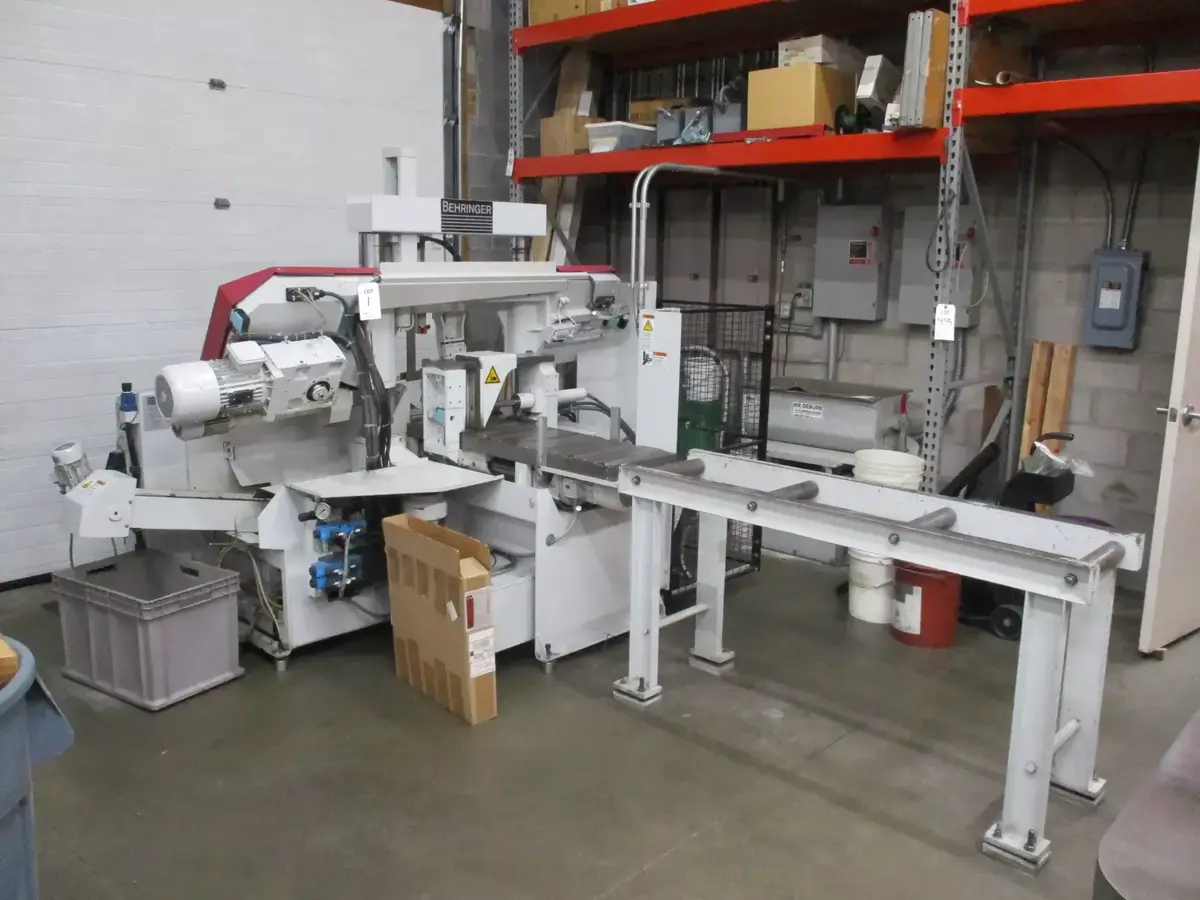

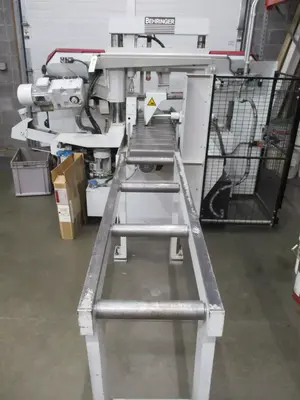

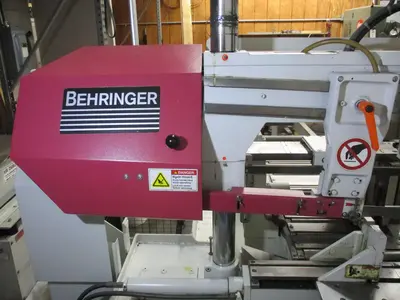

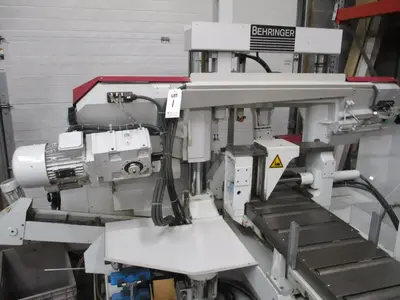

12" x 10" BEHRINGER "HBP263A-CNC-KGT" CNC HEAVY-DUTY FULLY AUTOMATIC TWIN-COLUMN HORIZONTAL BAND SAW - High Precision Ball Screw Feeding System - Hydraulic Clamping w/Variable Pressure - Chip Conveyor
11.8" X 10.2" BEHRINGER CNC HEAVY-DUTY FULLY AUTOMATIC
TWIN-COLUMN HORIZONTAL BAND SAW
New 2012, Serial No 10003961 Model HBP263A-CNC-KGT
EQUIPPED WITH:

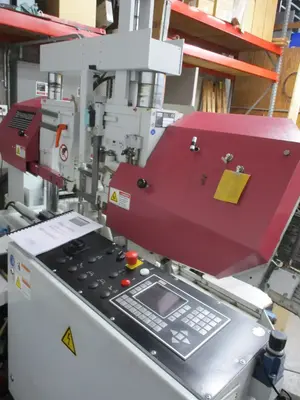

Behlringer CNC Control w/High Precision Ball Screw Feeding
Multi-Stroking
Twin Pillar Design

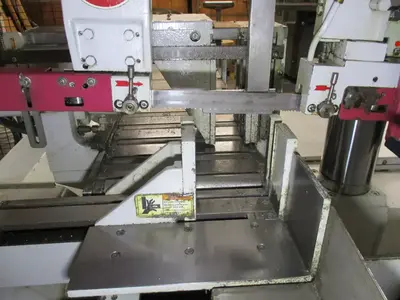

Double Vise Arrangement
Automatic-Driven Stock-Feed Table
Hydraulic Band Saw Up-Feed & Down-Feed
Automatic Hydraulic Band Tension
Automatic Swarf/Chip Conveyor
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 11.8" x 10.2"
Square Stock Capacity, Maximum 10.2" x 10.2"
Rounds Capacity, Maximum 10"
Band Length 15'3"
Band Width 1.25"
Band Thickness .042"
Blade Speeds, Infinitely Variable 65 To 460 FPM
Feed Length, Single Stroke 15.75"
Feed Length, Multi-Stroke, 393"
Feed Length, Minimum 0.39"
Blade Motor, Horsepower 5.4 HP
Overall Dimensions, L x W 99" x 75"
Overall Height 81"
Weight, Approximately 4400 LBS
NOTE: This Saw Appears To Be In Very Good Condition As Taken
From Service At Medical Device Manufacturing Facility.
The KGT In The Model Indicates The Machine Is Equipped
With CNC Controls And High Precision Ball Screw Feeding
Allowing For Higher Accuracy.
F.O.B. ON WAY IN
