26” X 13” DOALL “2613-3” CONTOUR-MATIC VERTICAL BAND SAW - Hydraulic Powered Worktable Feeds - 10 HP Drive Motor -SERVO CONTOUR Handwheel (Option)

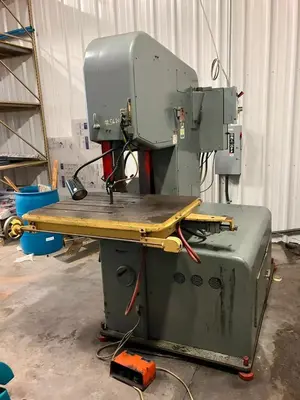

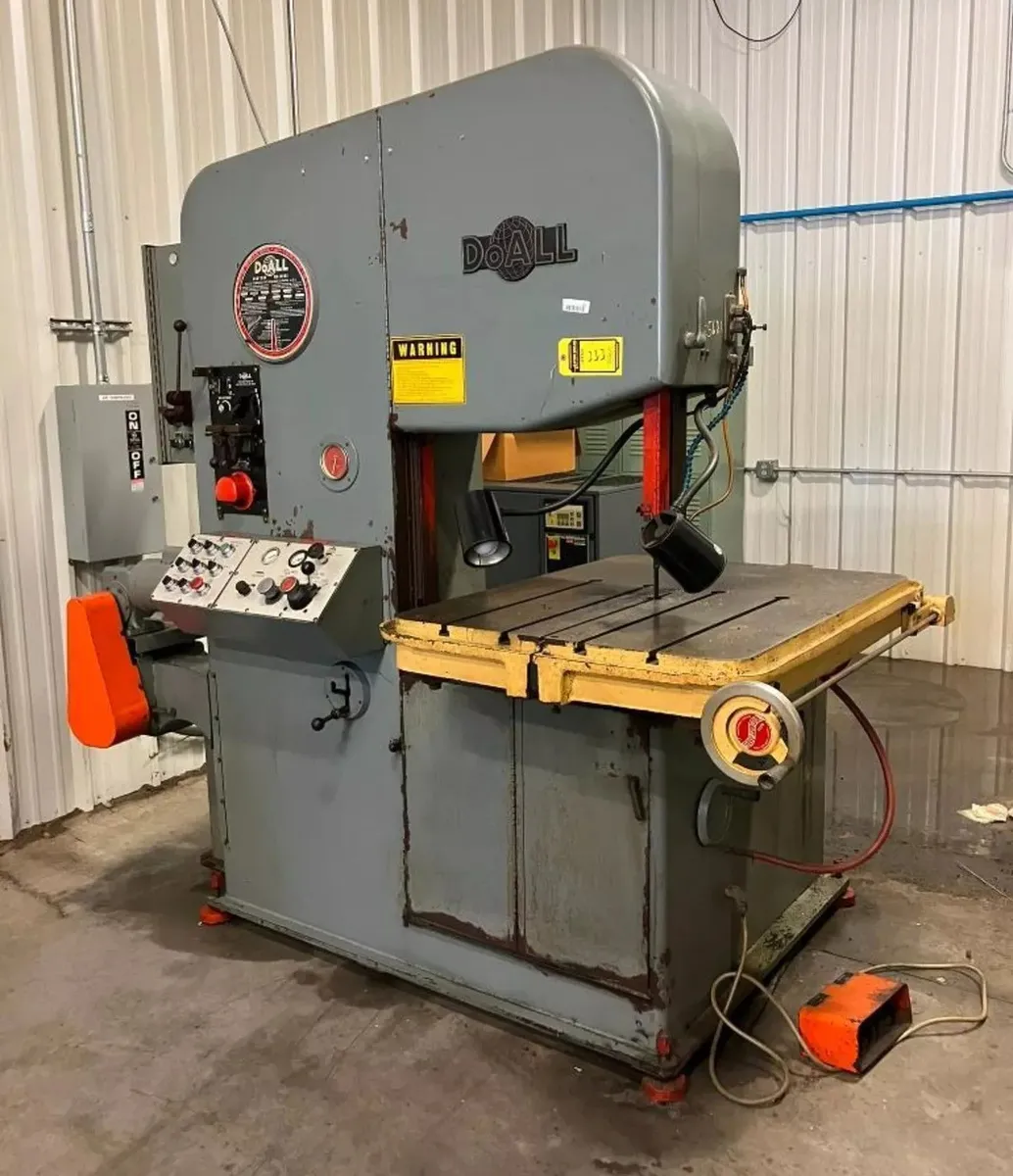

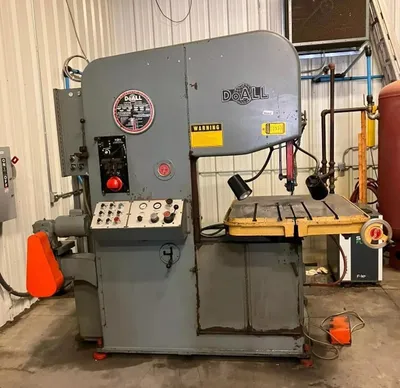

26" x 13" DOALL “CONTOUR-MATIC” VERTICAL BAND SAW

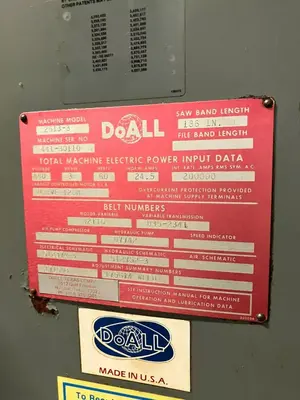

Serial No 441-90110, Model 2613-3,
Series Countour-Matic
EQUIPPED WITH:
32” x 41” Hydraulic T-Slotted Tilting Worktable
Servo-Contour Feed Handwheel (Factory Installed Option)

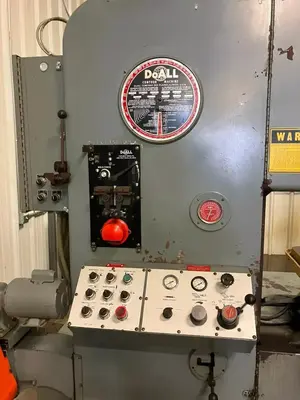

Centralized Operating Controls (Side Mounted)
DBW-15 Doall Blade Welder, Grinder, and Shear
Heavy-Duty Three Speed Transmission
SPEEDMASTER Variable Speed Drive
Hydraulic Table Feed Control
Hydraulic Band-Tension Control
Hydraulic Speed Change Control
Hydraulic Guide Post Adjustment
Hydraulic Table Tilt
Automatic Hydraulic Brake
Built-In Coolant System
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 26" x 13"
Work Height Capacity, Maximum 13"
Throat Depth, Actual 25.5"
Throat Depth, Rated 26"
Table Dimensions (Overall), W x L 32" x 41"
Table Tilt, Right 45-DEGREES
Table Tilt, Left 5-DEGREES
Table Stroke 16:
Table Feeds, Range 0 to 8 FPM
Feeding Force, Range 0 to 600 LBS
Band Length 186"
Band Width Capacity, Range 1/8” to 1”
Blade Speeds, Infinitely Variable 50 to 10000 FPM
Drive Motor, Horsepower 10 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 74" x 94"
Overall Height 89"
Weight, Approximately 4600 LBS
NOTE: This Saw Is Equipped With The Factory
Installed Servo-Contour Feed Handwheel That
Allows This Saw To Provide More Accurate Contour
Sawing.
F.O.B. ON WAY IN
