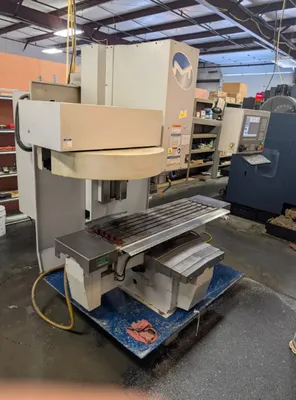

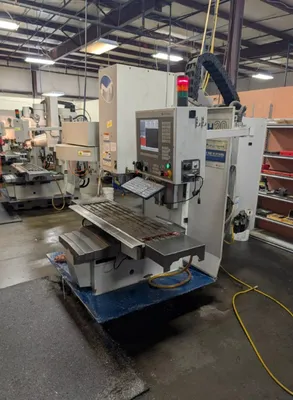

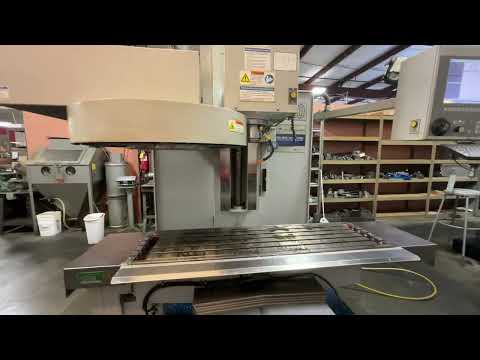

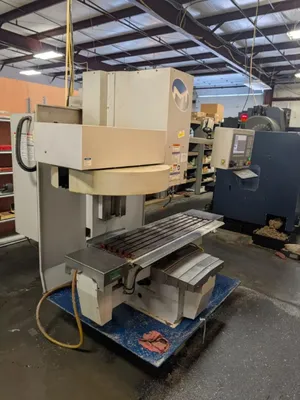

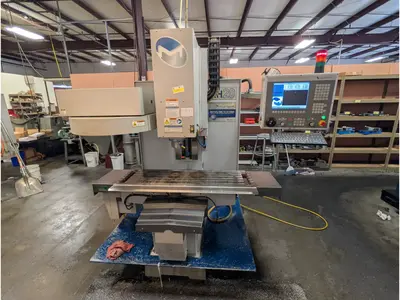

RH20 MILLTRONICS 3-AXIS CNC VERTICAL RIGID HEAD TOOLROOM BED-MILL MACHINING CENTER

RH20 MILLTRONICS CNC VERTICAL TOOLROOM RIGID-HEAD
BED MILL MACHINING CENTER
New 2015, Serial No. 12833, Model RH20,
Series Rigid Head

EQUIPPED WITH:

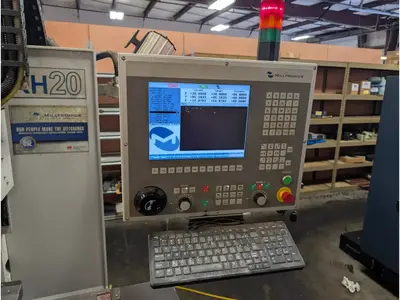

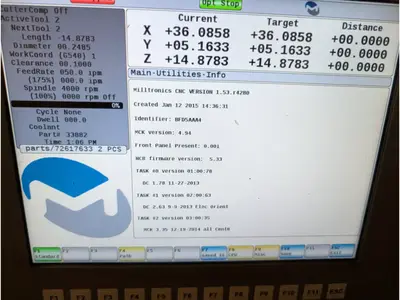

CNC Control w/Programmable RPM
Rigid Head Design - Vector Spindle Drive
24-Position Carousel Automatic Tool Changer
Telaflex Metal Way Covers - Rigid Tapping
Precision Ground Ways & Oversize Saddles
Auto Lubrication
Programmable Flood Coolant

CATALOG SPECIFICATIONS:

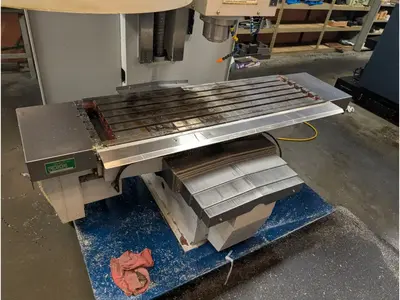

Table Working Surface 54" x 16"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 20"
Vertical Head Travel (Z-Axis) 24"
Table Load Capacity 2500 LBS

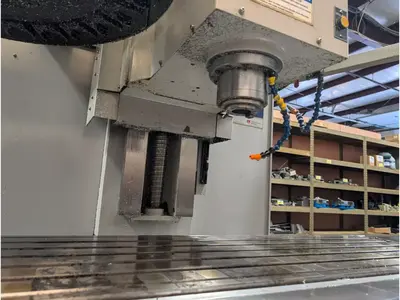

Spindle Taper CAT40
Spindle Speeds, Range 50 to 8000 RPM
Max Feedrate 300 IPM
Power Rapid Traverse Rate X,Y 500 IPM
Power Rapid Traverse Z 300 IPM
Spindle Motor, Horsepower Rating 18 HP
Weight Approximately 8000 LBS
F.O.B. ON WAY IN
