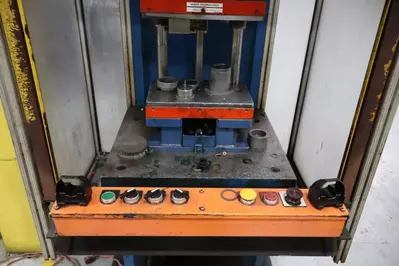

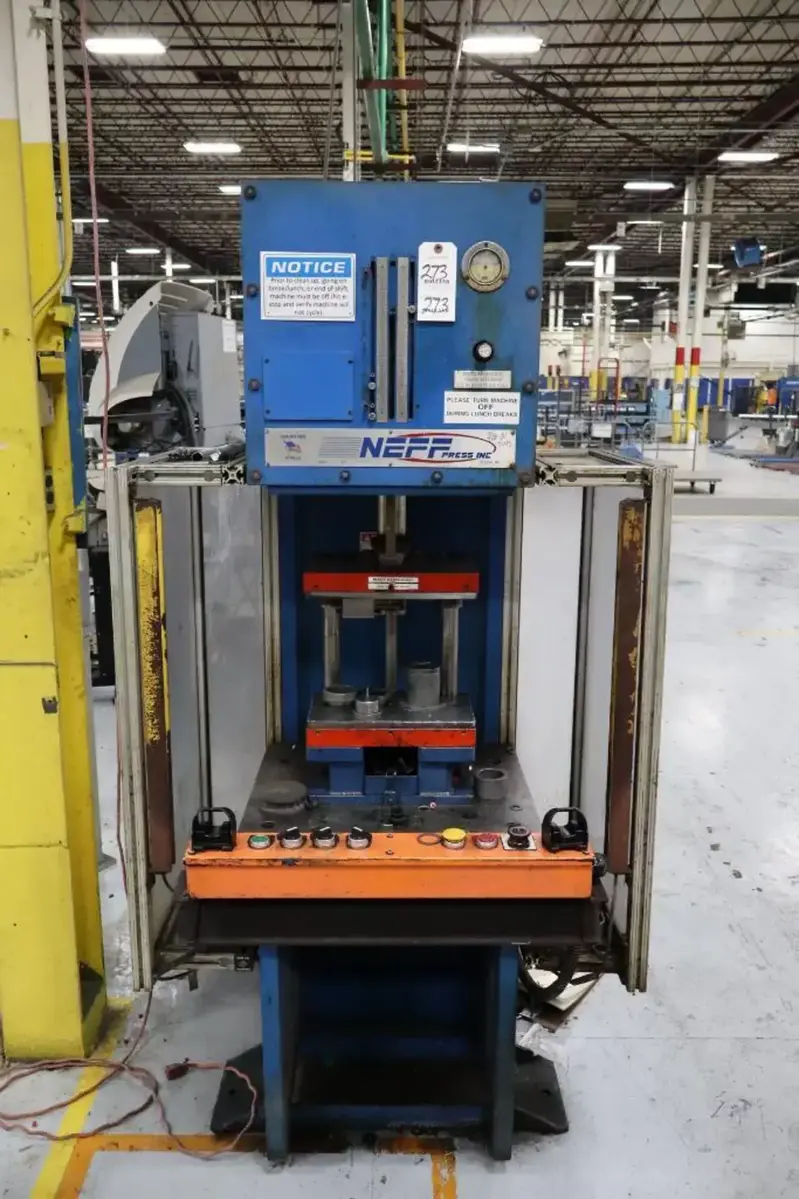

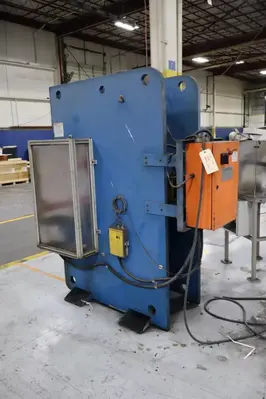

18 TON NEFF "DF15-5HS GAP FRAME FLOOR-STANDING HYDRAULIC PRODUCTION PRESS

18 TON NEFF OPEN-BACK GAP FRAME HYDRAULIC PRESS
New 2006, Serial No 12162, Model DF15-5HS

EQUIPPED WITH:
Dual Palm Button Anti-Tie Down Control
Removable Die

CATALOG SPECIFICATIONS:
Tonnage Capacity @3000 PSI 18.9 TON
Stroke Length, Adjustable .5" to 10”
Daylight, Maximum 24”
Throat Depth 10”
Bolster Size, L-R x F-B 24” x 21”
Ram Speeds 510/60/322 IPM
Cylinder Diameter 4”
Frame Width 21"
Cycles Per Minute, 1" Stroke 42 CPM
Cycles Per Minute, 2" Stroke 30 CPM
Cycles Per Minute, 4" Stroke 23 CPM
Cycles Per Minute, 6" Stroke 19 CPM
Cycles Per Minute, 10" Stroke 16 CPM
Operating Pressure, Maximum 3000 PSI
Hydraulic Motor Horsepower 5 HP
Hydraulic Reservoir Capacity 12 GALLONS
Electrical System 460/3/60
Overall Dimensions, W x D 35" x 58"
Overall Height 80"
Weight Approximately 5500 LBS

NOTE: Replacement Price Is Over $85,000.00

F.O.B. ON WAY IN
