24”/35” X 120” MAZAK/HERCULES/AJAX "MAZAK 24" GAP-TYPE ENGINE LATHE - Taper Attachment
Have one to sell?
ConditionUsed
1 available
$17,500.00 USD
24”/35” MAZAK/HERCULES/AJAX "MAZAK 24" GAP-TYPE ENGINE LATHE - Taper Attachment - Inch/Metric Threading - 3 & 4 Jaw Chucks - 24 1/2 " Swing Over Bed - 35” Swing Thru Gap - 14 1/2" Swing Over Cross Slide - 2” Hole Thru Spindle

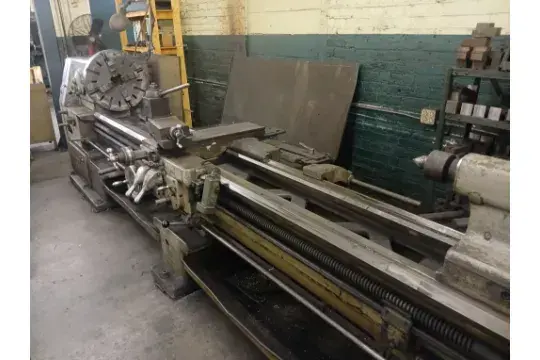

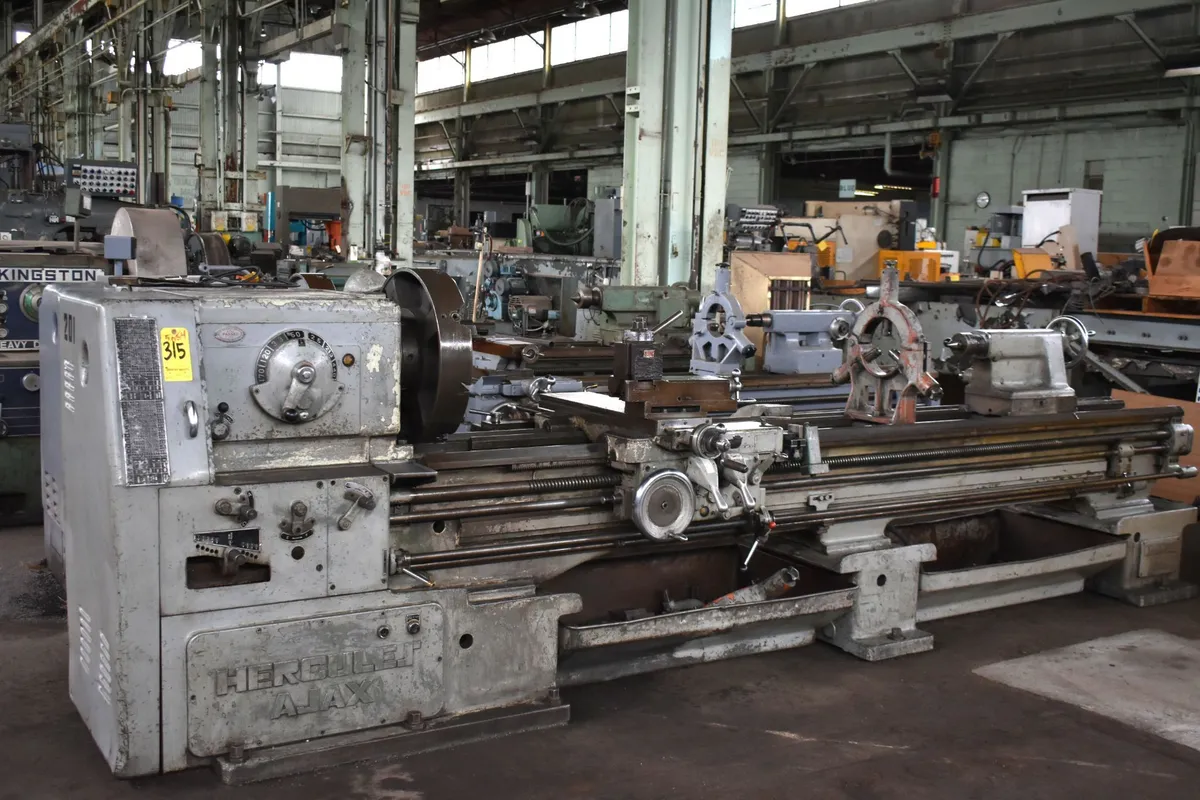

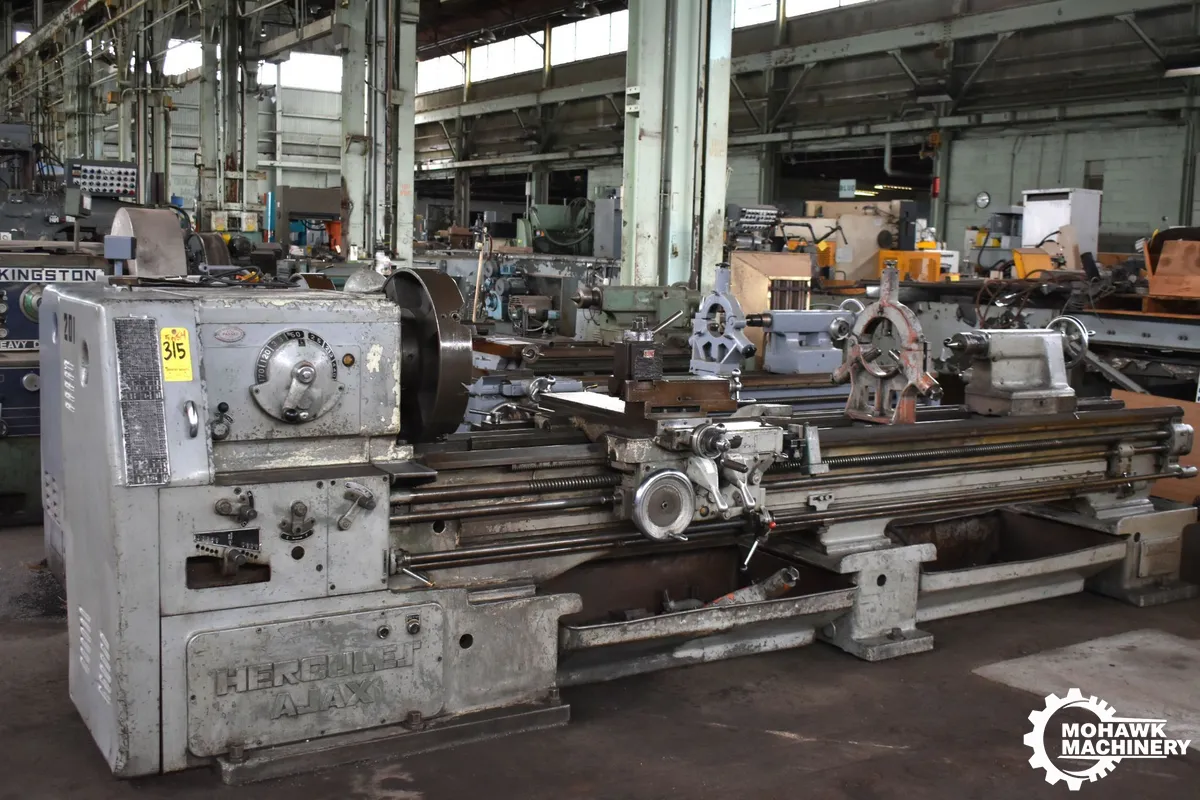

24/35” x 120” MAZAK/HERCULES/AJAX GAP-TYPE ENGINE LATHE
Serial No 8619, Model MAZAK 24,
EQUIPPED WITH:
Taper Attachment
Inch-Metric Threading
Removable Gap
Power Rapid Traverse
21" 3-Jaw Chuck w/Jaws
22" 4-Jaw Chuck w/Jaws
Steady Rest - Follow Rest
Aloris Tool Post
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2”
Swing Over Bed Ways 24”
Swing Thru Gap 35”
Distance Between Centers 120”
Swing Over Cross-Slide 14.5”
Spindle Speeds, Range 25 to 1540 RPM
Thread Range, Inch 2 to 128 TPI
Diametral Threads, Range 8 to 64 DP
Thread Range, Metric .25 to 16 TPMM
Module Threads, Range .5 to 4
Motor Horsepower HP
Overall Dimensions, L x W 204” x 60”
Overall Height 65”
Weight Approximately 13500 LBS
F.O.B. OUR WAREHOUSE
