10’ x 1/4” CINCINNATI INC “2CC10” MECHANICAL POWER SQUARING SHEAR - MGCII Microcomputer Gage Control

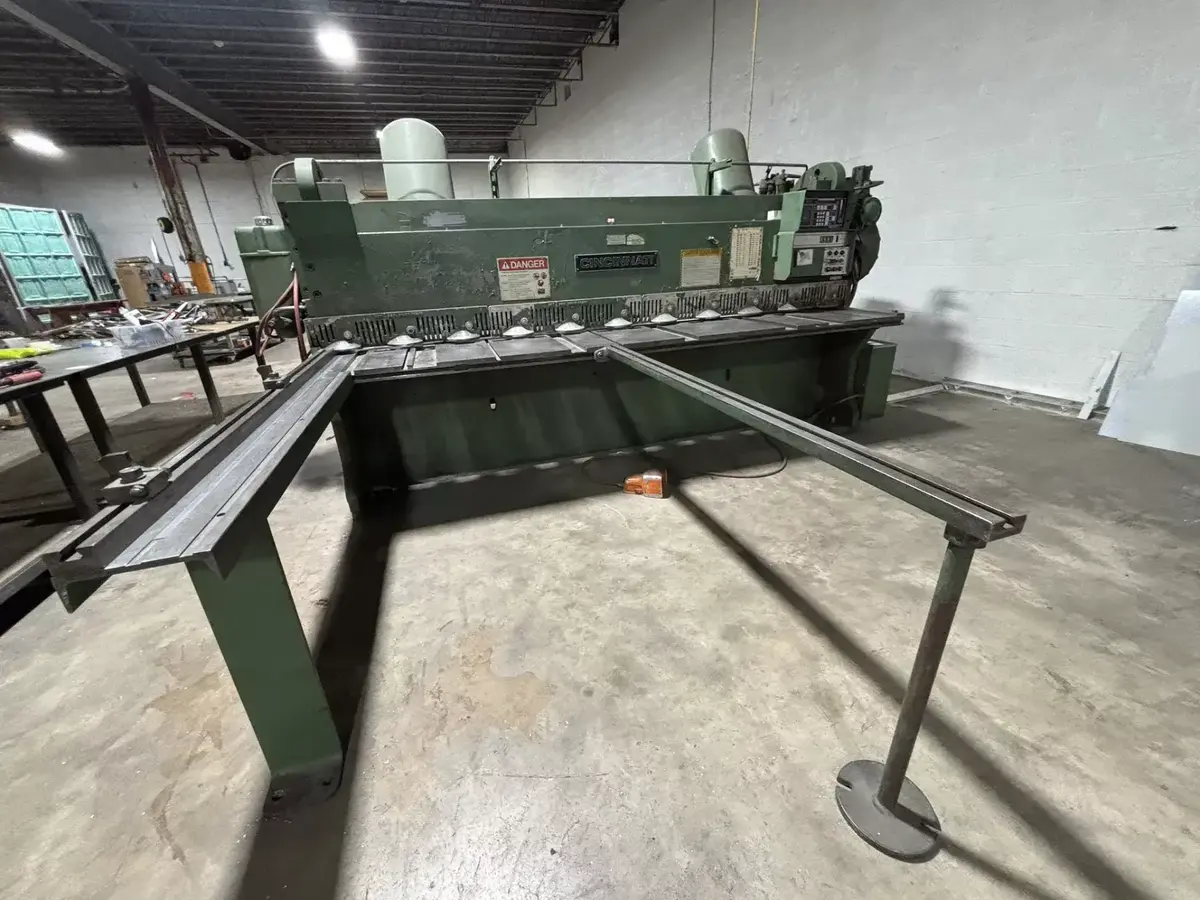

10' X 1/4" CINCINNATI INC "2CC10" CNC MECHANICAL
POWER SQUARING SHEAR
Serial No 44483, Model 2CC10,

EQUIPPED WITH:
Cincinnati "MGCII" Microcomputer Gage Control
36" Front Operated Power Back Gauge
Air Actuated Mechanical Clutch
With Electric Foot Switch Operation
Hydraulic Hold-Downs -
Squaring Arm & Front Support
Spring Ram Counterbalance
Automatic Pressure Lubrication System

CATALOG SPECIFICATIONS:
Capacity, Mild Steel 10' x 1/4"
Length Between Housings 10'2-3/4"
Knife Size 126” x 3” x 1”
Strokes Per Minute 60 SPM
Gap Length 3.75"
Rake, Taper Per Foot 1/4"
Hold-Down Force 8-TONS
Hold-Downs to Knife Edge 5/8"
Distance Under Hold-Downs 1/2"
Table Height 32"
Motor Horsepower 7.5 HP
Overall Dimensions, L x W 13'1" x 7'
Overall Height, Above Floor 6'6"
Weight, Approximately 17000 LBS.

NOTE: The Microcomputer Gage Control Allows You To
Preprogram Back Gauge Positions And To Individually
Or Automatically Sequence The Back Gauge To Those
Positions.

F.O.B. OUR WAREHOUSE
