18” x 18” MARVEL ARMSTRONG BLUM “8" TILTING-HEAD VERTICAL BAND SAW

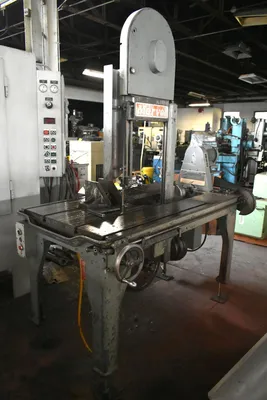

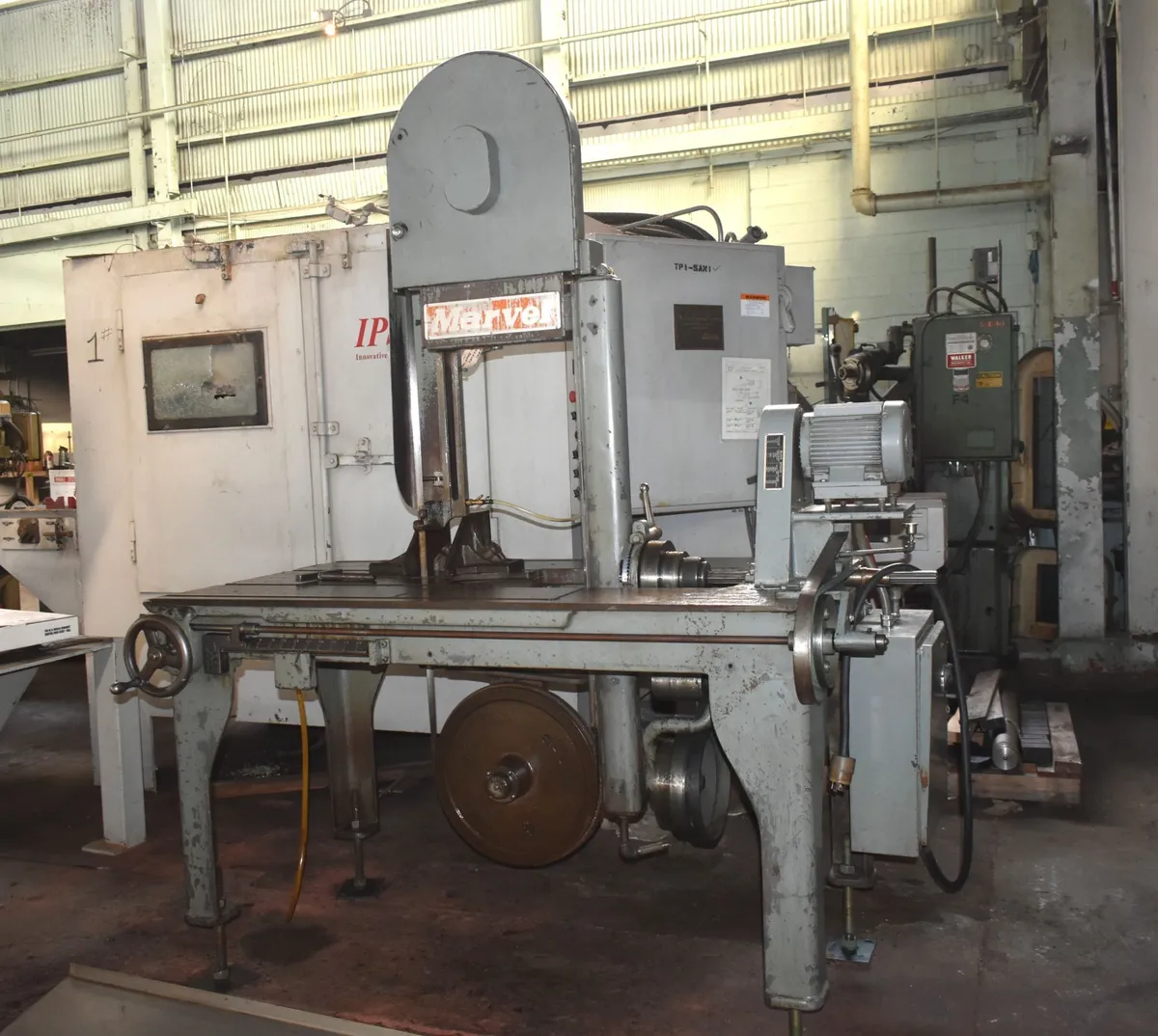

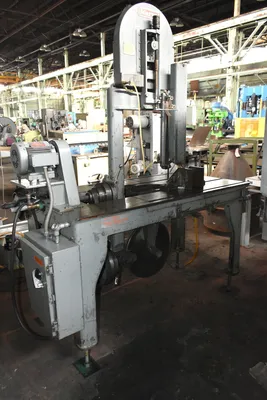

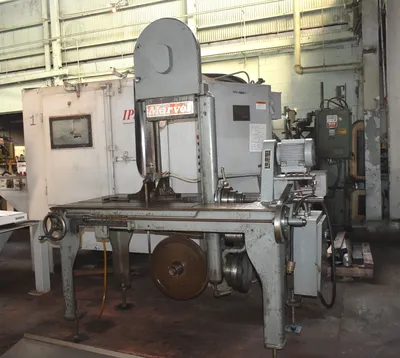

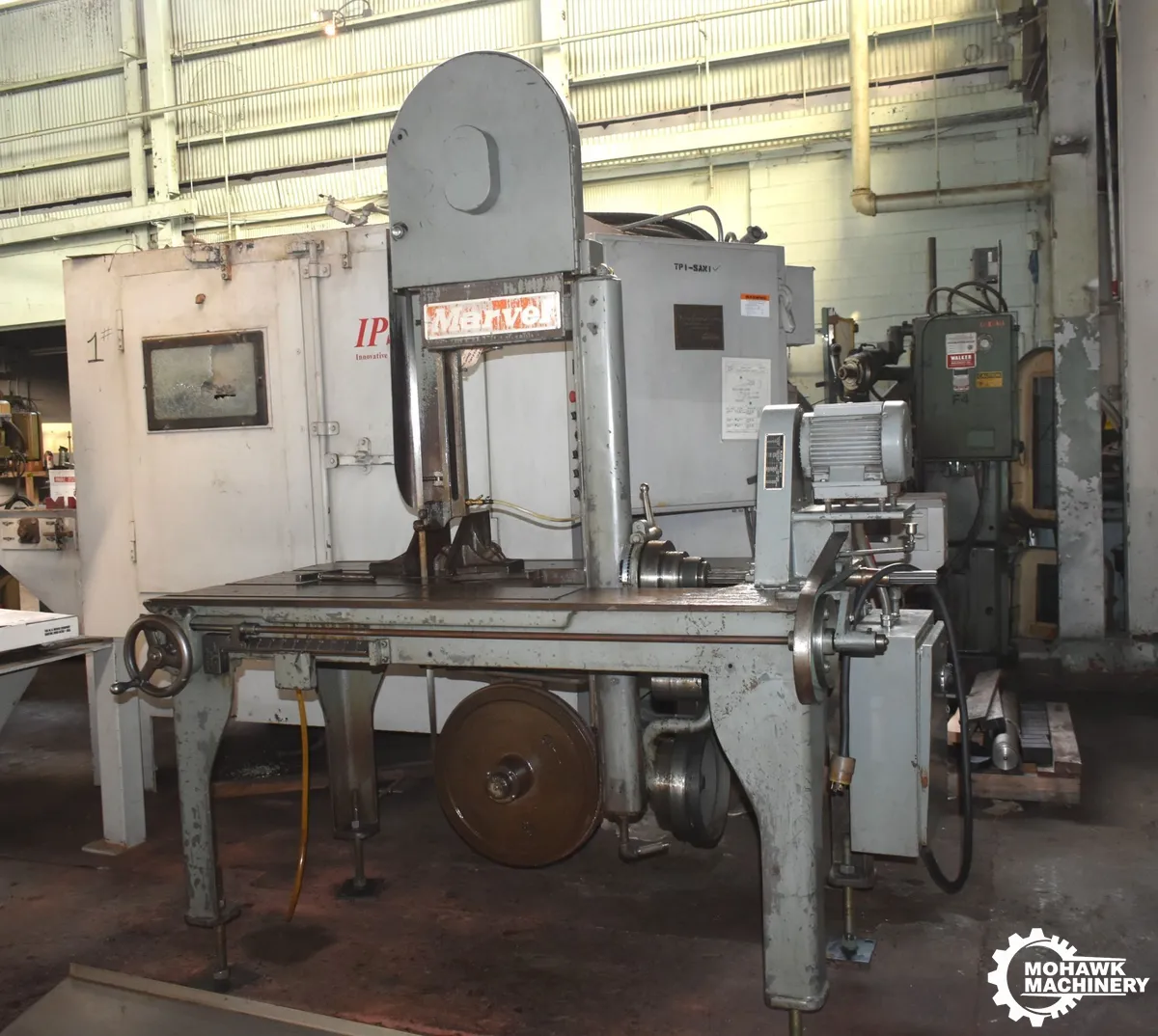

18" x 18" MARVEL ARMSTRONG BLUM TILTING-HEAD VERTICAL BAND SAW
Serial No 810893, Model 8, Series 8

EQUIPPED WITH:
Tilting-Head Design
Manual Vise

CATALOG SPECIFICATIONS:
Work Capacity, Nominal 18" x 18"
Work Capacity, Maximum 23" x 18.75"
Work Capacity, 45-Degree Blade Angle 15.5" x 18.75"
Table Working Surface, W x L 32.75" x 25.5"
Table Tilt, Left 45-DEGREES
Table Tilt, Right 45-DEGREES
Blade Length 14'8"
Blade Width 0.75"
Blade Thickness .032"
Blade Speeds, Range 58 to 200 FPM
Main Motor, Horsepower/RPM 1 HP/1720 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 3'11" x 6'7"
Overall Height 7'
Weight, Approximately 2425 LBS

F.O.B. OUR WAREHOUSE
