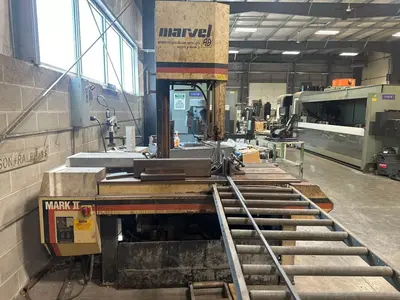

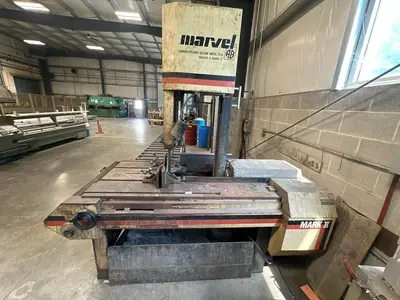

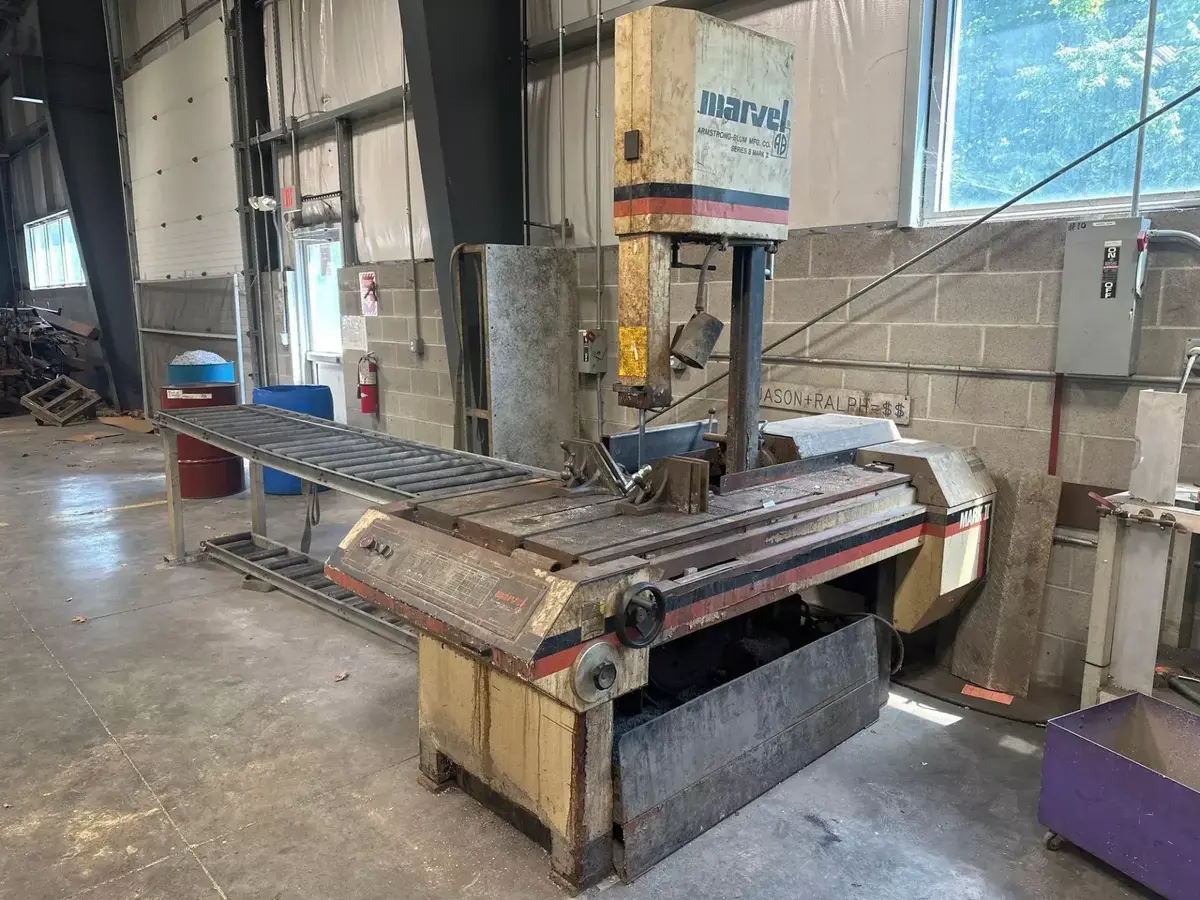

18" x 22" MARVEL ARMSTRONG BLUM SERIES 8 MARK II TILTING-HEAD VERTICAL BAND SAW

18" x 22" MARVEL UNIVERSAL TILTING-HEAD VERTICAL BAND SAW

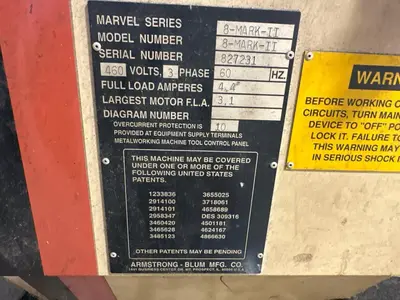

Serial No 827231, Series 8, Model MARK II

EQUIPPED WITH:
Tilting-Head Design (Left & Right)
Automatic Blade Tensioning
Adjustable Feed Pressure
(2) Manually Operated Vise
Coolant (Built-In)

CATALOG SPECIFICATIONS:
Work Capacity, Rectangle 18" x 22"
Work Capacity, Round 18”
Work Capacity, Square 18”
Work Capacity, 45-Degree Blade Angle 18" x 12.75"
Throat Depth, Rated 18"
Table Working Surface, W x L 24.25” x 33”
Table Height 34.5”
Head Tilt, Left 45-DEGREES
Head Tilt, Right 45-DEGREES
Blade Length 174”
Blade Width 1"
Blade Thickness 0.035”
Blade Wheels Diameter 20”
Blade Speeds, Infinitely Variable 50 to 450 FPM
Feed Force, Infinitely Variable 0 to 140 LBS
Motor Horsepower 5 HP
Weight, Approximately 2900 LBS

F.O.B. ON WAY IN
