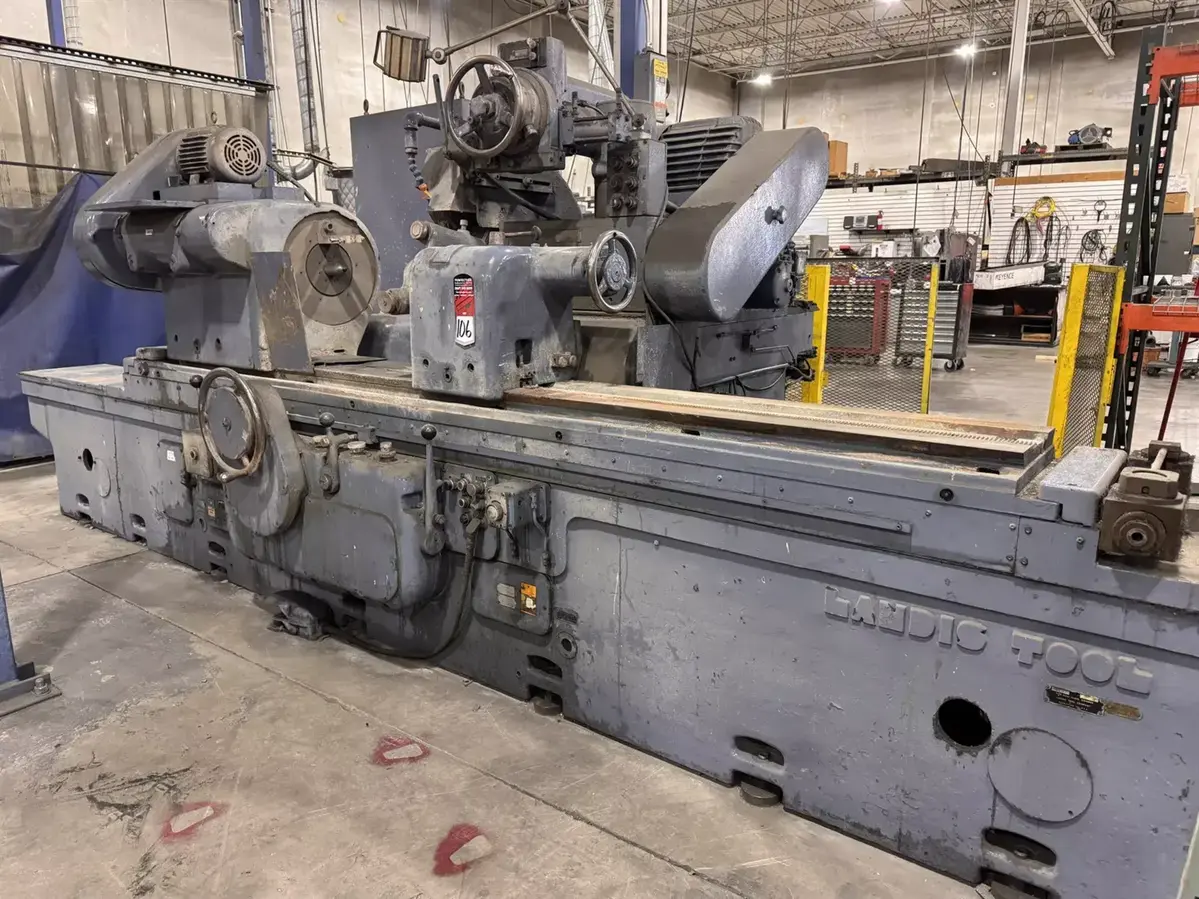

24" X 72" LANDIS "LCHH" HEAVY-DUTY PLAIN HYDRAULIC CYLINDRICAL GRINDER

24" x 72" LANDIS HEAVY-DUTY PLAIN HYDRAULIC CYLINDRICAL GRINDER

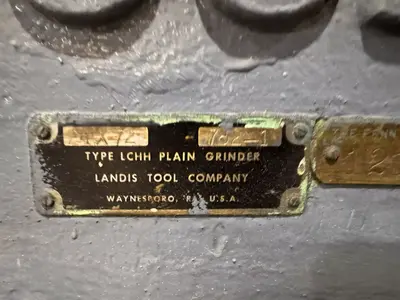

Serial No 782-1, Model LCHH,

EQUIPPED WITH:

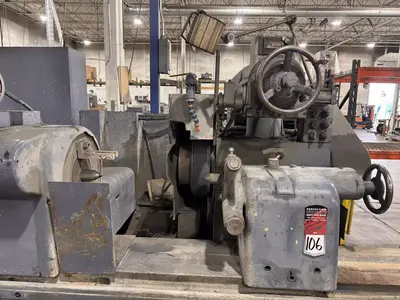

Dead Spindle Workhead w/5 HP Allen Bradley Vari-Speed Drive

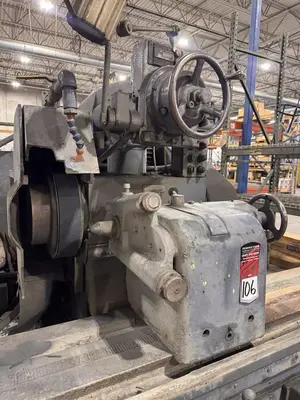

Handwheel Footstock w/Mounted Diamond Wheel Dresser
Foot Operated Jog Button For Workhead
Hydraulic Longitudinal Table Feed
Hydraulic Automatic Wheel In-Feed
Automatic Lubrication
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 24.9375"
Grinding Diameter, Maximum 24"
Distance Between Centers, Nominal 72"

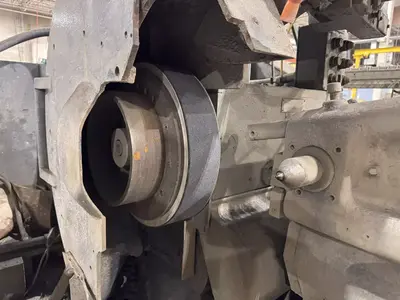

Grinding Wheel Diameter, Standard 30"
Grinding Wheel Width, Standard 3” or 4"
Grinding Wheel Hole Diameter 12"
Swivel Table Graduated, Included Angle 15-DEGREES
Swivel Table Taper Per Foot 2.75"
Longitudinal Table Traverse Feed, Variable 3 to 240 IPM

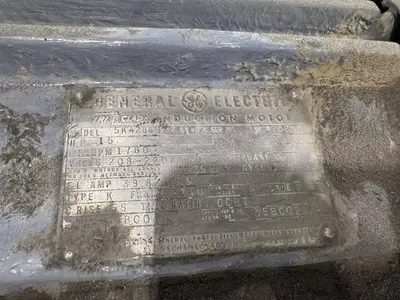

Grinding Wheelhead Spindle Motor 15 HP
Workhead Motor Horsepower 5 HP
Hydraulic Motor, Horsepower 5 HP
Overall Dimensions, L x D 21'2" x 8'
Weight, Approximately 30000 LBS

F.O.B. OUR WAREHOUSE
