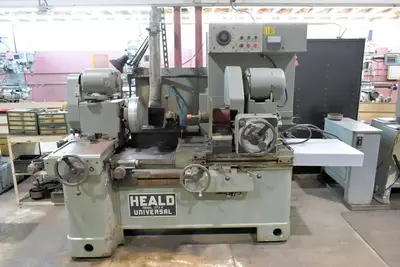

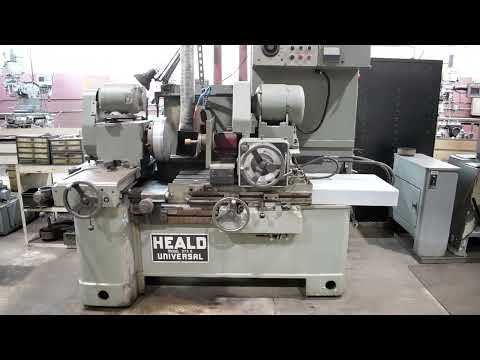

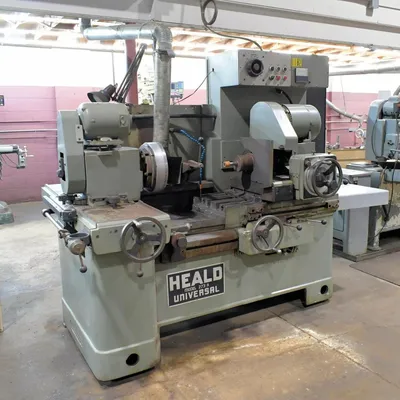

273A HEALD "UNIVERSAL" INTERNAL GRINDER w/FACE GRINDING & HEALD "RED HEAD" GRINDING SPINDLE

273A HEALD UNIVERSAL INTERNAL GRINDER
SERIAL NO , MODEL 273A, SERIES UNIVERSAL

EQUIPPED WITH:
Face Grinding Attachment (4-Position Turret Type)
Heald "Red Head" Grinding Spindle
11000 RPM Heald "Red Head" Grinding Spindle
Behind-Wheel Dresser
Sine-Bar Swivel Attachment
Magnetic Chuck
Coolant Tank & Pump

CATALOG SPECIFICATIONS:
Swing Over Table, Workhead Parallel 24.5"
Swing Inside Coolant Splash Guard 20"
Swing w/Workhead @ 90-Degrees 13"
Workhead Flange to Wheelslide, Range 0 to 29.06"
Bore Length Ground, Maximum 16"
Grinding Stroke, Minimum .125"
Grinding Stroke, Maximum 16"
Table Longitudinal Travel 20"
Wheelhead Cross-Slide Travel 1.5"
Workhead-Slide Travel, Positioning 17.5"
Workhead Swivel Angle, Maximum 90-DEGREES
Workhead Spindle Speeds, Range 0 to 500 RPM
Grinding Table Speeds, Infinite 0 to 18 FPM
Power Rapid Table Traverse 18 FPM
Grinding Spindle Motor, Horsepower 5 HP/3500 RPM
Overall Dimensions, W x D 8'0" x 91"
Weight, Approximately 6200 LBS

OPERATION: With the FACE GRINDING Attachment this
Machine is in Effect THREE MACHINES-IN-ONE...
1) INTERNAL Grinder - 2) EXTERNAL Grinder
3) FACE or ROTARY SURFACE Grinder
