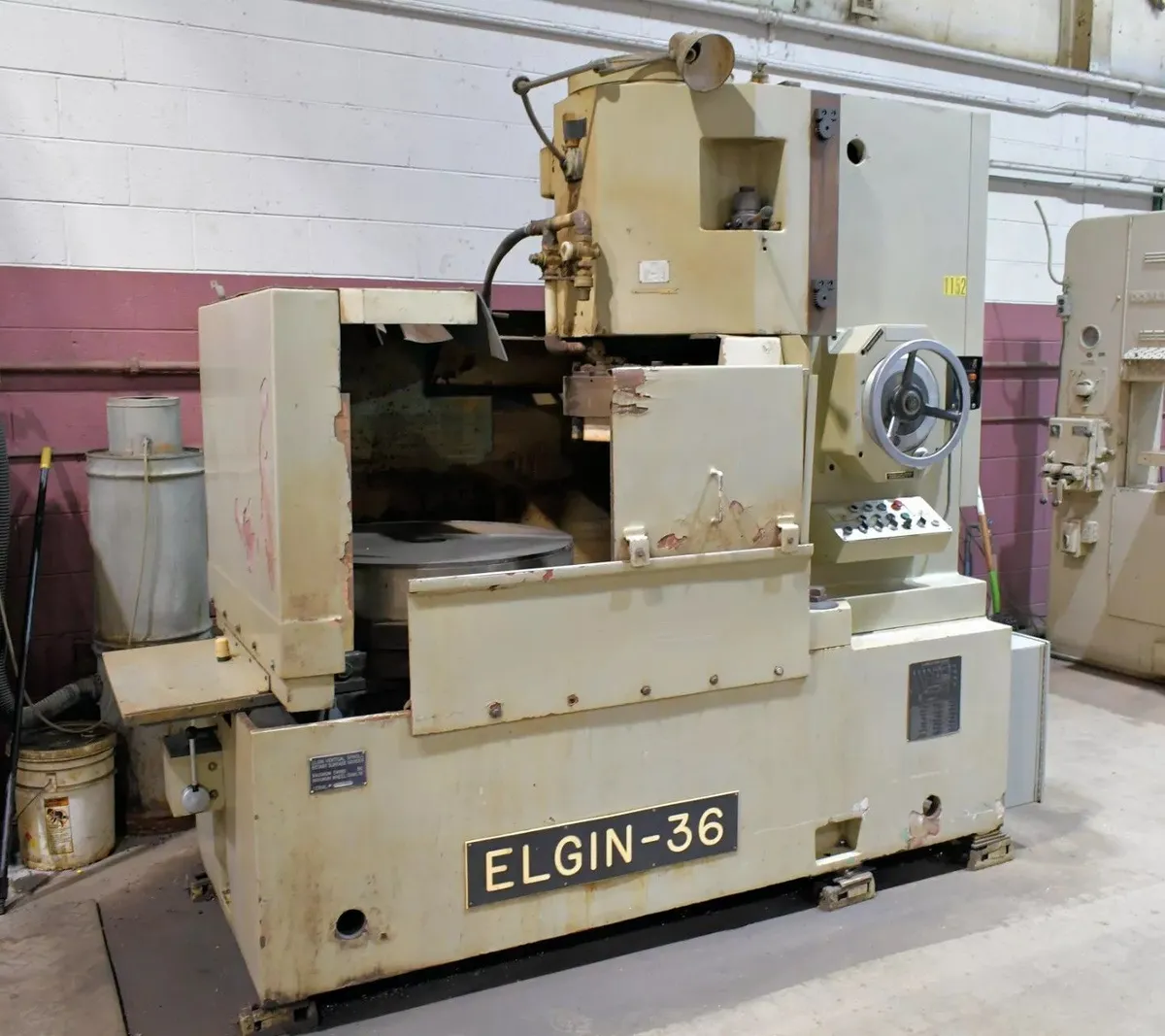

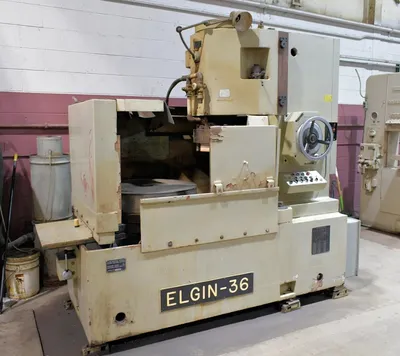

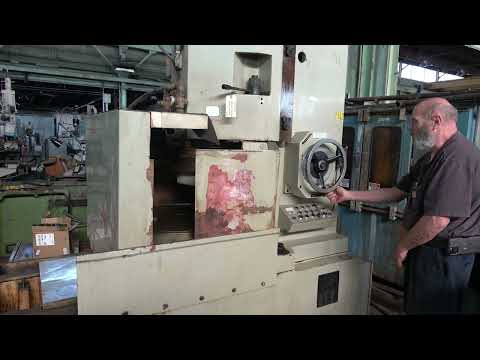

36" ELGIN "B-36" VERTICAL SPINDLE ROTARY SURFACE GRINDER

36" ELGIN VERTICAL SPINDLE ROTARY SURFACE GRINDER

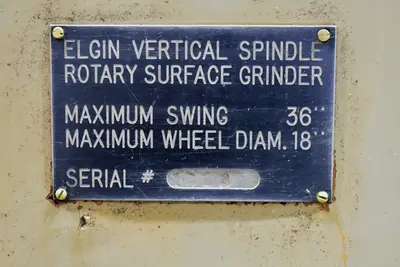

Serial No. 1323, Model 36

EQUIPPED WITH:

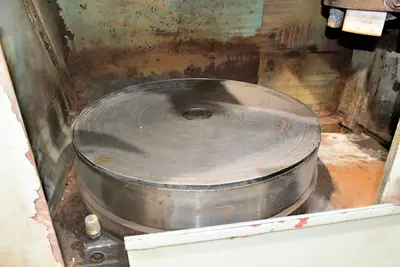

30-1/2" Diameter Magnetic Chuck

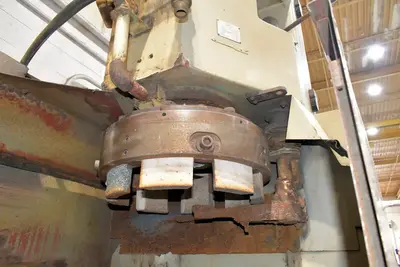

18" Segmented Grinding Wheel

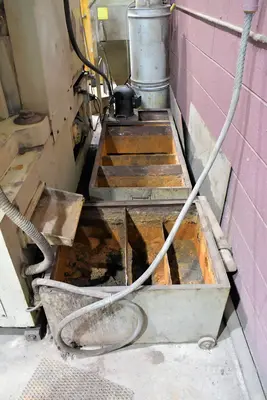

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 30-1/2"
Swing Between Coolant-Guards, Max. 36"
Grinding Wheel, Diameter 18"
Grinding Wheel, Hole Diameter 6"
Height Of Workpiece, Maximum 12"
(2) Chuck Speeds 15.6 & 24 RPM
Grinding Wheel Speed 1000 RPM
Power Down Feeds, Range .0001 to .0024 IPM
Rapid Elevating Speed 11 IPM
Chuck In-Feeds, Range 80 to 165 IPM
Travel of Table Carriage 18"
Distance Between Spindle
Face & Table, Maximum 17"
Spindle Motor, KW 25 KW 34 HP
Electrical System 220/3/60
Overall Dimensions, L x W 8'4" x 3'11"
Overall Height 7'4"
Weight, Approximately 14,000 LBS

F.O.B. OUR WAREHOUSE
