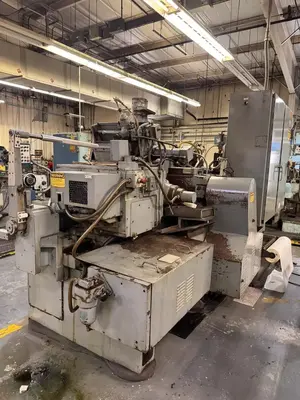

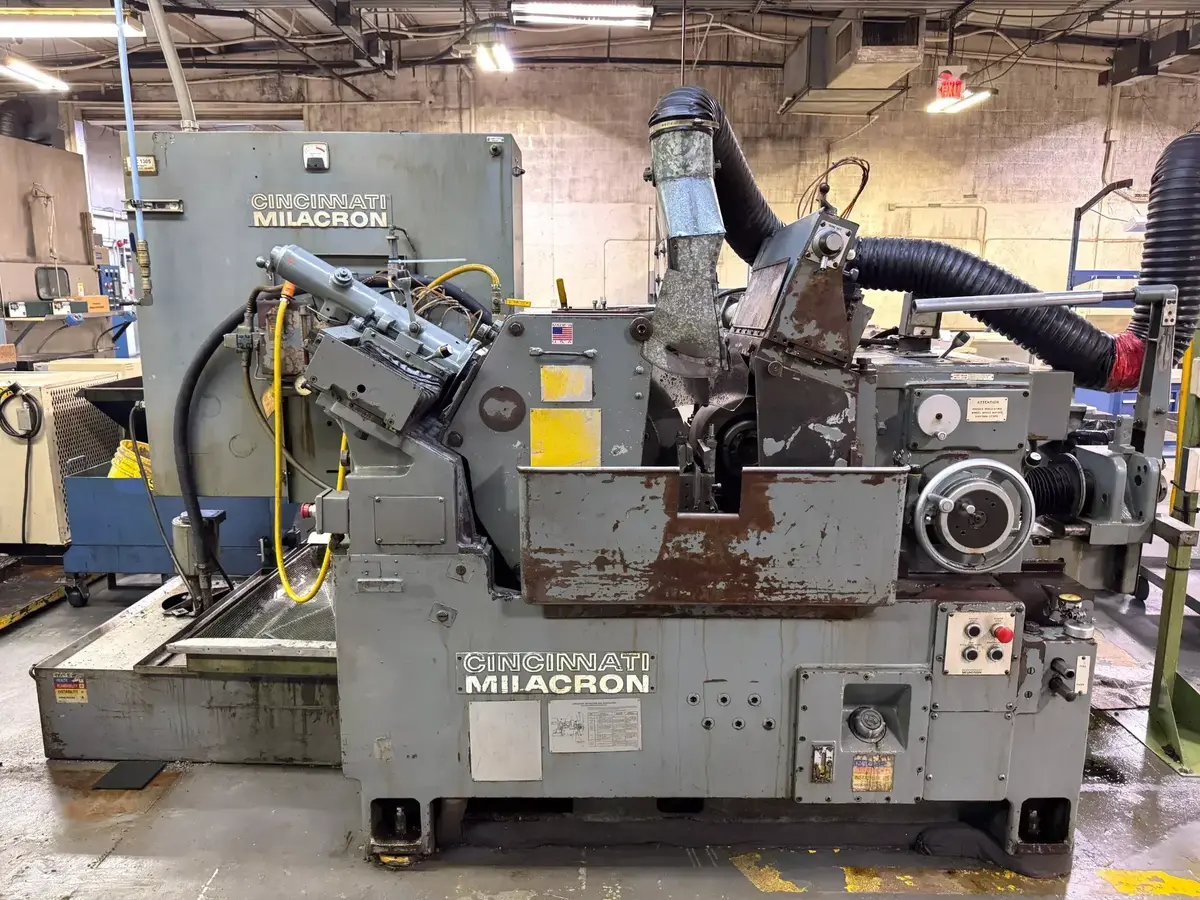

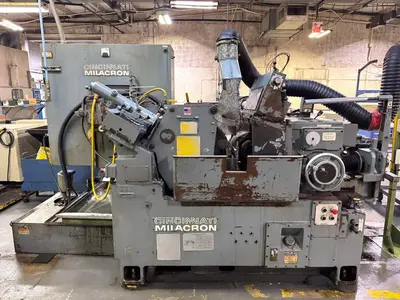

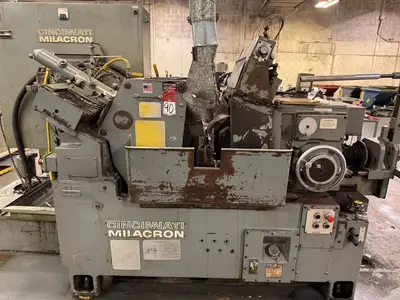

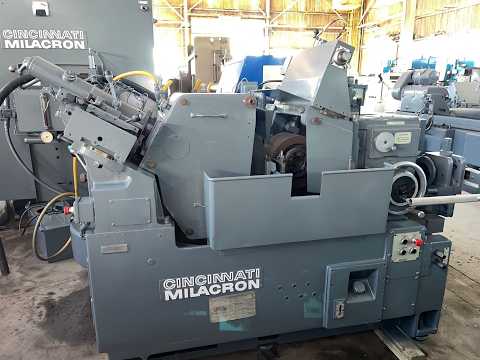

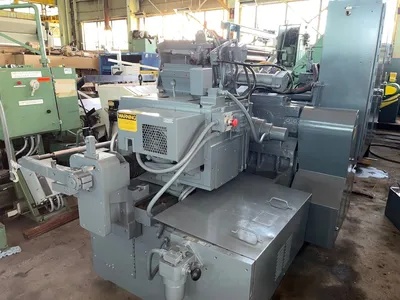

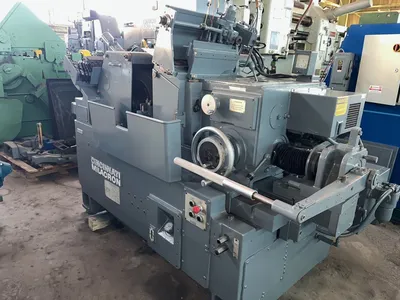

220-8 CINCINNATI-MILACRON “DR” CENTERLESS GRINDER

220-8 CINCINNATI-MILACRON CENTERLESS GRINDER

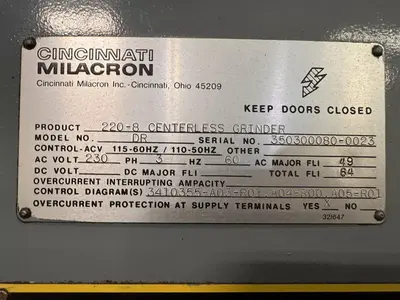

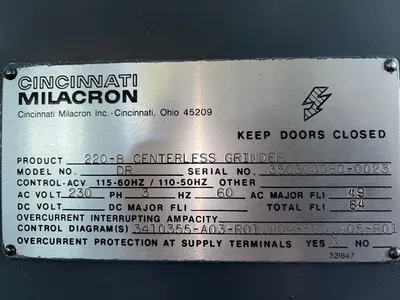

Serial 359300080-23, Model 220-8, Ltr DR

EQUIPPED WITH:

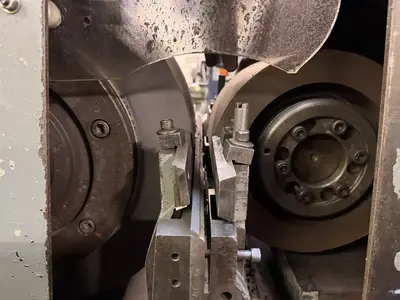

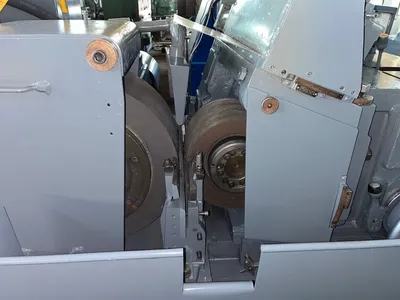

Thru-Feed Workrest

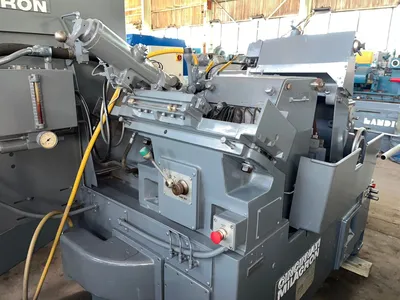

Hydraulic Grinding Wheel Profile Diamond Truing
Hydraulic Regulating Wheel Profile Diamond Truing
Manual Infeed

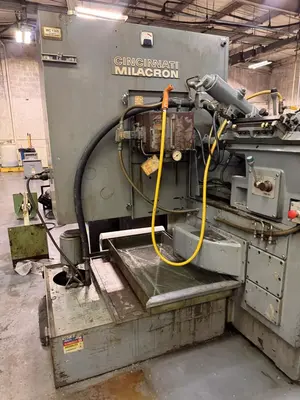

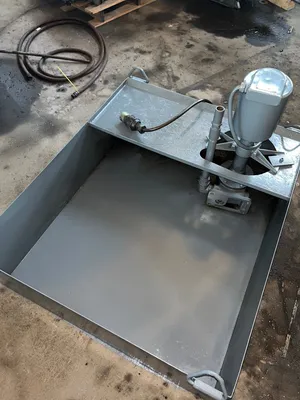

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Diameter Capacity, Nominal 0" to 3"
Diameter Capacity, Maximum 4.5"
Grinding Wheel Diameter, Minimum 15"
Grinding Wheel Diameter, Maximum 24"
Grinding Wheel Width, Maximum 8"
Grinding Wheel Hole Diameter 12"
Regulating Wheel Diameter, Minimum 9.75"
Regulating Wheel Diameter, Maximum 13"
Regulating Wheel Width, Maximum 8"
Regulating Wheel Hole Diameter 5"
Regulating Wheel Speeds, Low Range 15 to 56 RPM
Regulating Wheel Speeds, High Range 56 to 300 RPM
Grinding Wheel Motor, Horsepower 20 HP
Regulating Wheel Motor, Horsepower 1.5 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 10'10" x 7'11"
Weight, Approximately 13000 LBS

F.O.B. ON WAY IN
