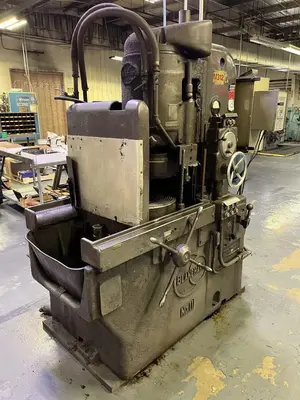

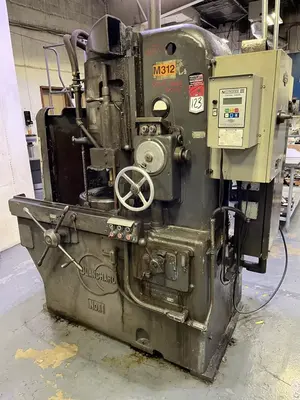

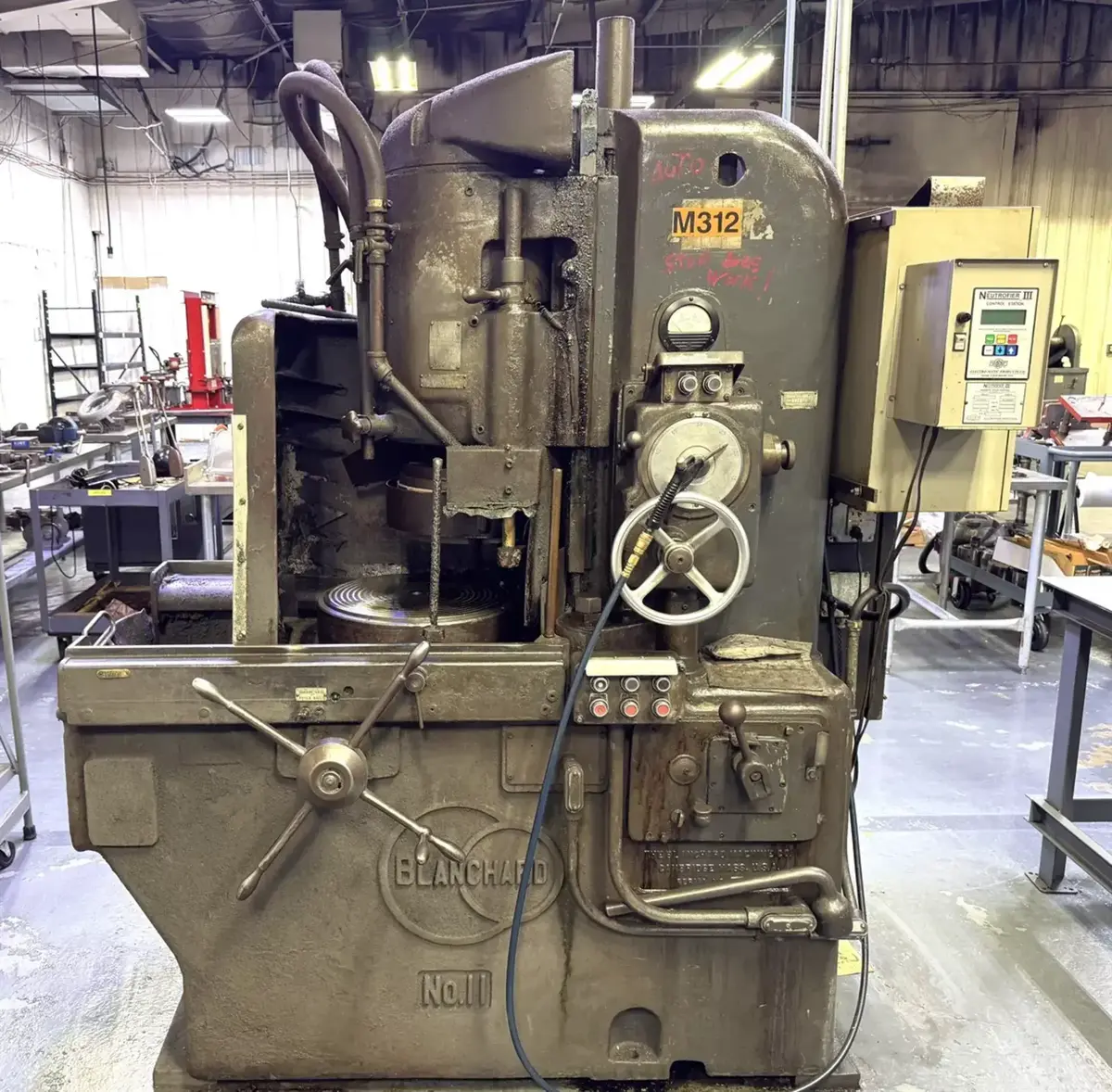

20” BLANCHARD “11-20” VERTICAL SPINDLE ROTARY SURFACE GRINDER

20” BLANCHARD VERTICAL SPINDLE ROTARY SURFACE GRINDER

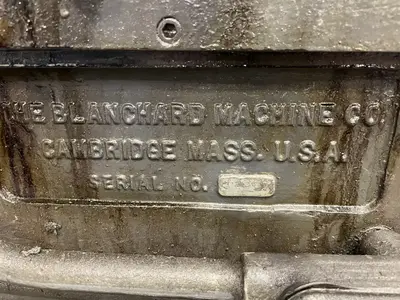

Serial No. 12361, Model 11-16

EQUIPPED WITH:

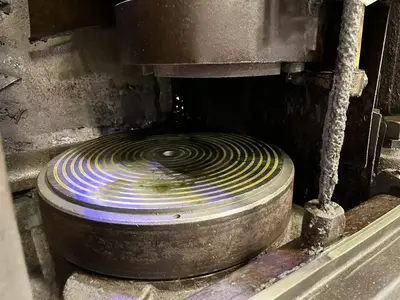

20” Diameter Electro-Magnetic Chuck w/Updated

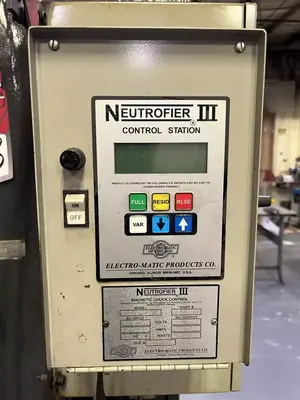

Neutrofier III Magnetic Chuck Control

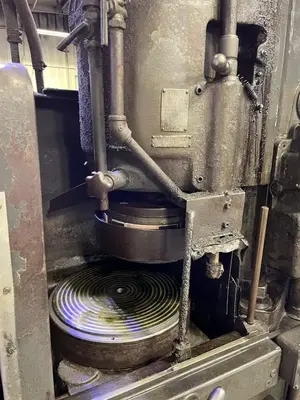

11” Segmented Grinding Wheel

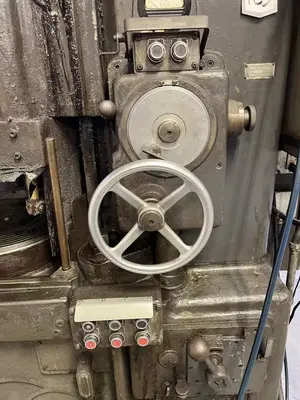

Rapid Traverse To Head
Load Meter
Bijur One-Shot Lube System
Coolant System

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 20"
Swing Between Coolant-Guards 22"
Height Under Grinding Wheel, Maximum 9"
Grinding Wheel, Diameter 11"
Grinding Wheel, Width 5"
Grinding Wheel, Hole Diameter 9"
(4) Chuck Speeds, Range 15 to 64 RPM
Power Down Feeds, Range .003 to .070 IPM
Maximum Unbalanced Work Load 500 LBS.
Spindle Motor, Horsepower 15 HP
Overall Dimensions, L x W 72" x 42"
Maximum Overall Height 81"
Weight, Approximately 6500 LBS.

F.O.B. ON WAY IN
