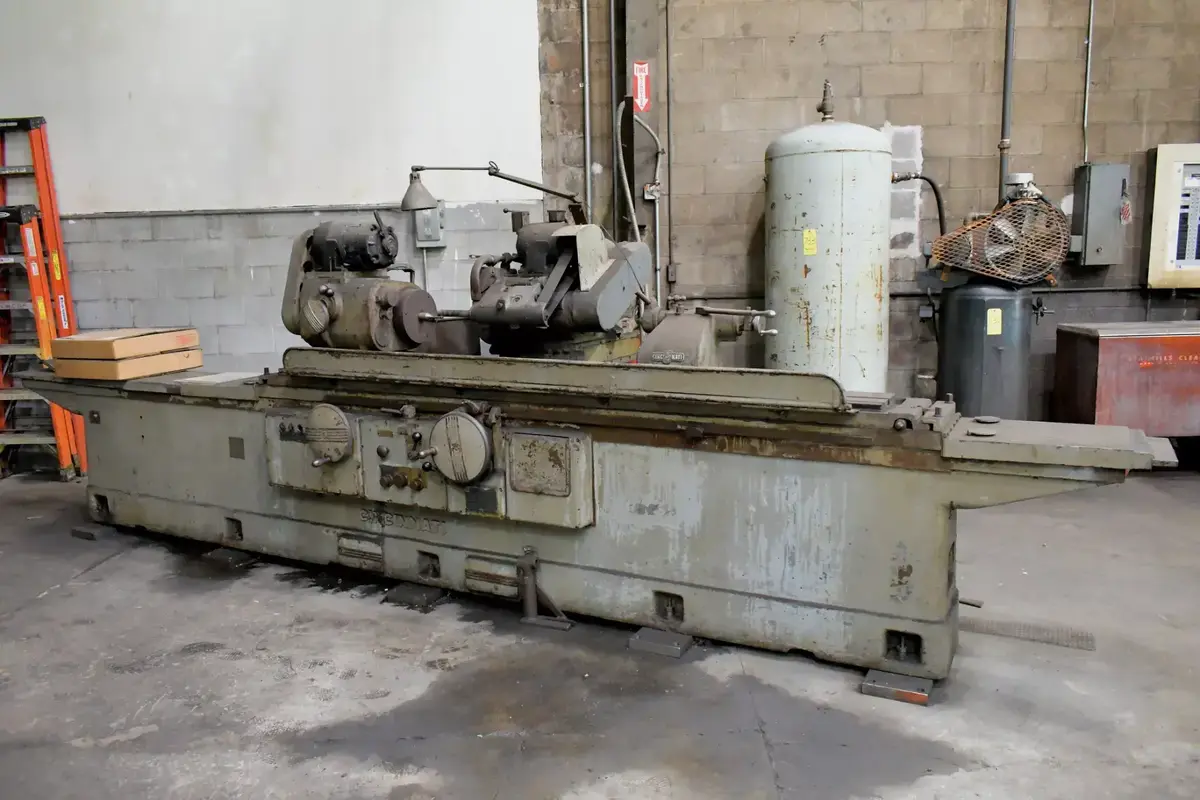

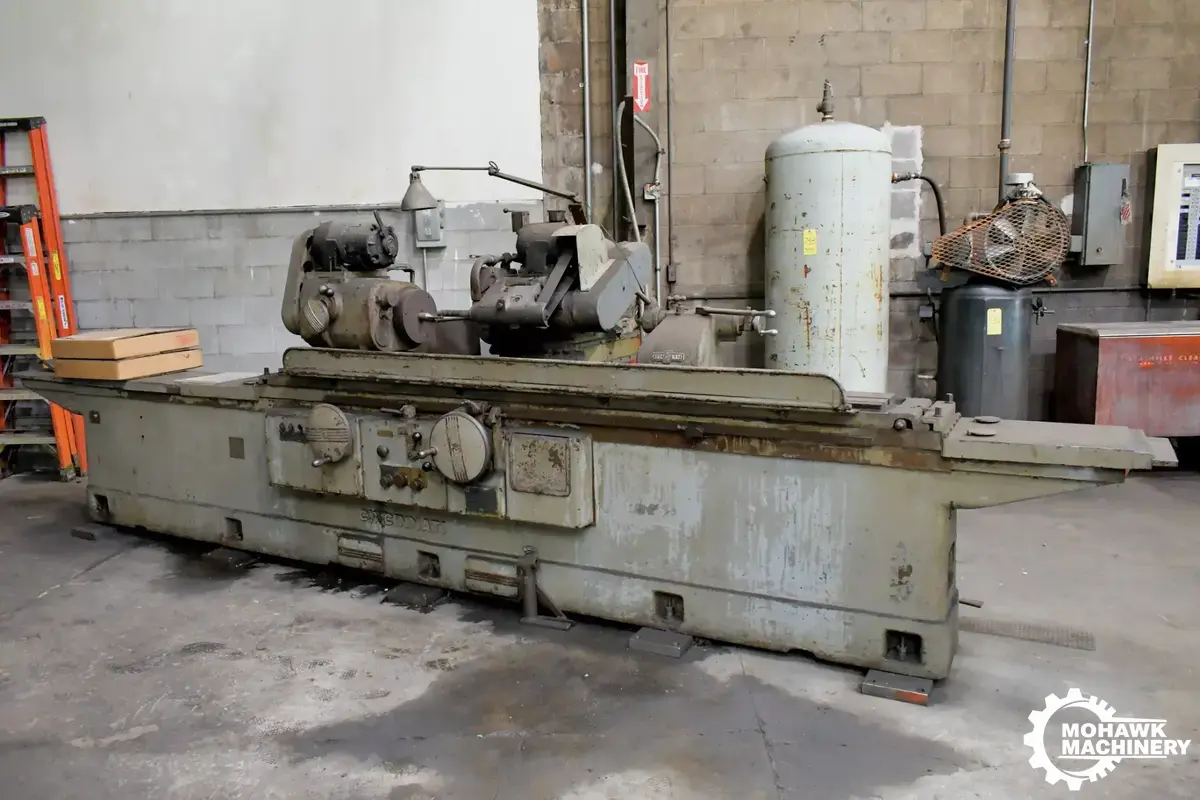

18" x 72" CINCINNATI “ER” UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER

18” x 72” CINCINNATI UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER

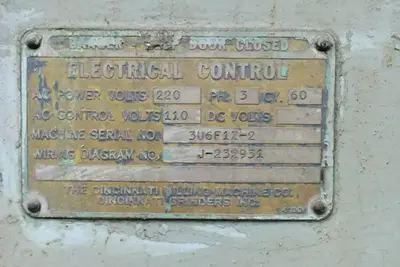

Serial No 3U6F1Z-2, Model ER

EQUIPPED WITH:
Internal Grinding Spindle Attachment (Swing-Down)
Hydraulic Longitudinal Table Feed

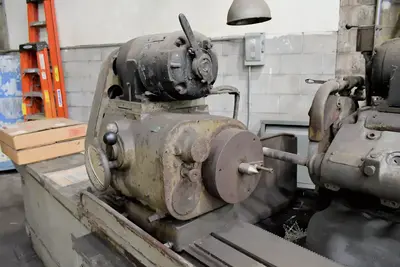

3/4 HP Workhead

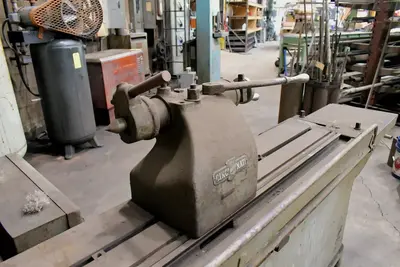

Tailstock Mounted Grinding Wheel Dresser
Extra Grinding Wheels

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 18.9375”
Grinding Diameter, Maximum 18”
Grinding Diameter, Minimum 0
Distance Between Centers, Nominal 72”
Grinding Wheel Diameter, Standard 14”
Grinding Wheel Width, Standard 2”
Grinding Wheel Hole Diameter 5”
Table Swivel Taper, Forward 3” TPF
Table Swivel Taper, Back 1” TPF
Table Swivel Angle, Forward 7-DEGREES
Table Swivel Angle, Back 2-DEGREES
Headstock Swivel, Forward 90-DEGREES
Headstock Swivel, Back 30-DEGREES
Workhead Spindle Speeds, Range 25 to 225 RPM
Table Longitudinal Feeds, Infinite 3 to 220 IPM
Automatic In-Feed At Table Reversal, Range .0004 TO .014 IPR
Grinding Wheelhead Spindle Motor, Horsepower 5 HP
Internal Grinding Spindle Motor, Horsepower 2 HP
Hydraulic Motor, Horsepower 1.5 HP
Floor Space Required, L x D 19’9” x 5’9”
Weight Approximately 11000 LBS

F.O.B. OUR WAREHOUSE
