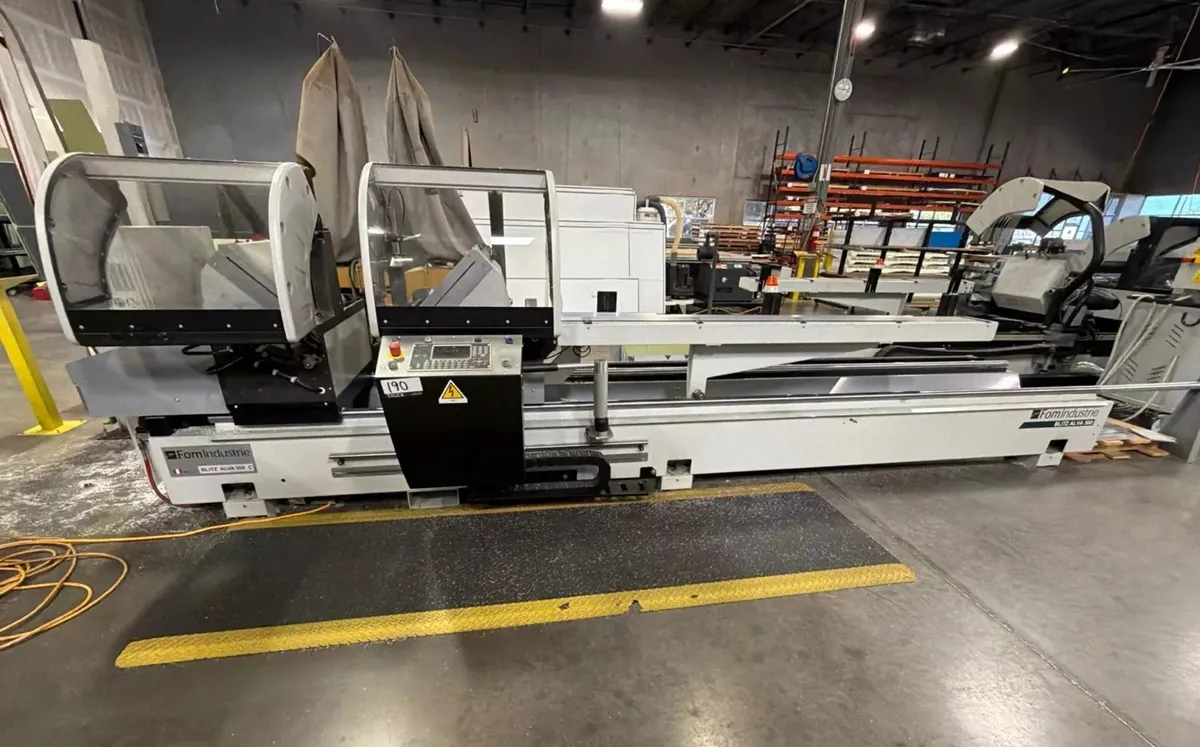

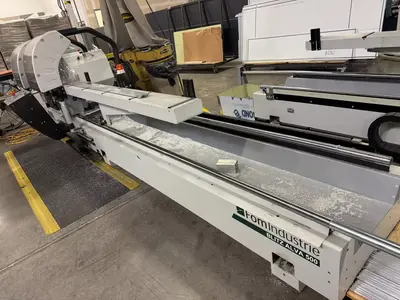

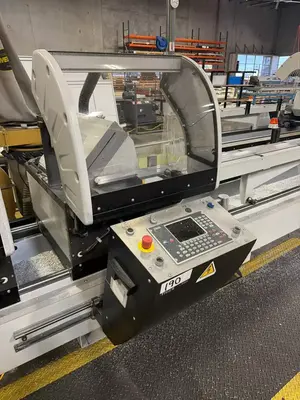

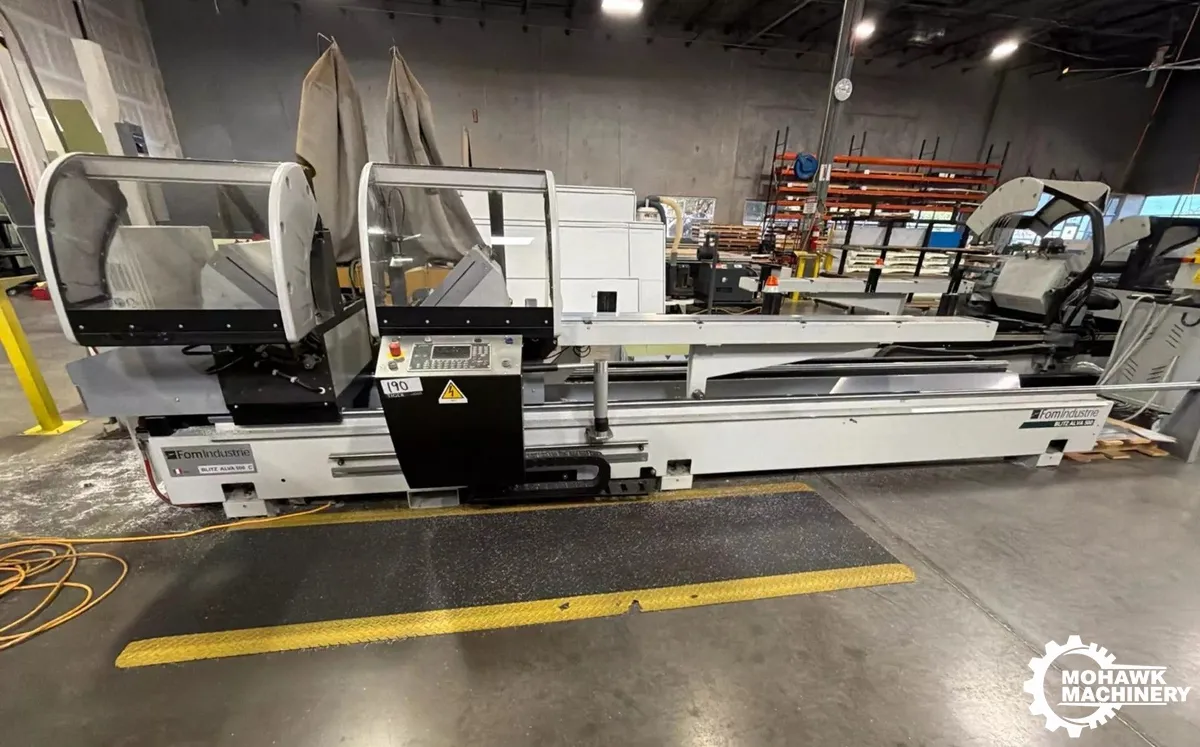

550MM (21.6”) x 4M (157.5”) FOM INDUSTRIES “BLITZ ALVA 550 THETA” CNC DOUBLE HEAD MITER SAW - 2024

550MM (21.6”) x 4M (157.5”) FOM INDUSTRIES DOUBLE-END MITER SAW

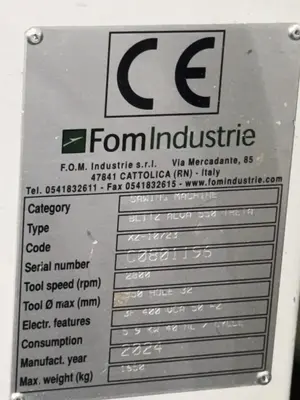

New 2024, Serial No C0801196, Code XZ-10723
Model BLITZ ALVA 500C, Type BLITZ ALVA 550 THETA

EQUIPPED WITH;

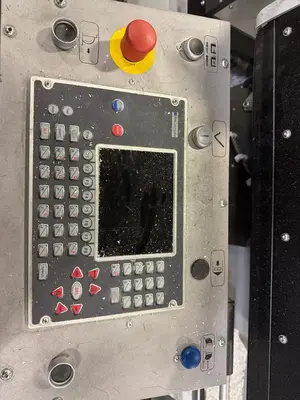

15” TEX Touchscreen Monitor Control

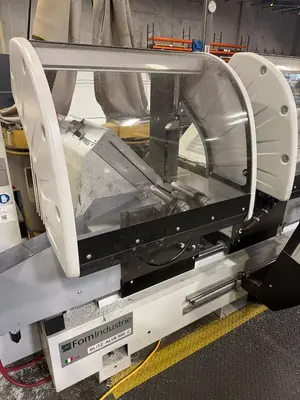

Fixed 3 HP (2.2 kW) First Saw Blade Head - Movable 3 HP (2.2 kW) Second
Saw Blade Head w/Automatic Positioning
Electronically Controlled Axis Head Tilting
Hydraulic Tungsten Carbide Blade Feed (Adjustable Blade Exit Feed - Quick Return)
(3) Pneumatic Horizontal Vises - (2) Pneumatic Vertical Vises

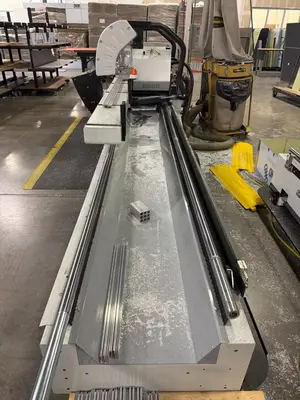

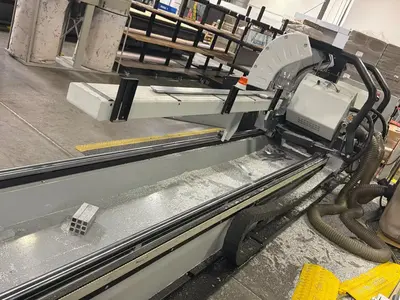

98.5” (2.4M) Movable Head Roller Table

CATALOG SPECIFICATIONS:
Tungsten Carbide Blades, Diameter 21.6” 550MM
Tungsten Carbide Blades, Hole Diameter 1.25” 32MM
Working Length Capacity, Maximum 157.5” 4M
Working Length Capacity, Minimum 14.5” 370MM
Tilting Of Heads Around Horizontal Axis, Range 22.5 to 90-DEGREES
Blade Speed 2800 RPM
Air Consumption Per Work Cycle 40NC/CYCLE
Working Pressure 7 BAR
(2) Saw Blade Motors, Horsepower 3 HP 2.2 kW (EACH)
Overall Length 225” 5700MM
Overall Width 78.75” 2000MM
Overall Height 79.1” 2010MM
Weight, Approximately 3700 LBS 1680 KGS

NOTE: Saw Is Primarily Designed For High Precision Angular
And Length Cutting Of Industrial, Window, Door, And Facade
Aluminum or PVC Profiles. Complex Angles Is Handled By
Performing Cuts From 90-Degrees Down to 22.5 Degrees Outward
(And Intermediate Angles) With Computerized Precision Via
Numerical Control. Automated Production By Importing Cut List
Via USB Or Network Interface For Optimization In Manufacturing
Environments.

F.O.B. ON WAY IN
