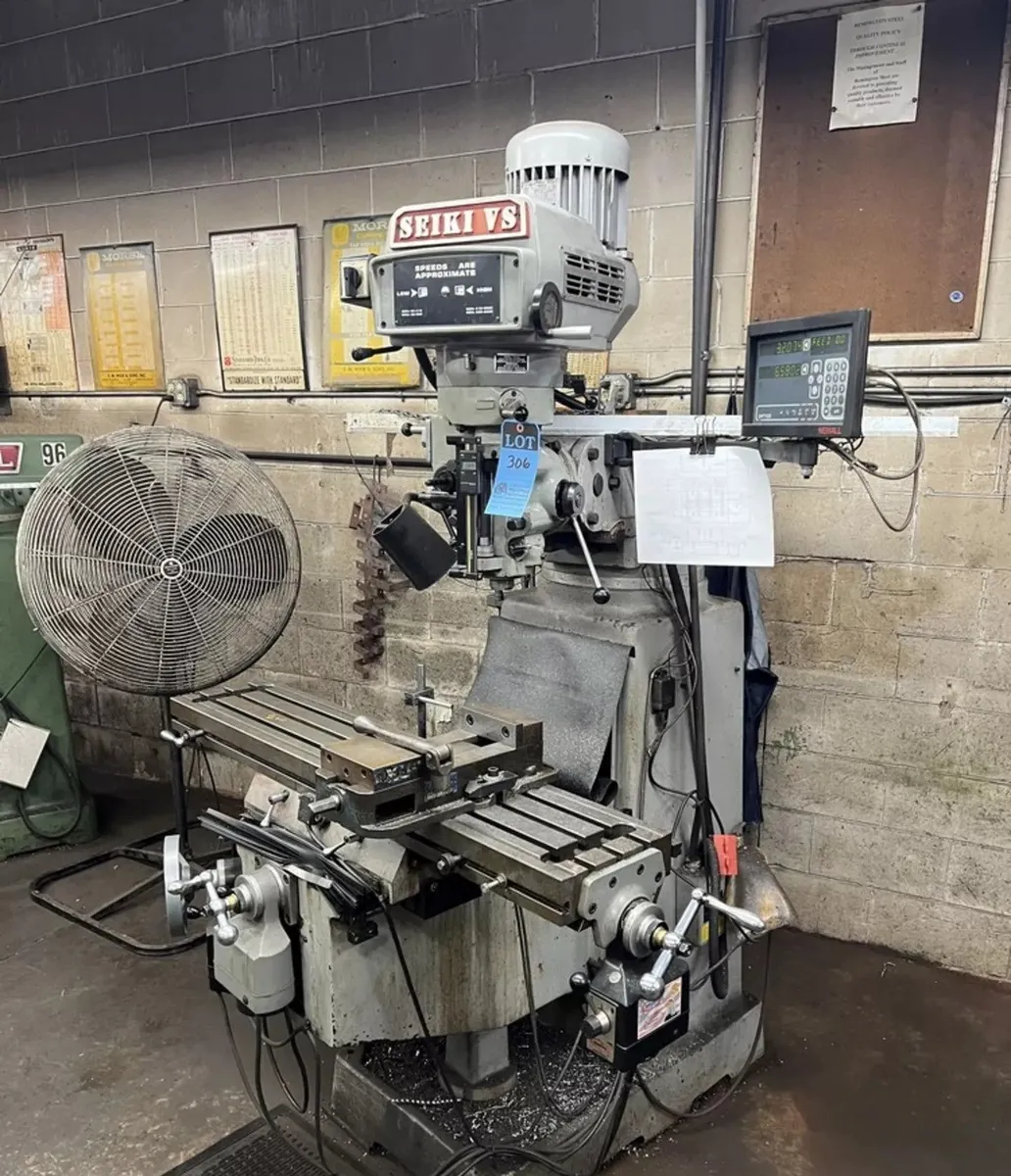

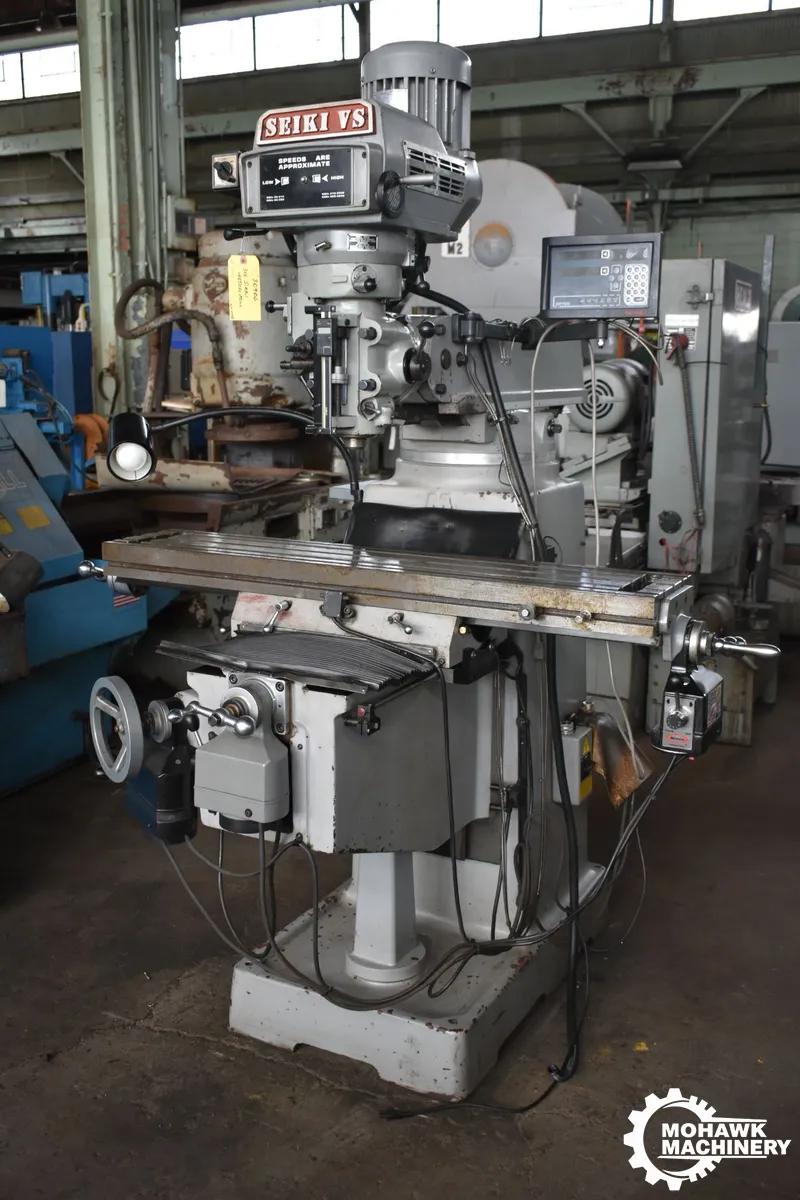

3 HP SEIKI “3VS” VERTICAL MILL w/NEWALL DIGITAL READOUTS - 2011

3 HP SEIKI "3VS" VERTICAL MILL w/DIGITAL READOUTS
New 2011, Serial No 12949, Model 3VS,

EQUIPPED WITH:
Newall "DP700" 2-Axis Digital Readouts
Power Longitudinal Table Feed (Inoperable)
Power Cross Table Feed
Power Down-Feed to Quill
One Shot Lubrication System
Vise

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 36"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Ram Travel 24"
Quill Travel 5"
Workpiece Weight Capacity, Maximum 750 LBS
Quill, Diameter 3.375"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4200 RPM
Power Quill Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower 3 HP
Weight, Approximately 3400 LBS

F.O.B. ON WAY IN
