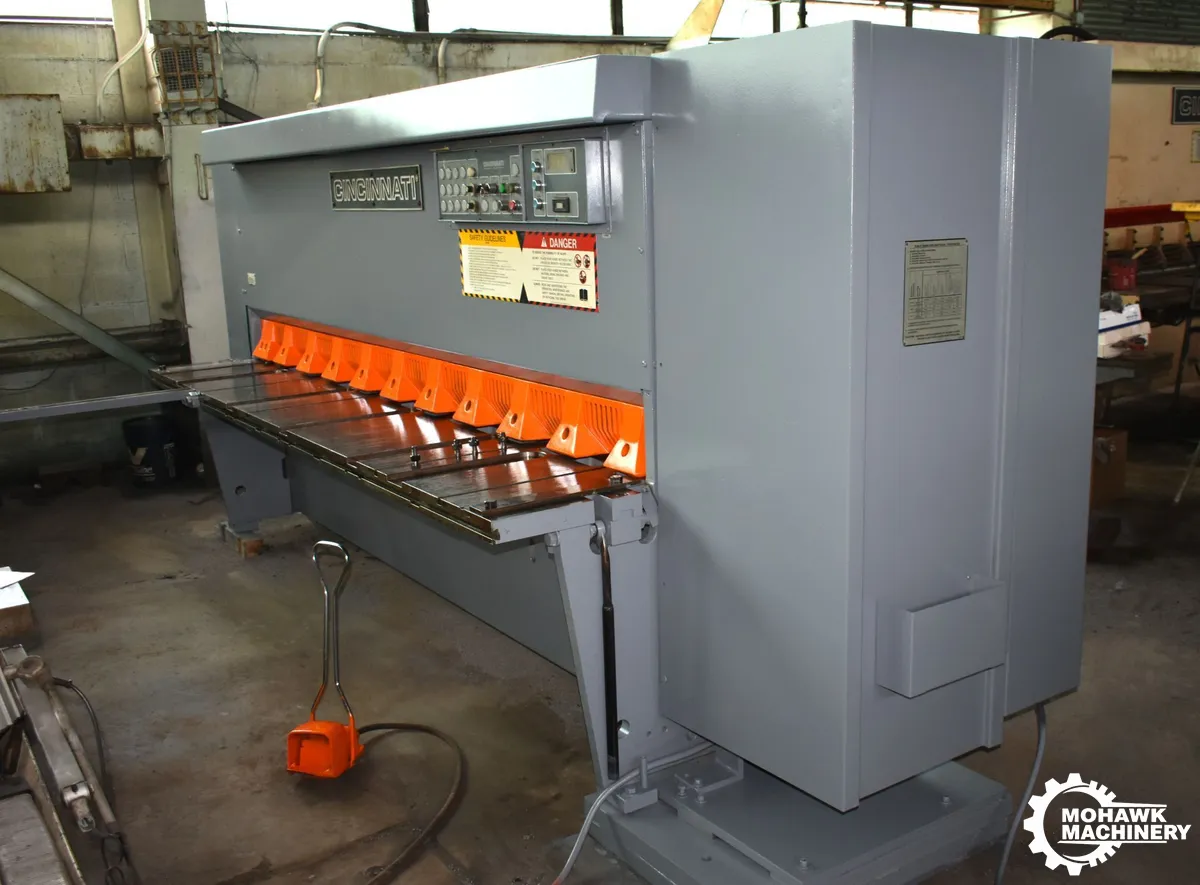

10’ x 1/4” CINCINNATI-INC “250HSX10FT” HYDRAULIC POWER SQUARING SHEAR

10' X 1/4" CINCINNATI-INC HYDRAULIC
POWER SQUARING SHEAR
Serial No 53629, Model 250HSx10FT,

EQUIPPED WITH:
Cincinnati-Inc Standard Shear Control Center
36" Front Operated Power Back Gauge
Squaring Arm - Front Support - Foot Pedal
(12) Hydraulic Holddowns

CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 10' X 1/4"
Material Thickness, Minimum 26 GA
Cutting Length, Maximum 122-3/4”
Knife Size 1 x 3 x 126
Maximum Rake, In/Ft .375 IPF
Total Hold-Down Pressure 8.5 TONS
Distance Under Hold-Down 0.5"
Strokes Per Minute, Maximum 70 SPM
Strokes Per Minute, Minimum 32 SPM
Main Motor, Horsepower 25 HP
Electrical System 230-460/3/60
Overall Dimensions, L x W 172” x 87”
Overall Height 73”
Weight, Approximately 16600 LBS

F.O.B. ON WAY IN
