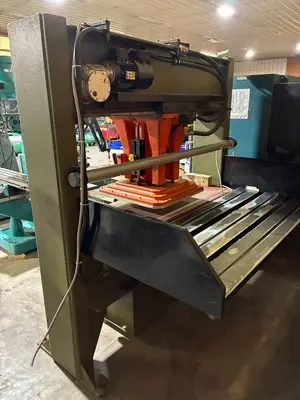

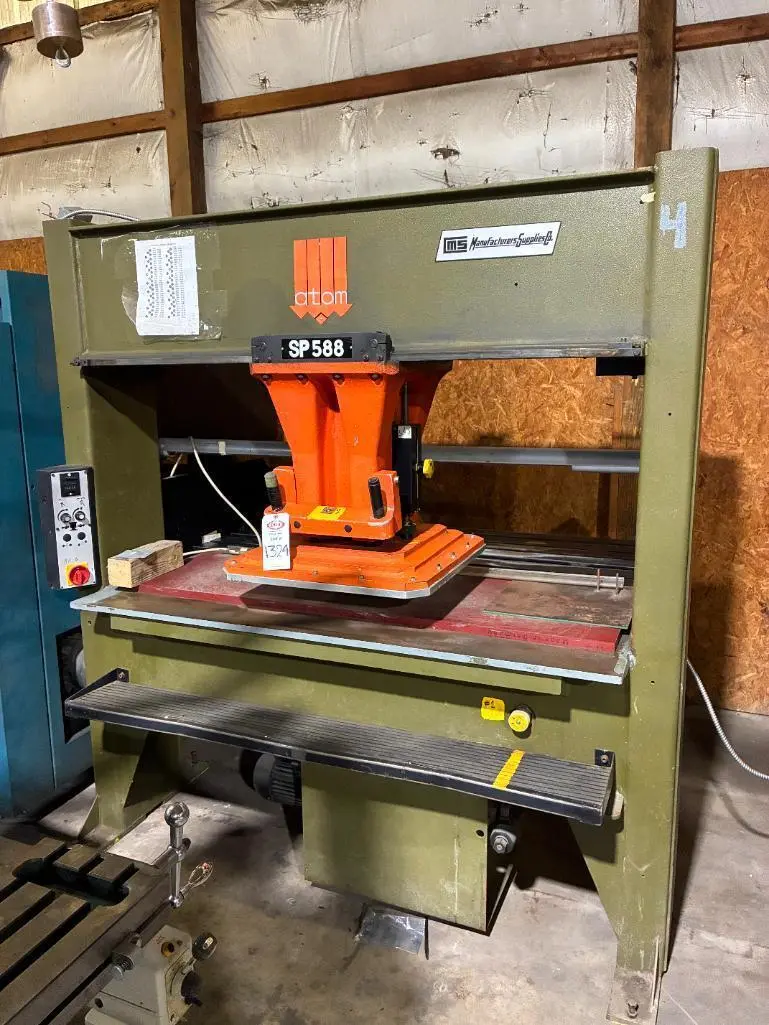

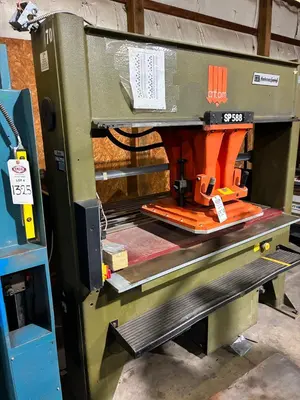

40 TON ATOM “SP588/40” TRAVELING-HEAD HYDRAULIC DIE CUTTING CLICKER PRESS

40 TON ATOM MANUFACTURERS SUPPLIES TRAVELING-HEAD
HYDRAULIC DIE-CUTTING/CLICKER PRESS

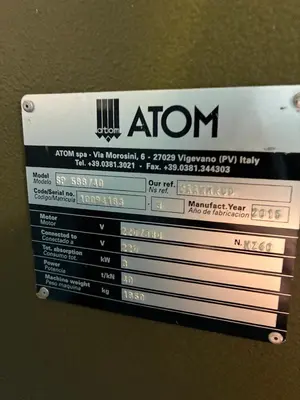

New 2015, Serial No 10094183-3, Model No SP588/40

EQUIPPED WITH:
Synchronized Controls w/Programmable Cut Counting
Dynamic Head Braking System

CATALOG SPECIFICATIONS:
Cutting Pressure, Maximum 40 TONS 392 kN
Cutting Head Size, L x W 25.6” x 25.6"
Cutting Head Size, L x W 650 MM x 650 MM
Cutting Working Surface, L x W 63" x 25.5"
Cutting Working Surface, L x W 1600 MM x 650 MM
Cutting Stroke, Variable to 6” 150 MM
Daylight Opening
Overall Dimensions, L x W 86.6" x 52.75"
Overall Dimensions, L x W 2200 MM x 1350 MM
Overall Height 82.7"
Overall Height 2100 MM
Weight Approximately 4070 LBS 1850 KG

NOTE: This Machine Was Designed To Cut Leather, Textiles,
Plastic, Cardboard, Rubber, ETC..

F.O.B. OUR WAREHOUSE
