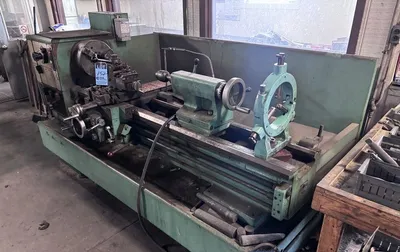

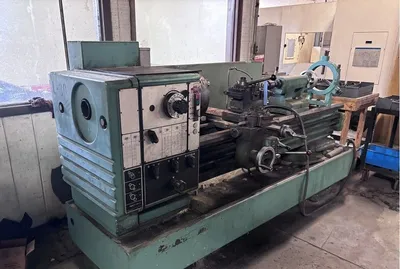

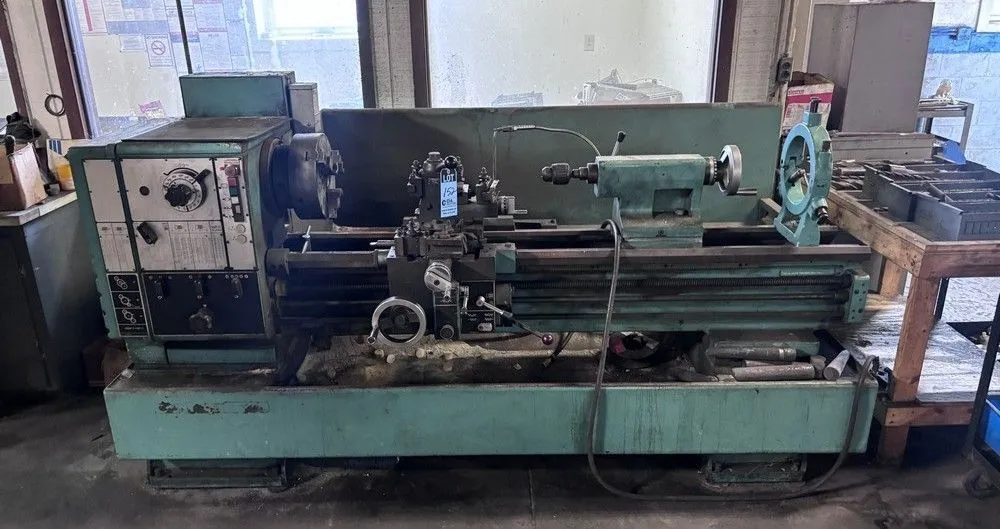

21" X 60" HARRISON "M500" GAP-TYPE ENGINE LATHE w/TAPER

21"/28.75" x 60" HARRISON GAP-TYPE ENGINE LATHE
w/TAPER ATTACHMENT

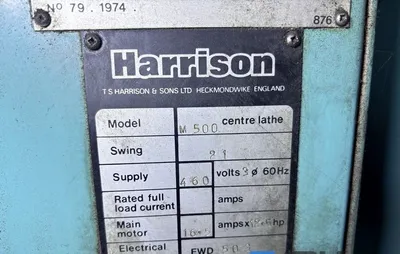

Serial No, Model M500, Series "GAP-TYPE"

EQUIPPED WITH:
Taper Attachment
Threading (Inch-Metric Full-Length Lead Screw

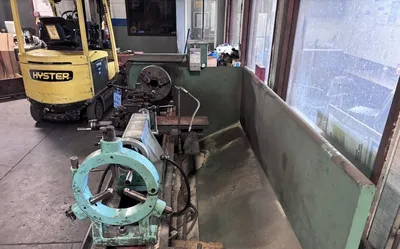

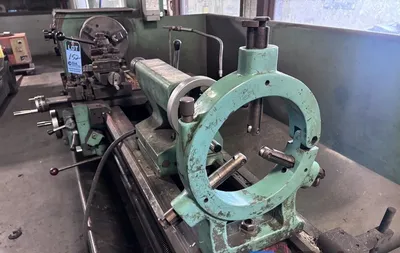

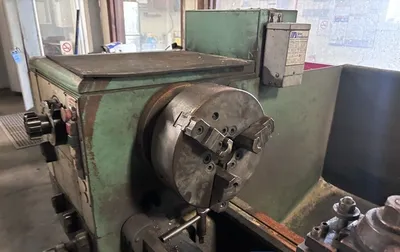

3-Jaw Chuck w/Jaws - Steady Rest

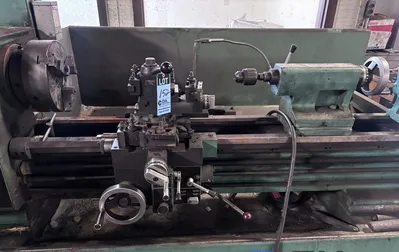

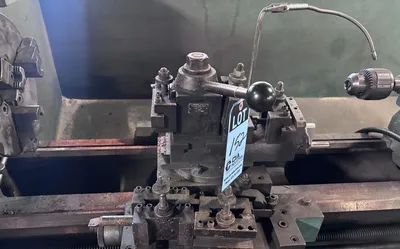

#D1-8 Camlock Spindle - 4-Way Tool Post w/Holders
Induction Hardened Bed Ways
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.125"
Swing Over Bed Ways, Rated 21"
Swing Thru Gap, Rated 28.75"
Swing Over Cross-Slide 14.5"
Distance Between Centers 60"
Cross Slide Travel 10"
Top-Slide Travel 4.75"

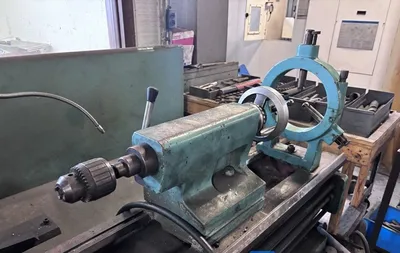

Tailstock, Quill Diameter 2.875"
Tailstock, Spindle Travel 6.125"
Tailstock, Spindle Taper #5 MT

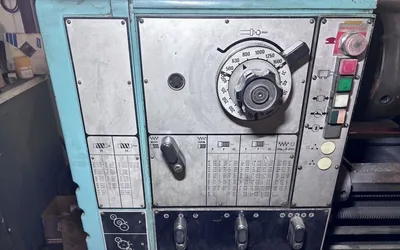

(18) Spindle Speeds, Range 31 to 1600 RPM
Carriage Longitudinal Feeds, English .0016 to .028 IPR
Carriage Longitudinal Feeds, Metric .04 to .71 MMPR
Cross-Slide Cross Feeds, English .0008 to .014 IPR
Cross-Slide Cross Feeds, Metric .02 to .355MMPR
(38) Inch Thread Changes, Range 2 to 72 TPI
(35) Metric Thread Changes, Range .2 to 14 MM PITCH
(27) Diametral Thread Changes, Range 8 to 72 DP
(18) Modular Thread Changes, Range .2 to 3.5 MOD
Motor Horsepower 12.5 HP
Weight Approximately 4750 LBS

F.O.B. ON WAY IN
