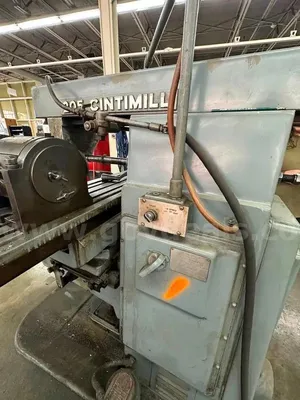

205-12 CINCINNATI MILACRON "CINTIMILL" UNIVERSAL HORIZONTAL MILL w/UNIVERSAL DIVIDING HEAD
Have one to sell?
ConditionUsed
1 available
$7,950.00 USD
205-12 CINCINNATI MILACRON "CINITIMILL" UNIVERSAL HORIZONTAL MILL - Cincinnati Universal Dividing Head - 45-Degree Swiveling Table - Arbor - Arbor Support - Coolant System (Built-In)
205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL
HORIZONTAL MILL w/CINCINNATI UNIVERSAL DIVIDING HEAD
Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL"
EQUIPPED WITH:
Cincinnati Universal Dividing Head
Knee Motor - Bijur One Shot Lube System
Arbor Support & Arbor - Built-In Backlash Eliminator
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 52.75"
Table Longitudinal Travel (X-Axis) 28"
Table Swivel, Range 45-DEGREES R & L
Saddle In-Out Cross Travel (Z-Axis) 10"
Knee Vertical Travel (Y-Axis) 14"
Spindle Taper #50 NSTD
(32) Spindle Speeds, Range 40 to 1800 RPM
(12) Longitudinal and Cross Feeds 1/2 to 30 IPM
(12) Vertical Feeds, Range 1/4 to 15 IPM
Power Rapid Traverse, Long & Cross 85 IPM
Power Rapid Traverse, Vertical 42.5 IPM
Spindle Motor, Horsepower 5 HP
Feed Motor, Horsepower 1 HP
Floor Space Required, W x D 8' x 7'
Weight, Approximately 4050 LBS

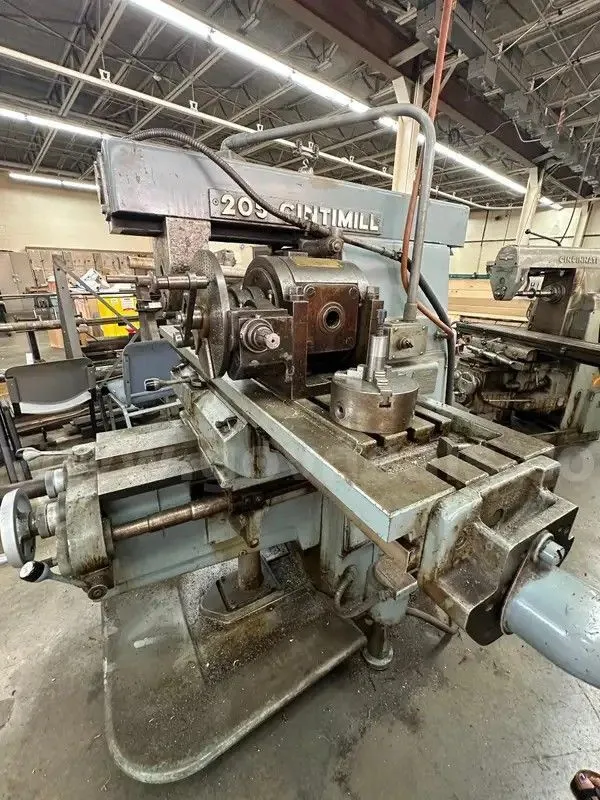

NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE.
F.O.B. OUR WAREHOUSE
205-12 CINCINNATI MILACRON "CINITIMILL" UNIVERSAL HORIZONTAL MILL - Cincinnati Universal Dividing Head - 45-Degree Swiveling Table - Arbor - Arbor Support - Coolant System (Built-In)
Imperial
| Table Size-W | 12" |
| Table Size-L | 52.75" |
| Travel-Long | 28" |
| Travel-Cross | 10" |
| Travel-Vert | 14" |
| Power | 5 hp |
| RPM | 1,800 RPM |
| Taper | 50 NSTD |
| Dimensions | 97" x 85" |
| Weight | 4050 LBS |
205-12 CINCINNATI-MILACRON "205 CINTIMILL" UNIVERSAL
HORIZONTAL MILL w/CINCINNATI UNIVERSAL DIVIDING HEAD
Serial No 55302U5V-0020, Model 205-12, Series "CINTIMILL"
EQUIPPED WITH:
Cincinnati Universal Dividing Head
Knee Motor - Bijur One Shot Lube System
Arbor Support & Arbor - Built-In Backlash Eliminator
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 52.75"
Table Longitudinal Travel (X-Axis) 28"
Table Swivel, Range 45-DEGREES R & L
Saddle In-Out Cross Travel (Z-Axis) 10"
Knee Vertical Travel (Y-Axis) 14"
Spindle Taper #50 NSTD
(32) Spindle Speeds, Range 40 to 1800 RPM
(12) Longitudinal and Cross Feeds 1/2 to 30 IPM
(12) Vertical Feeds, Range 1/4 to 15 IPM
Power Rapid Traverse, Long & Cross 85 IPM
Power Rapid Traverse, Vertical 42.5 IPM
Spindle Motor, Horsepower 5 HP
Feed Motor, Horsepower 1 HP
Floor Space Required, W x D 8' x 7'
Weight, Approximately 4050 LBS
NOTE: CHUCK IN THE PHOTO IS NOT INCLUDED WITH THIS MACHINE.
F.O.B. OUR WAREHOUSE
