360 TON G. RABOLINI “IMPERIA D cm85X120” HEAVY-SUTY” CLAMSHELL DIE CUTTING PRESSed

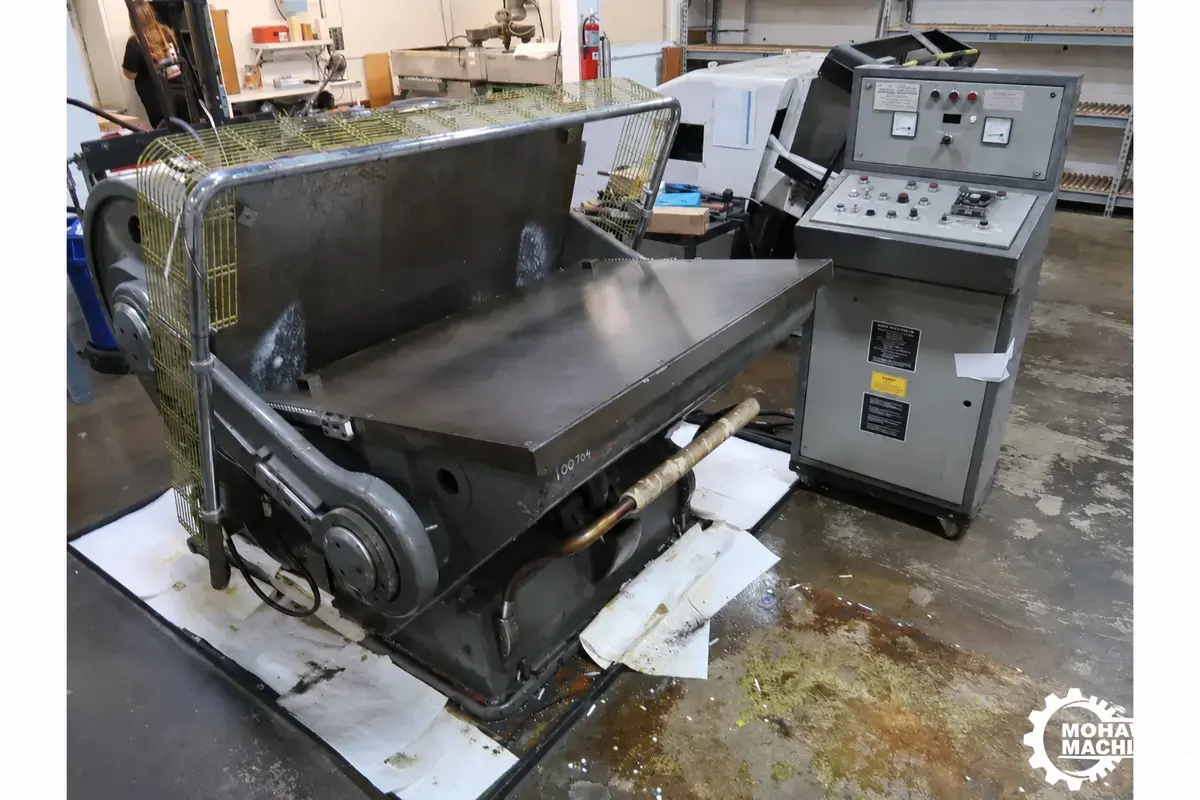

350 TON G. RABOLINI “IMPERIA” HEAVY-DUTY CLAMSHELL DIE CUTTING PRESS
Serial No 8101-551, Type IMPERIA, Model D cm85x120

EQUIPPED WITH:
Control Console
Air Clutch & Brake
Dwell Timer
Cast Iron Construction

CATALOG SPECIFICATIONS:
Pressing Capacity, Maximum 360000 KG
Pressing Capacity, Maximum 360 TONS
Sheet Size, Maximumn 120CM x 85CM
Sheet Size, Maximum 47.2” x 33.5”
Moveable Platen Dimensions, L x W 124CM x 85.5CM
Moveable Platen Dimensions, L x W 48.8” x 33.5”
Thickness Capacity Maximum, Corrugated Board .236” 6CM
Strokes Per Hour 1200 SPH
Motor Horsepower/KW Rating 9.2 HP/6.9 KW
Motor RPM 2550 RPM
Overall Dimensions 85” x 152” x 98.5”
Overall Dimensions 215CM x 385CM x 250CM
Weight Approximately 13600 LBS 6000 KG

NOTE: This Machine Was Designed To Cut And
Crease And Emboss Board Sheets Including Cardboard,
Corrugated, Microwave, Hollow Plastic Board, PP, PVC,
PE, ETC.

F.O.B. OUR WAREHOUSE
