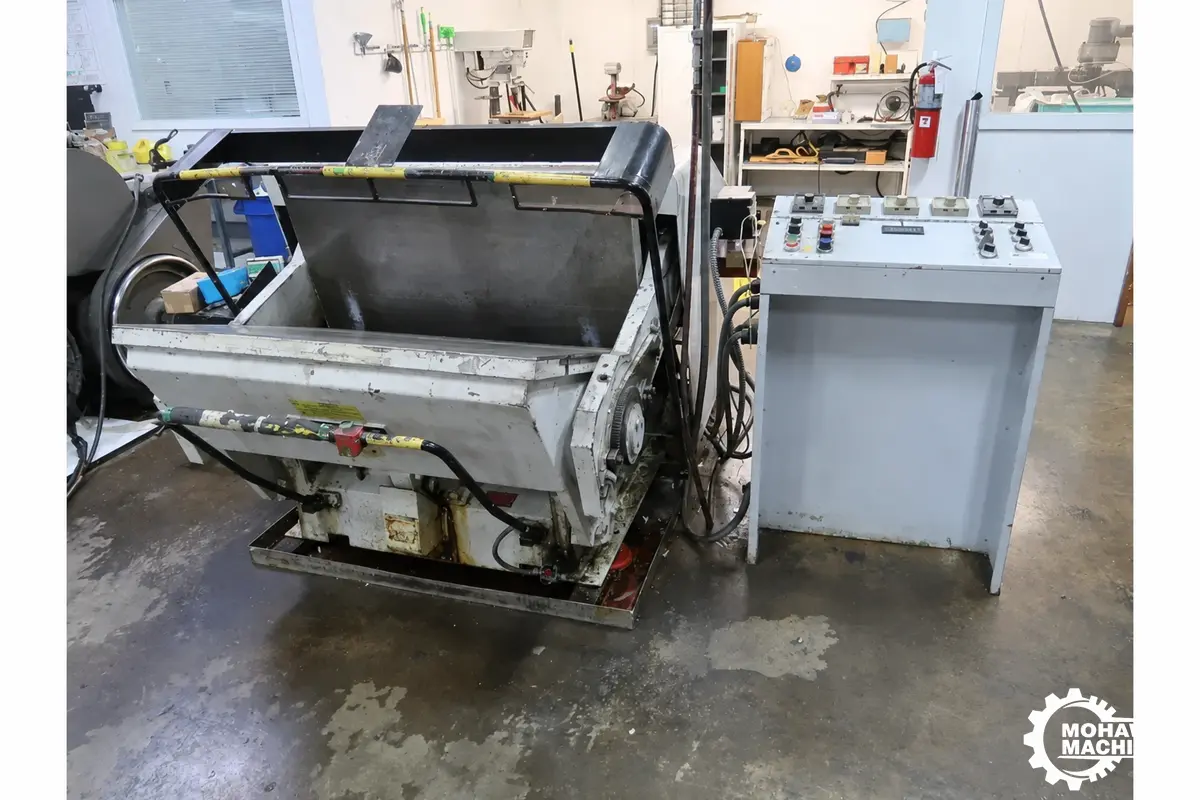

80 TON STANDARD “33X47” CLAMSHELL DIE CUTTING PRESS

80 TON STANDARD CLAMSHELL DIE-CUTTING PRESS
W/HEATED PLATEN
Model 33X47

EQUIPPED WITH:
Heated Platen
Control Console w/(5) Timers
Air Clutch & Brake
Eaton Dynamic Vari-Speed Drive
Bijur Automatic Lubrication System

CATALOG SPECIFICATIONS:
Tonnage Capacity, Approximately 80 TONS
Inside Chase Dimensions, L x W 47” x 35.25
Outside Chase Dimensions, L x W 46.75” x 33.87”
Cutting Area Approximately, Lx W 47” x 33”
Vari-Speed Drive Motor Horsepower 7.5 HP
Vari-Drive RPM Rating, Range 0 to 1695 RPM
Electrical System 230-460/3/60

NOTE; These Specifications Are As Taken From Previous
Owners Records And A Close Physical Inspection Of The
Machine However We Could Not Find The Model Or Serial
Number On The Machine.

F.O.B. OUR WAREHOUSE
