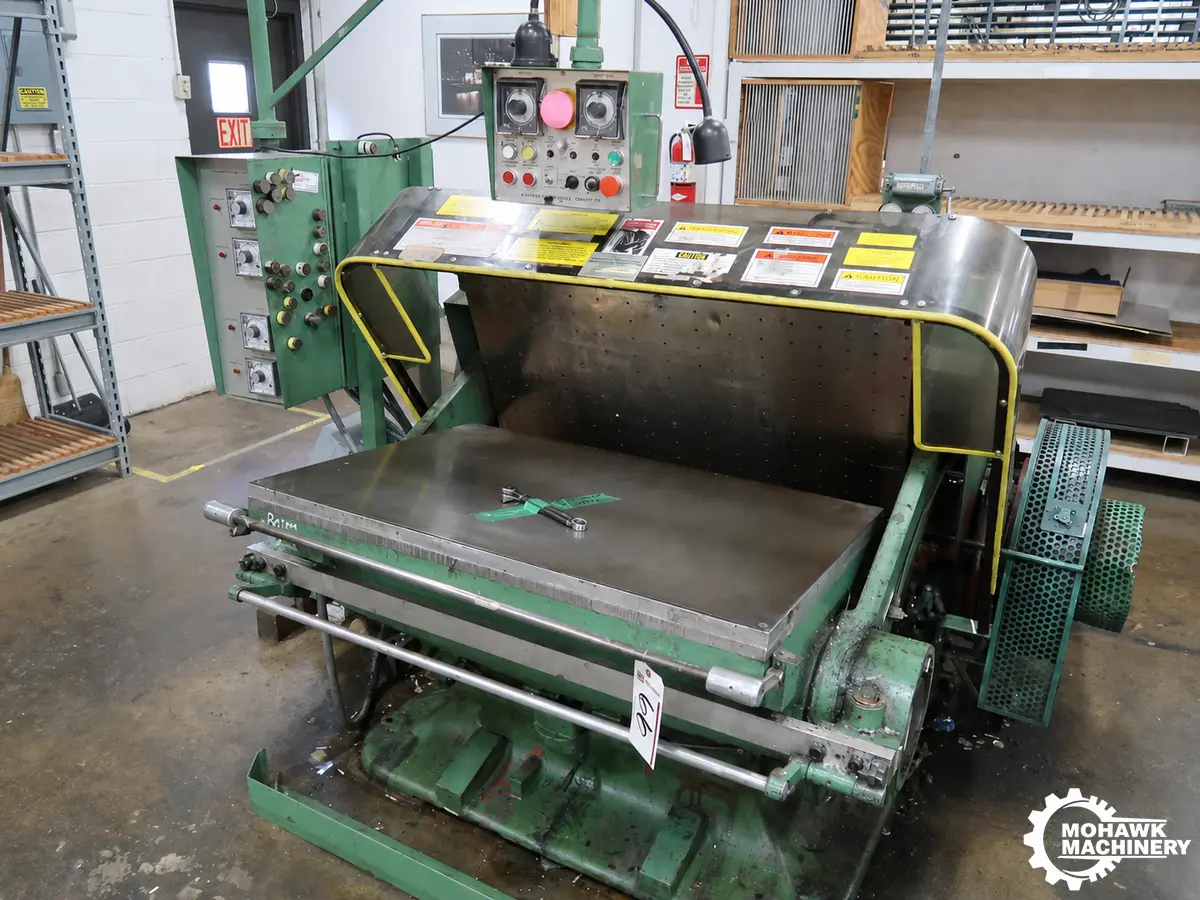

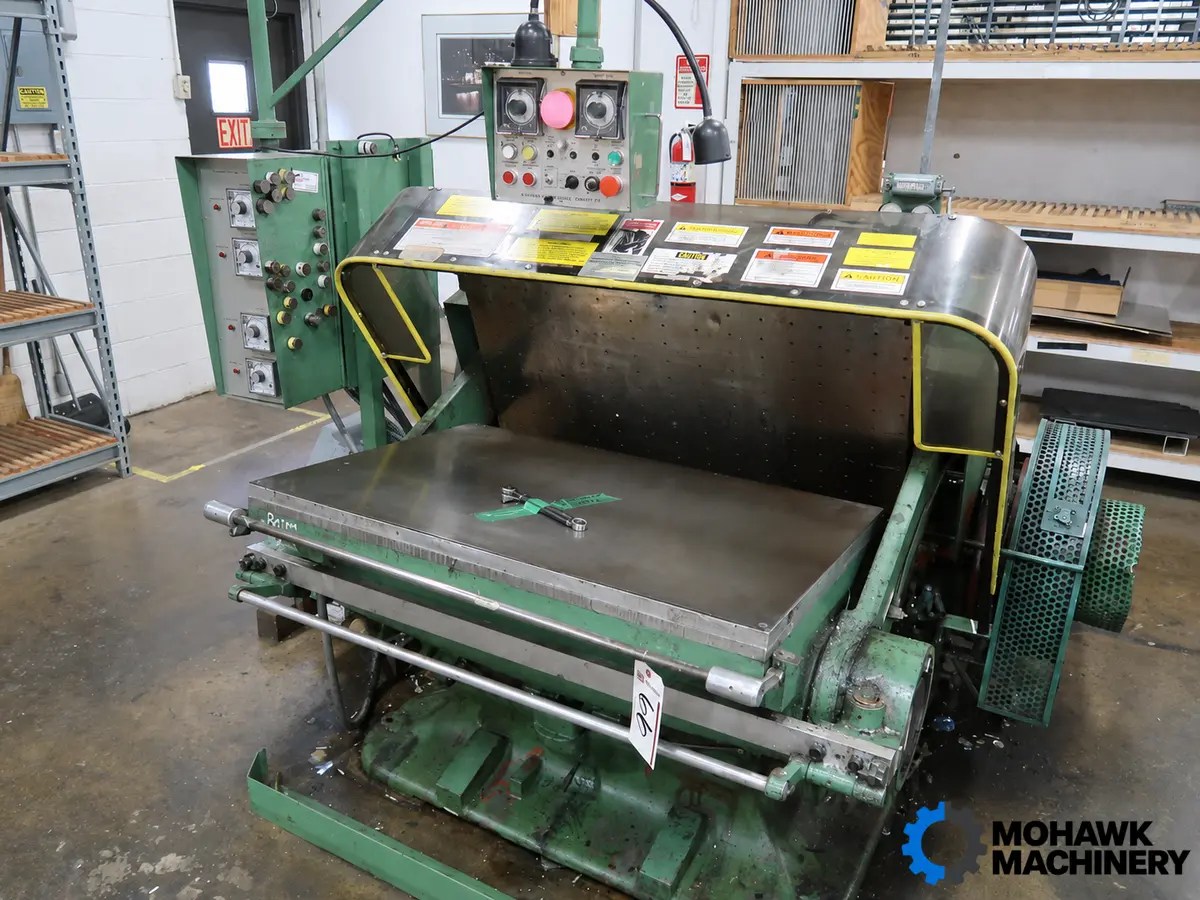

100 TON THOMSON NATIONAL "28X41" CLAMSHELL-DESIGN HEATED-PLATEN DIE CUTTING & CREASING PRESS

100 TON THOMSON-NATIONAL "28X41" CLAMSHELL-DESIGN HEATED-PLATEN
DIE CUTTING & CREASING PRESS
Model 28X41, Style 11.8 B.D

EQUIPPED WITH:
Heated Platen w/4 Zones
Minster Combination Air Clutch & Brake (S/N 24-1580)
Dual Micrometer Impression
Compound Gearing - Live Flywheel
Single - Continuous & Automatic Cycle Operation
5 HP Marathon Vari Drive Unit
Overhead Swing-Around Control Panel
Impress & Open Dwell Timers

CATALOG SPECIFICATIONS:
Tonnage Capacity 100 TON
Inside Chase Dimensions, L x W 41" x 28"
Outside Chase Dimensions, L x W 44" x 31"
Cutting Area Maximum, L x W 41.25" x 28.375"
Sheet Size Maximum, L x W 45" x 31"
Practical Rate Of Operation 20 to 30 IPM
Floor Space Required, W x 98" x 84"
Overall Height 78"
Weight Approximately 9150 LBS

NOTE: This Press Is Hand Fed Machine Designed To Be
Used For The Manufacture Of Paper, Corrugated And
Fiber Boxes, Display Cutout, Paper Toys, Gaskets,
Greeting Cards, Automobile Door And Body Panels,
And Many Other Products Of The Paper Products Industries.

F.O.B. OUR WAREHOUSE
