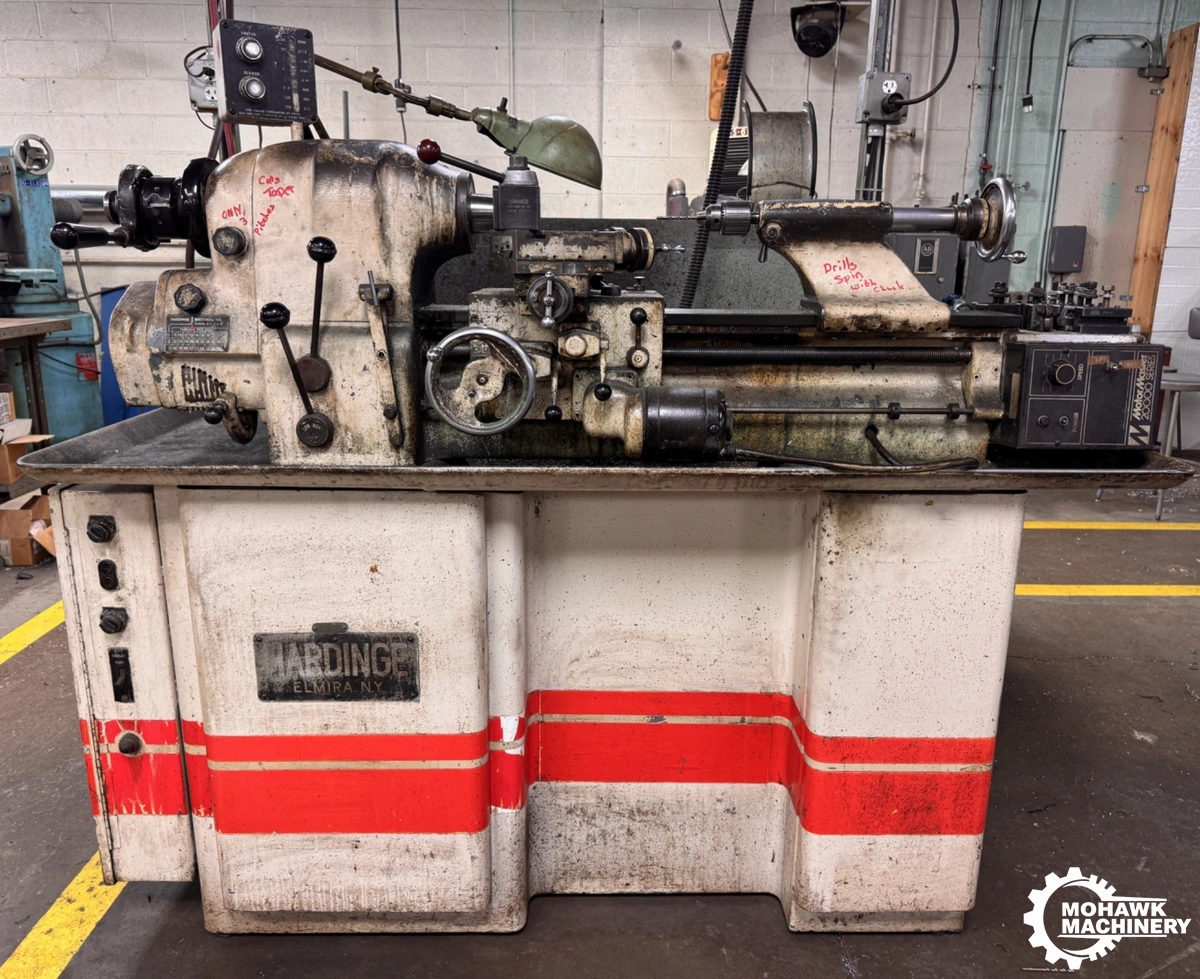

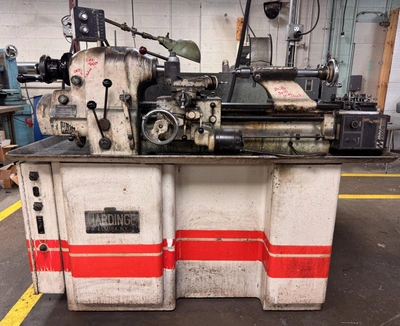

HLV HARDINGE "TOOLMAKERS" PRECISION LATHE

HLV HARDINGE "TOOLMAKERS" PRECISION LATHE
Serial No , Model HLV

EQUIPPED WITH:
Threading Capabilities Thru Precision Gear Box

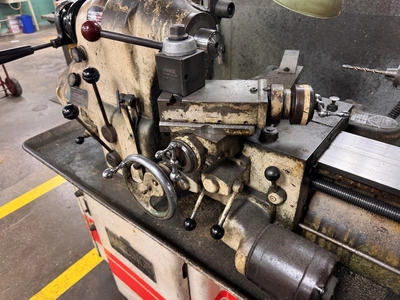

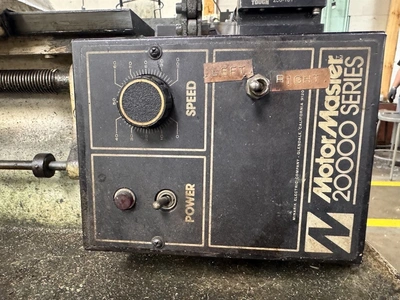

Power Electric Feed to Cross-Slide & Carriage (Motor Master 2000)

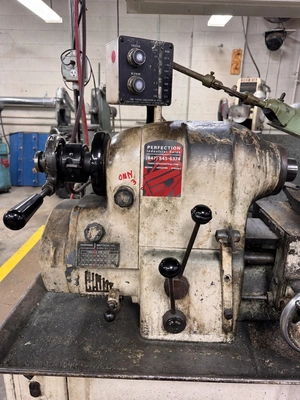

Infinitely Variable Spindle Speed Headstock

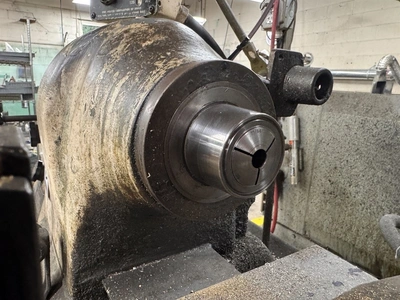

Quick Collet Closer (Lever Type) - 5" 3-Jaw Chuck
Dovetail Bed w/Hardened & Ground Steel Ways
Gusher Coolant System (Built-In)

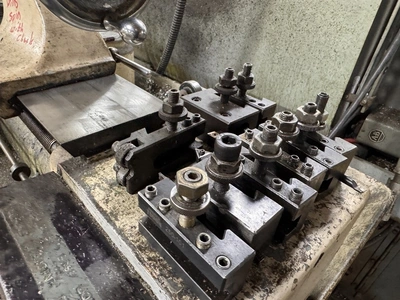

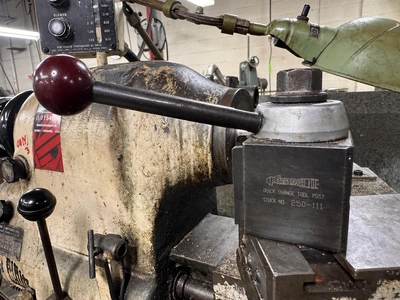

Tailstock - Tool Post - Tool Holders - Collets ETC

CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.25"

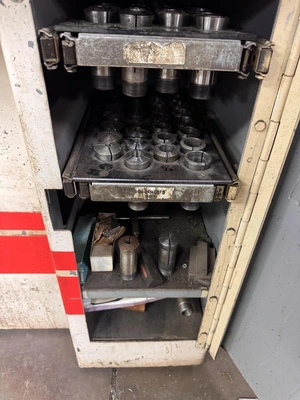

Collet Capacity (#5C Hardinge), Round 1.0625"
Collet Capacity (#5C Hardinge), Hexagon .875"
Collet Capacity (#5C Hardinge), Square .750"
Swing Over Bed Ways, Rated 11"
Swing Over Carriage 9"
Swing Over Cross-Slide 6"
Distance Between Centers 18"
Compound Slide Travel 3"

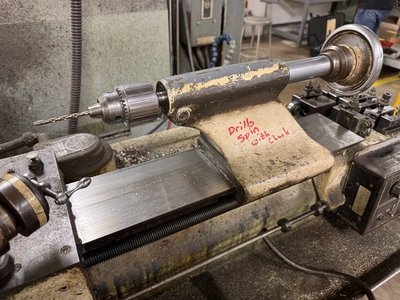

Tailstock Spindle Taper #2 MT
Tailstock Spindle Diameter 1.375"
Tailstock Spindle Travel 3.75"
Spindle Speeds, Variable Range 125 to 3000 RPM
Carriage Longitudinal Feeds (Z-Axis) 5/16 to 7 IPM
Cross-Slide Cross Feeds (X-Axis) 3/16 to 4 IPM
(27) Thread Changes, Range 11 to 108 TPI
Spindle Motor, Horsepower 1 HP
Weight, Approximately 1700 LBS

F.O.B. OUR WAREHOUSE
