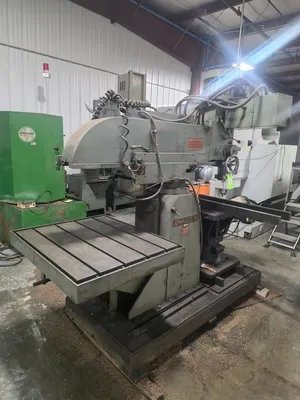

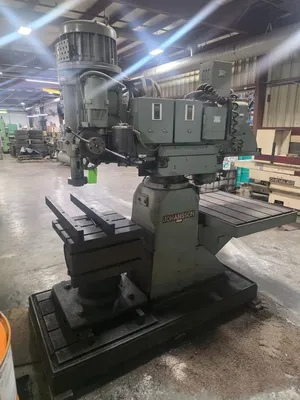

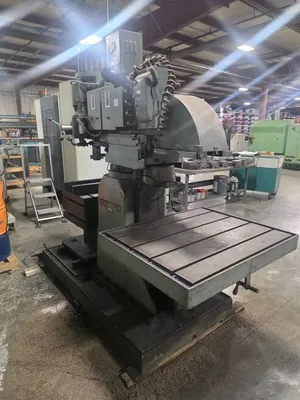

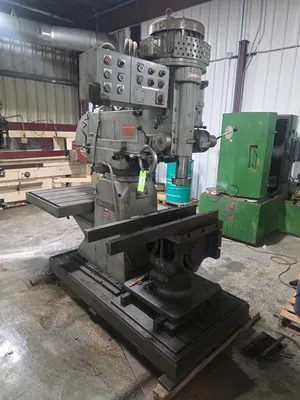

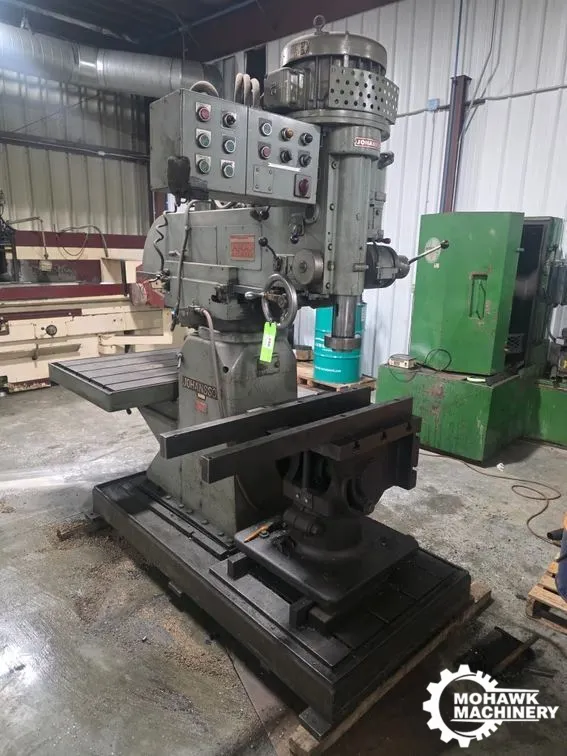

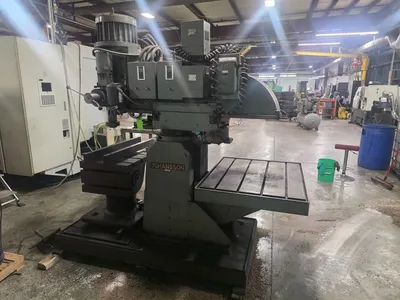

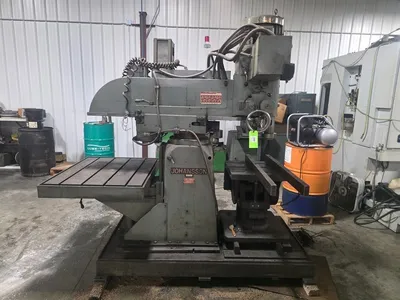

3'12" JOHANSSON HEAVY-DUTY RADIAL ARM DRILL w/UNIVERSAL BOX TABLE

3'12" JOHANSSON HEAVY-DUTY "SLIDING-RAM" RADIAL DRILL
Serial No. 51045

NOTE: This Machine is Designed to Process Large Parts
on the Machine Base, Then Rotate the Radial Arm 180
Degrees to Run Smaller Parts on the Adjustable Table.

EQUIPPED WITH:

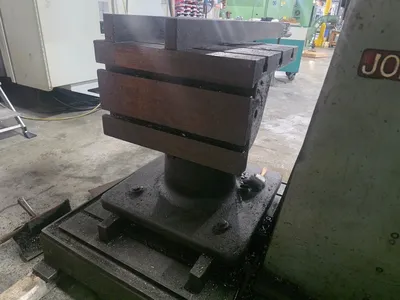

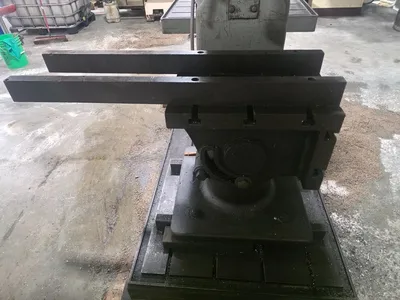

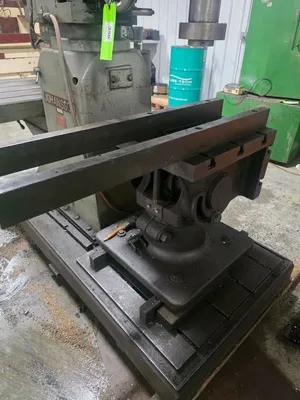

Universal Swiveling Box Table

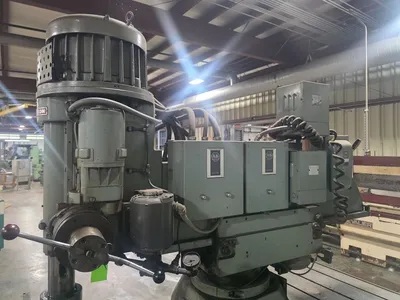

Power Ram Travel, Independently Motorized
Power Elevation of Ram and Drill Head

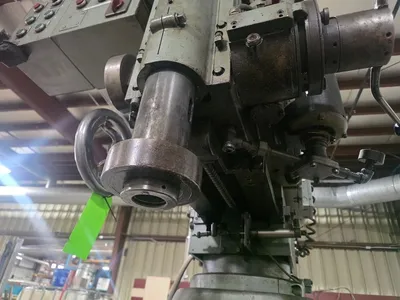

Power Down feed of Spindle - Coolant System

CATALOG SPECIFICATIONS:
Arm Length 3'

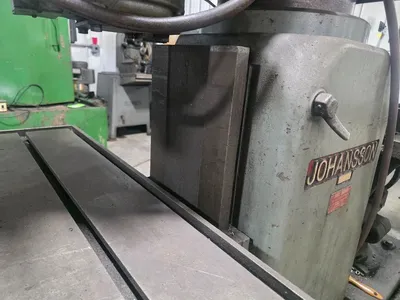

Column Diameter 12"

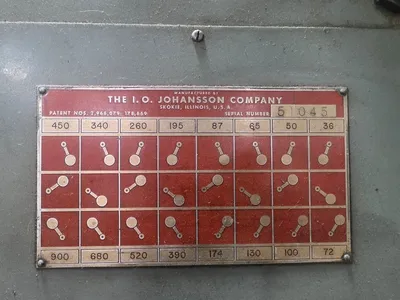

(16) Spindle Speeds, Range 36 to 900 RPM
Spindle Power Feeds, Infinitely Variable 0 to 12 IPM
Spindle Taper #5 MT
Drills to Center of Circle 8'
Distance, Spindle to Base, Maximum 54"
Distance, Spindle to Base, Minimum 32"
Distance, Spindle to Table, Maximum 32"
Distance, Spindle to Table, Minimum 4"
Spindle Radius, Maximum 46"
Spindle Radius, Minimum 18"
Vertical Spindle Travel in Head 10"
Horizontal Ram Travel 29"
Working Surface of Base, L x W 32" x 28"

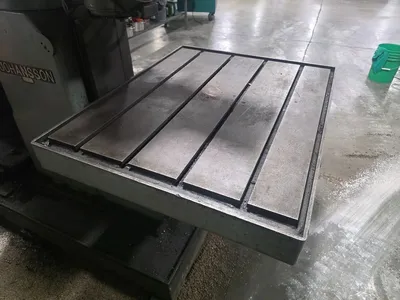

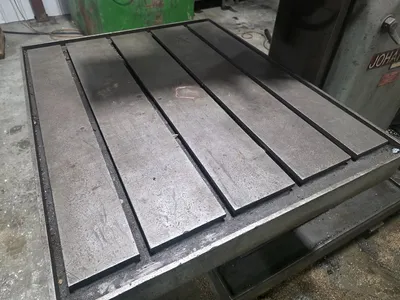

Working Surface of Table, L x W 40" x 32"

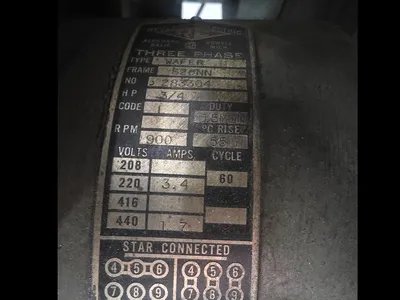

Motor, Horsepower 5/2.5 HP
Height Floor to Top Of Head, Maximum 94"

F.O.B OUR WAREHOUSE
