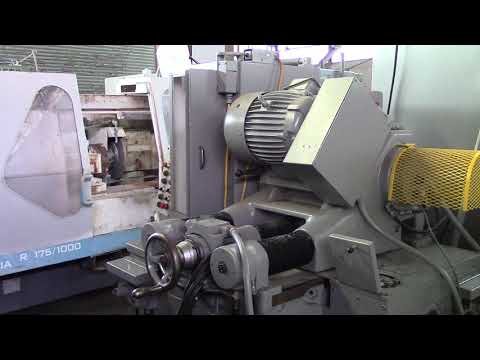

24” GLEASON “516” HYPOID SPIRAL BEVEL GEAR LAPPER - 24” MAXIMUM GEAR DIAMETER - 12” MAXIMUM PINION DIAMETER - HYDRAULIC CHUCKING

MODEL NO. 516 GLEASON HYPOID SPIRAL BEVEL GEAR LAPPING MACHINE
SERIAL NUMBER 649409
SUITABLE FOR LAPPING OF AUTOMOTIVE AND TRUCK
SPIRAL BEVEL AND HYPOID GEARS AND PINIONS
OPERATING AT A 90-DEGREE SHAFT ANGLE WITH
GEAR DIAMETERS UP TO 24" (609MM)

EQUIPMENT / FEATURES:
EDDY CURRENT BRAKE
HYDRAULIC POWER SUPPLY UNIT W/ACCUMULATOR
HYDRAULIC CHUCKING UNIT BOTH HEAD S(LESS DRAW-IN BARS)
POWER MOVEMENT OF DRIVE HEAD IN AND OUT
AUTOMATIC PRESET BACKLASH
DRIVE HEAD SPINDLE BORE 3-39/32" DIA. X 39/64" TAPER
BRAKE HEAD SPINDLE BORE 2-19/64" DIA. X .5" TAPER
SPECIAL LAPPING GUARDS FOR 24" DIAMETER
SPC (SWING-PINION-CONE) FEATURE, 3-WAY OSCILLATION
FOR PINION HEAD
FULL COMPLEMENT OF ELECTRICS (MOTORS/CONTROLS) FOR
50/60 CYCLE

PRINCIPAL SPECIFICATIONS:
( BASIC CAPACITIES )
Maximum gear diameter 24" (609mm)
Maximum pinion diameter 12" (304mm)
Offset of gear spindle above or below
center of pinion spindle (maximum) 6" (152mm)
( PINION SPINDLE )
Diam of taper hole at large end 3-29/32" (99.2mm)
Taper per foot 39/64" (15.478mm)
Depth of taper 3" (73.5mm)
Diameter of hole through spindle 3.740" (94.996mm)
( GEAR SPINDLE )
Diam of taper hole at large end 2-19/64" (58.34mm)
Taper per foot ½" (12.7mm)
Depth of taper 3" (76.2mm)
Diameter of hole through spindle 2.167" (55.04mm)
( ELECTRICAL EQUIPMENT) 60 CYCLE 50 CYCLE
Main Motor, 5 HP 1800 RPM 1500 RPM
Hydraulic Motor, ¾ HP 1800 RPM 1500 RPM
Lapping Compound Pump Motor,1 HP 1200 RPM 1000 RPM
Oscillating Drive Motor, ¼ HP 0 to 1725 RPM
( MISCELLANEOUS )
Floor Space 85"x82" 216cmx208cm
Height 82" 208cm
Net Weight (Approx) 11,200 lbs 5,080 kg

Price: F.O.B. OUR WAREHOUSE
Maximum gear diameter: 24" (609MM)
Maximum pinion diameter: 12" (304MM)
Center of pinion spindle (maximum): 6" (152MM)
Diam of taper hole at large end: 2-19/64" (58.34MM)
Taper per foot: ½" (12.7MM)
Depth of taper: 3" (76.2MM)
Diameter of hole through spindle: 2.167" (55.04MM)
( electrical equipment): 60 CYCLE 50 CYCLE
Main motor, 5 hp: 1800 RPM 1500 RPM
Hydraulic motor, ¾ hp: 1800 RPM 1500 RPM
Lapping compound pump motor,1 hp: 1200 RPM 1000 RPM
Floor space: 85"X82" 216CMX208CM
Height: 82" 208CM
Net weight (approx): 11,200 LBS 5,080 KG
