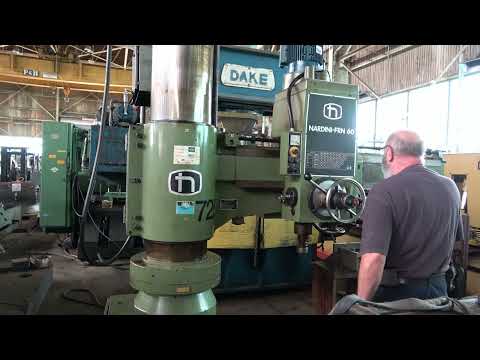

5'15" NARDINI "FRN-60" RADIAL DRILL w/TAPPING & THREADING - PLAIN BASE - 10 HP SPINDLE - COOLANT IN BASE

5'15" NARDINI RADIAL DRILL

Model FRN-60

EQUIPPED WITH:

Tapping/Threading Capabilities

Plain-Type Base

Power Arm Elevation

Power Clamping

Hardened Column

Coolant System (Built-In)

CATALOG SPECIFICATIONS: INCH METRIC

Arm Length 5'

Column Diameter 15" 380MM

Drilling Capacity, Solid Steel 2.36" 60MM

Drilling Capacity, Cast Iron 3.15" 80MM

Boring Capacity, Steel 3.94" 100MM

Boring Capacity, Cast Iron 4.72" 120MM

Tapping Capacity, Mild Steel 1.97" 50MM

Tapping Capacity. Cast Iron 2.75" 70MM

Spindle-Radius, Maximum 63" 1600MM

(12) Spindle Speeds, Range 29 to 1450 RPM

Main Motor, Horsepower 10 HP

Arm Elevating Motor, Horsepower 2 HP

Electrical System 220/3/60

F.O.B. OUR WAREHOUSE
