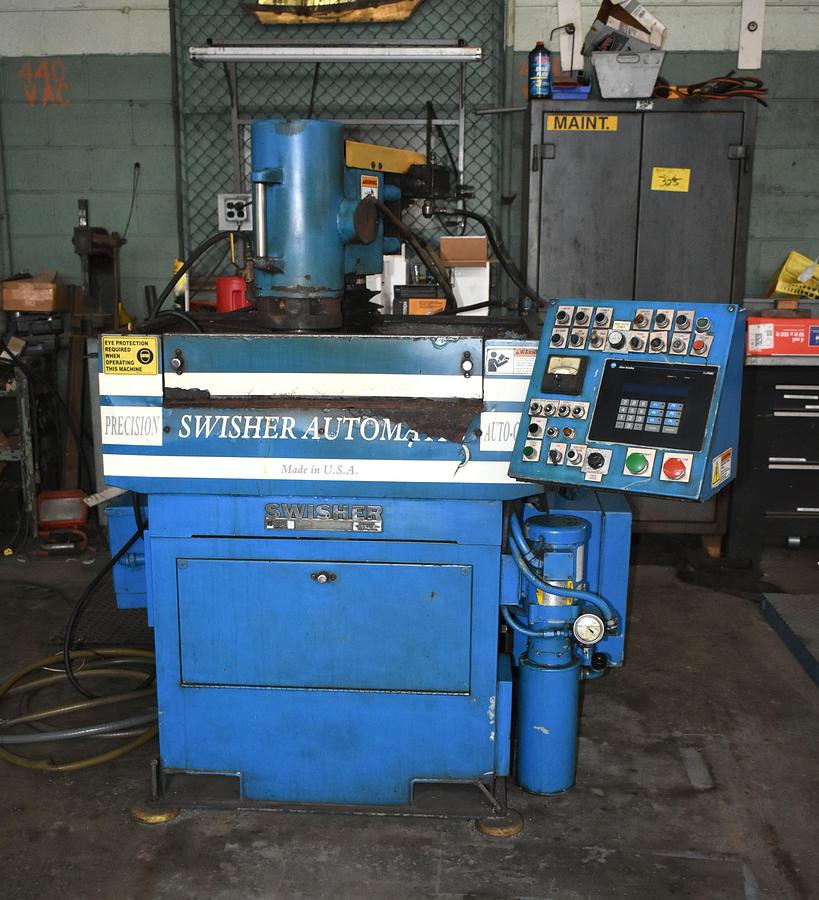

16" SWISHER/UVT "AUTO-CYCLE" PRECISION VERTICAL SPINDLE ROTARY SURFACE GRINDER w/ALLEN BRADLEY PLC CONTROL - VARIABLE SPEED SPINDLE - COOLANT SYSTEM

16" SWISHER/UVT "AUTO-CYCLE" PRECISION AUTOMATIC

VERTICAL-SPINDLE ROTARY SURFACE GRINDER

Serial No 0509-R435, Model A/C Rotary, Series Auto-Cycle

EQUIPPED WITH:

Allen Bradley "RediPanel" PLC Control

15.75" Diameter Electro-Magnetic Chuck

Variable Spindle Speed To 3600 RPM

Closed Loop Servo-Motor Fed Grinding Spindle

Dual Velocity Distance Dwell And Wheel Compensation

A/B Programming Switch Holds Two Sets Of Parameters Allowing

Two-Sided Grinding

Coolant System (Tank & Gusher Pump)

CATALOG SPECIFICATIONS:

Magnetic Chuck Surface, Diameter 15.75"

Height Grinder Base To New Wheel, Maximum 9.5"

Height Under New Wheel To Chuck, Maximum 7.25"

Grinding Wheel Diameter, Maximum 8"

Grinding Wheel Height, Maximum 3"

Grinding Wheel Wall, Maximum 0.5"

Grinding Wheel Back .75"

Grinding Wheel Hole Diameter 3.3"

Grinding Wheel Speed, Variable 0 to 3600 RPM

Grinding Spindle Resolutions .0001"

Spindle Motor, Horsepower 7.5 HP

Coolant Motor, Horsepower 1/6 HP

Overall Dimensions, W x D 56" x 46"

Overall Height 72"

Weight, Approximately 2400 LBS

F.O.B. OUR WAREHOUSE
